CWR Series Marine Horizontal Hot Water Circulating Pump With 15 - 40 Meter Head
CWR Series Marine Horizontal Hot Water Circulating Pump With 15 - 40 Meter Head
Specifications
Brand Name :
Deyuan Marine
Model Number :
DY090504
Certification :
CCS, BV, ABS, DNV, NK
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 pcs/month
Delivery Time :
5-20days
Packaging Details :
Export packing
Casing :
Cast iron , Stainess steel , Bronze
Flow :
8-11 M3/H
Head :
15-40M
Speed :
2900r/min
Power :
1.1-4KW
Type :
Horizontal
Description

CWR Series Marine Horizontal Hot Water Circulating Pump With 15 - 40 Meter Head

Brief description:

CWR series horizontal hot water circulating pump driven by a marine motor , commonly be used for circulation of

boiler hot water (fresh water) on the sea or river shipping. The feeding hot water must not higher than 200℃ , water inlet pressure not higher than 1.6Mpa , cooling water capacity between 0.6M3/h to 1 M3/h and water temperature not higher than 40℃.

The pump rotates clockwise viewed from motor.

Main features:

1. High efficiency

2. Low NPSH values

3. Easy installation/service

4. Specific materials

5. Compact design

Specification:

Type

(50HZ,3phase,380v)main technial parameter

Motor power(kw)

Capacity

(m3/h)

Head

(m)

Speed

(r/min)

NPSHR

(m)

Shaft power(kw)

40CWR-6.5

8

15

2900

3

0.58

1.1

40CWR-6.5A

7

12

2900

3

0.42

0.75

40CWR-4.5

8

25

2900

3

1.10

1.5

40CWR-4.5A

7

22

2900

3

0.87

1.5

40CWR-4.5B

6

18

2900

3

0.63

1.1

40CWR-3.5

8

35

2900

3

1.71

3

40CWR-3.5A

7

32

2900

3

1.42

2.2

40CWR-3.5B

6

28

2900

3

1.12

1.5

50CWR-9

13

15

2900

3

0.94

1.5

50CWR-9A

15

12

2900

3

0.66

1.1

50CWR-6

13

25

2900

3

1.70

3

50CWR-6A

15

22

2900

3

1.32

2.2

50CWR-6B

11

18

2900

3

0.95

1.5

50CWR-4.5

15

35

2900

3

2.57

3

50CWR-4.5A

13

32

2900

3

2.10

3

50CWR-4.5B

11

28

2900

3

1.58

2.2

50CWR-3.5

15

50

2900

3

4.04

5.5

50CWR-3.5A

13

45

2900

3

3.25

4

50CWR-3.5B

11

40

2900

3

2.55

3

More types can be offered,pls contact us for more details.

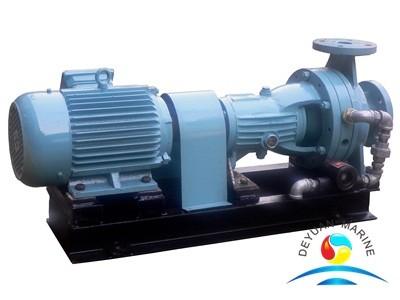

Product's photo:

CWR Series Marine Horizontal Hot Water Circulating Pump With 15 - 40 Meter Head
