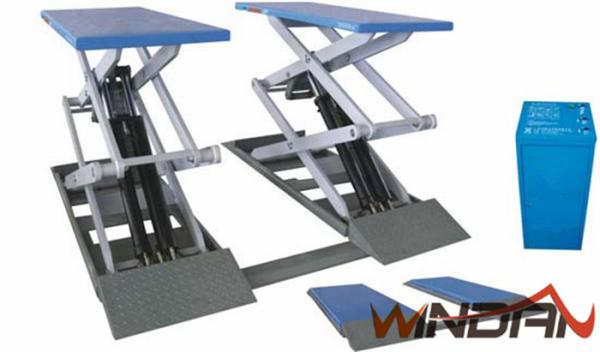

Ultra Thin Structure Hydraulic Car Lift explosion-proof For 3.0T Lifting Capacity
Ultra Thin Structure Hydraulic Car Lift explosion-proof For 3.0T Lifting Capacity
Ultra Thin Structure Hydraulic Car Lift explosion-proof For 3.0T Lifting Capacity
Ultra Thin Structure Hydraulic Car Lift explosion-proof For 3.0T Lifting Capacity
Ultra Thin Structure Hydraulic Car Lift explosion-proof For 3.0T Lifting Capacity
Ultra Thin Structure Hydraulic Car Lift explosion-proof For 3.0T Lifting Capacity
Ultra Thin Structure Hydraulic Car Lift explosion-proof For 3.0T Lifting Capacity
Ultra Thin Structure Hydraulic Car Lift explosion-proof For 3.0T Lifting Capacity
Specifications
Brand Name :
WINDAN
Model Number :
WD 30CB
Certification :
C.E . ISO
Place of Origin :
GUANGZHOU, CHINA
MOQ :
1 SET
Supply Ability :
500sets/month
Delivery Time :
5-7 days
Packaging Details :
Carton and metal export package
Lifting Capacity :
3.0 Ton
Type :
Ultra-thin type
Phase :
1Phor 3Ph
Description

Ultra Thin Structure Hydraulic Car Lift explosion-proof For 3.0T Lifting Capacity


Scissor Lift WD 30CB Feature

1.Oil cylinder built-in explosion-proof device

2. Ultra-thin type structure, only 105mm when fully lowered, requires less space.

3. Surface mounting, ideal for bad ground condition and places that can not be dug.

4. Stable the drive ramp.

6. Double hydraulic system, hydraulic and mechanical lock triple insurance device, machine

double-stage pneumatic insurance device, suitable for different height requirements;

7. Mechanical safety locking with features of automatic engagement and pneumatic release

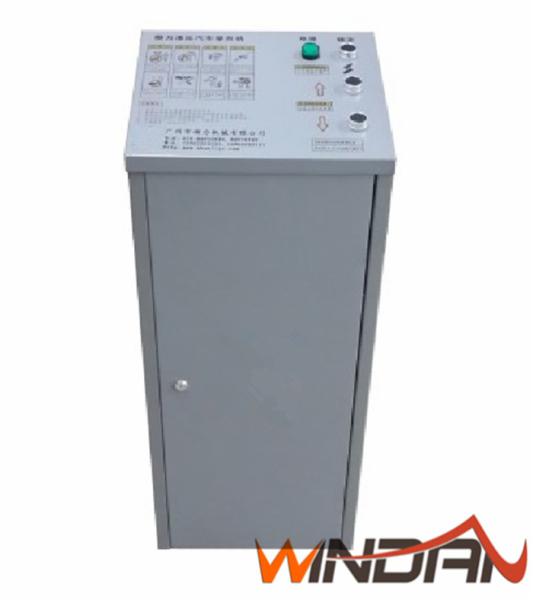

8. All Electronic Components inside controller Box are all imported Italy and German.

Stable and reliable

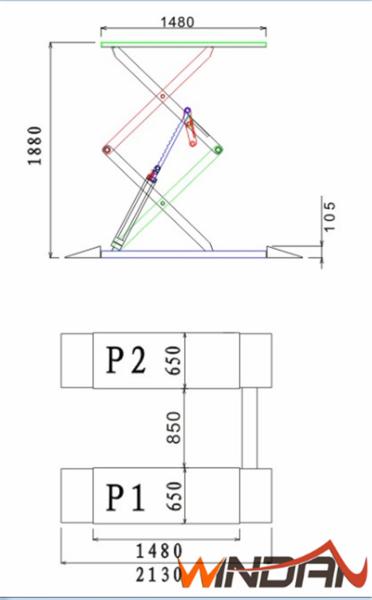

Technical Parameters

Model

WD 30CB

Lifting Capacity

3000kg

Table Length

1480mm

Table Width:

625mm

Fully Lowered Height

105mm

Lifting Height

1880mm

Motor

2.2kw

Power

380V, 220V

Air Pressure

0.4-0.6mpa


Scissor Lift Package




WINDAN Movable Scissor Lift For Customer

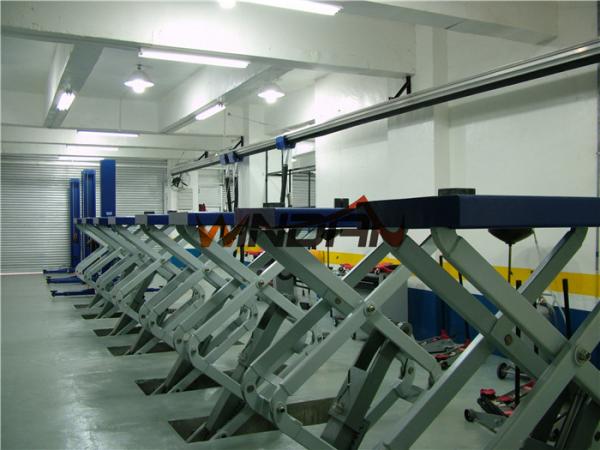

Product in factory


Warranty
All electron component are guaranteed for 12 months from the date of receipt.During warranty damage
are free replacement.Customer bear the expense of freightage.
