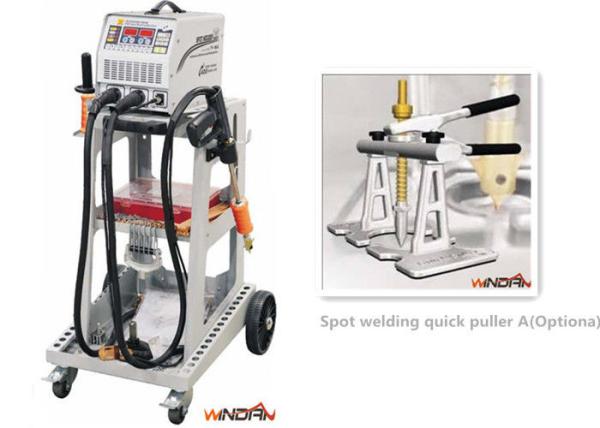

Triangle Washer Welding Car Body Repair Portable Spot Welder Ip21 Protection Grade
Triangle Washer Welding Car Body Repair Portable Spot Welder Ip21 Protection Grade
Specifications
Brand Name :
WINDAN
Model Number :
WD-FY-85A
Certification :
C.E, ISO
Place of Origin :
GUANGZHOU, CHINA
MOQ :
1 set
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
1000 Set/ Month
Delivery Time :
5days after confirm the order
Packaging Details :
Plywood packing
Input Voltage:: :
220V/380V 50/60Hz
Dimensions::: :
42x23x27mm
Colour :
Grey, Yellow
Input Power: :
10KVA
Earth Clamp: :
1 Pc
Description

Triangle Washer Welding Car Body Repair Portable Spot Welder Ip21 Protection Grade

Description:

  • With the most advanced international IGBT inverter technology and advanced digital control technology and user friendly design, all you have to do is select the welding function corresponding to the workpiece thickness to achieve the best weld quality.
  • Digital control system offers greater stability of the output power.
  • Automatic mains voltage monitoring.
  • Overheat protection.
  • Stepless current regulation.
  • Designed to repair different kinds of car steels such as conventional steel, stainless steel, etc.
  • Various welding procedures are available such as shrinking, washer welding, dent pulling spot welding, flattening, waveform wire welding, stud welding, OT washer welding, triangle washer welding etc.
  • Inverter technology with high efficiency, energy consumption can be reduced up to 50%
  • High precision time and power adjustment system.


Specification

Technical data WD-FY-88A WD-FY-87A WD-FY-86A WD-FY-85A
Input voltage 220V/380V 50/60Hz 220V/380V 50/60Hz 220V/380V 50/60Hz 220V/380V 50/60Hz
Input power 18KVA 16KVA 12 KVA 10 KVA
Input current 54A/18A 48A/16A 42A/14A 42A/12A
Max welding current 2600A 2400A 2200A 2200A
One-side welding thickness 0.8+1.2mm 0.8+1.0mm - -
Operation way Electronic timer continuously Electronic timer continuously Electronic timer continuously Electronic timer continuously
Welding time 0-99S 0-99S 0-99S 0-99S

Main machine

Trolley

42x23x27cm

55x65x110cm

42x23x27cm

55x65x110cm

42x23x27cm

55x65x110cm

42x23x27cm

55x65x110cm
Weight 10.5kg/25kg 10.5kg/25kg 9.5kg/25kg 9 kg/25kg

Accessories

No. Accessories WD-FY-88A WD-FY-87A WD-FY-86A WD-FY-85A
F001 Pneumatic vacuum couple 1 set - - -
F002 Pulling hammer with hook 1 set 1 set 1 set 1 set
F003 Dent pulling spot hammer 1 set 1 set 1 set -
F006 Wavy wire 15pcs 15pcs 15pcs -
F007 Carbon rod 5pcs 3pcs 3pcs 3pcs
F008 Spot welding electrode tip 1pc 1pc 1pc -
F009 Carbon rod connector 1pc 1pc 1pc 1pc
F010 Wavy wire electrode tip 1pc 1pc 1pc -
F011 Washer connector 1pc 1pc 1pc 1pc
F013 Triangle washer connector - - - 1pc
F014 Claw 1pc 1pc 1pc 1pc
F015 Triangle washer 10pcs 10pcs 10pcs 10pcs
F016 Stud 30pcs 30pcs - -
F017 12MM washer 15pcs 15pcs 15pcs 15pcs
F017-2 10MM washer 15pcs 15pcs 15pcs 15pcs
F018 Earth clamp 1pc 1pc 1pc 1pc
F019 Manual couple - 1pc 1pc 1pc
F030 OT washer 20pcs 20pcs - -
F033 Wrench 1pc 1pc 1pc 1pc
F034 Stud connector 1pc 1pc - -
