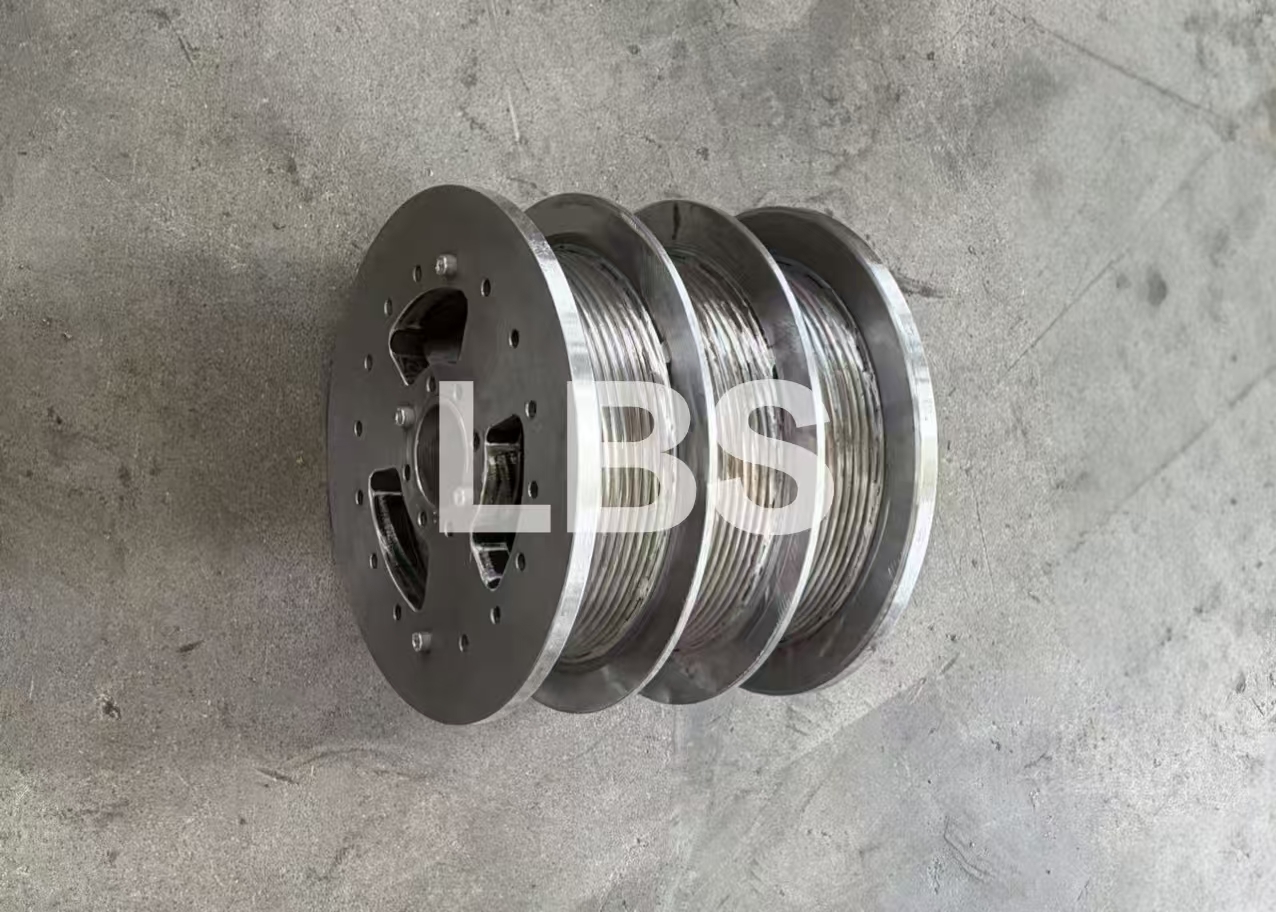

Q355B Steel Triple-section Drum Right-hand 50° Rope Groove Multi-hole Split Flange Plate Matched For Multi-rope Synchronous Lifting Winch

Product Description

This triple-section drum is made of Q355B steel with stable mechanical performance and reliable load capacity under normal temperature. Three independent 50° right-handed rope grooves separate wire ropes into groups for synchronous winding without tangling. Integrated partition baffles and multi-hole flanges offer great installation compatibility, widely used for multi-channel lifting winches.

Technical Parameters

Characteristics

• Made of Q355B steel, it has moderate strength and good machinability to fit regular lifting load conditions.
• Triple independent segmented grooves from an integrated triple drum; partition plates separate wire ropes to avoid tangling.
• All grooves adopt standard 50° right-hand rotation angle, perfectly matching right-turn steel ropes for tidy winding.
• Perforated hollow flange plate with multi-size mounting holes, highly compatible for connecting winch driving units.
• Finished smooth barrel surface without burrs, effectively reducing abrasion and extending wire rope service life.

About Us

Our factory adopts advanced and reliable technology, specializing in the production of various types of winches, LBS wire rope groove drum, automatic rope arrangement, petroleum drilling rig winch, trailer mounted pumping unit,fifth wheel,Herringbone Gear,etc., products widely used in aviation, shipbuilding, metallurgy, petroleum, coal, port, wind power, hydropower and other heavy machinery field. in addition to the domestic market, products as been successfully exported to Singapore, America, Britain and other parts of Asia pcific and the west.
