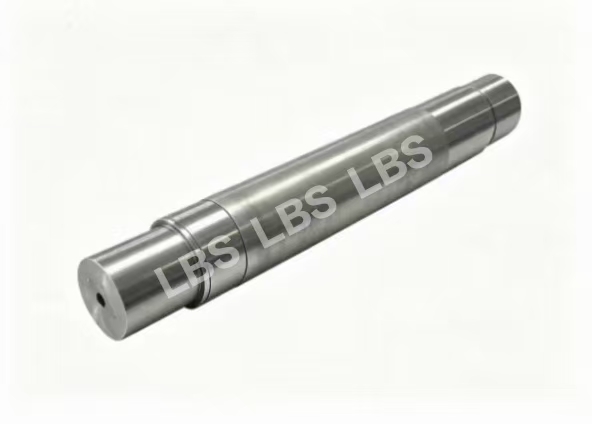

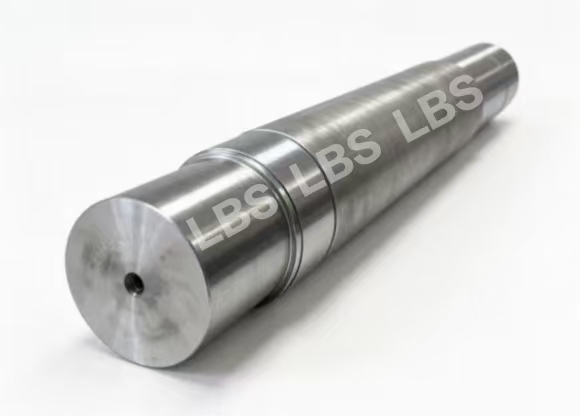

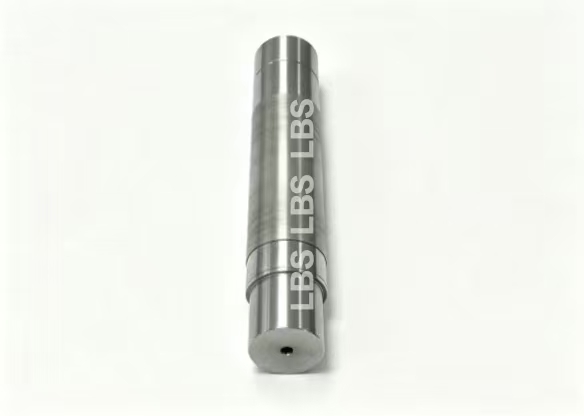

Stepped Shaft Main Shaft 45# Steel Solid End Face
Stepped Shaft Main Shaft 45# Steel Solid End Face
Stepped Shaft Main Shaft 45# Steel Solid End Face
Stepped Shaft Main Shaft 45# Steel Solid End Face
Stepped Shaft Main Shaft 45# Steel Solid End Face
Stepped Shaft Main Shaft 45# Steel Solid End Face
Specifications
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Material :
45#
Model Number :
JC45T02-101
Model No. :
JC45T02-101
Price :
Negotiation
Condition :
New
Supply Ability :
1000 Pieces/Sets Per Month
MOQ :
1 set
Delivery Time :
20 to 30 working days, depends on order amount and specification
Customization :
Yes
Payment Terms :
L/C,T/T
Brand Name :
LBS
Name :
Main Shaft
Packaging Details :
Export standard wooden case
Place of Origin :
Hebei China
Color :
According to Customer Demand
Description

Stepped Shaft Main Shaft 45# Steel Solid End Face

Product Description

This lifting main shaft is precisely turned from 45# steel with excellent comprehensive mechanical properties after quenching and tempering heat treatment. The integrated multi-step shaft body features high dimensional accuracy and qualified coaxiality for stable transmission without shacking. Finely ground anti-rust surface fits assembly of drums, pulleys and other lifting parts, with strong bearing capacity and outstanding durability.

Technical Parameter

Parameter Specification
Product Name Main Shaft
Material 45# Steel
Model No. JC45T02-101
Single Weight 505kg
Total Overall Length 1700mm
Middle Smooth Shaft Diameter 228

Matters Need to Attention

  • Clean the fitting surface of the shaft before installation to avoid scratches and guarantee coaxiality.
  • Do not strike the shaft violently to prevent bending and deformation of step sections.
  • Apply even force during fitting bearings and drums to avoid shaft eccentricity from unilateral extrusion.
  • Fill lubricating grease regularly to reduce wear; keep anti-rust treatment during storage.
  • Stop operation for maintenance once shaft surface scratches or bending deformation occur.

Application

  • Serve as the core transmission main shaft for crane and winch drums, bearing all working loads of drums and steel ropes, and transmitting torque for hoisting and luffing movements.
  • Match fixed and movable pulley assemblies, support pulley rotation and guide smooth winding of steel wires.
  • Connect the output end of winch reducer and driving parts to deliver power for lifting and traction of heavy loads.
  • Widely applied in engineering cranes, port winches, mine hoists and other equipment as key load-bearing transmission parts of lifting mechanisms.
