Bolt Connection Drum Sleeve Q460NE Epoxy Zinc‑rich Primer For Crane
Bolt Connection Drum Sleeve Q460NE Epoxy Zinc‑rich Primer For Crane
Bolt Connection Drum Sleeve Q460NE Epoxy Zinc‑rich Primer For Crane
Bolt Connection Drum Sleeve Q460NE Epoxy Zinc‑rich Primer For Crane
Bolt Connection Drum Sleeve Q460NE Epoxy Zinc‑rich Primer For Crane
Bolt Connection Drum Sleeve Q460NE Epoxy Zinc‑rich Primer For Crane
Bolt Connection Drum Sleeve Q460NE Epoxy Zinc‑rich Primer For Crane
Bolt Connection Drum Sleeve Q460NE Epoxy Zinc‑rich Primer For Crane
Bolt Connection Drum Sleeve Q460NE Epoxy Zinc‑rich Primer For Crane
Bolt Connection Drum Sleeve Q460NE Epoxy Zinc‑rich Primer For Crane
Specifications
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Color :
As Your Requirement
Model Number :
RD52-1500*1470-L1657.4
Material :
Q460NE
MOQ :
1 set
Delivery Time :
20 to 30 working days, depends on order amount and specification
Product Condition :
Fully Machined
Payment Terms :
L/C,T/T
Price :
Negotiation
Connection Way :
Bolted
Supply Ability :
1000 Pieces/Sets Per Month
Brand Name :
LBS
Name :
Drum Sleeve
Packaging Details :
Export standard wooden case
Place of Origin :
Hebei China
Warranty :
1 Year
Description

Bolt Connection Drum Sleeve Q46NE Epoxy Zinc‑rich Primer For Crane


Product Description

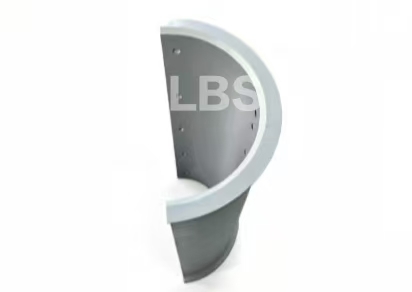

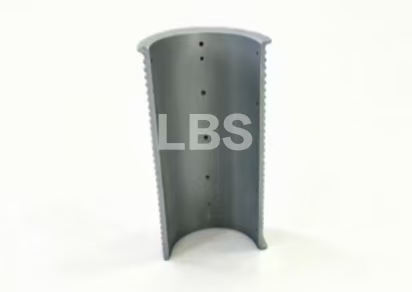

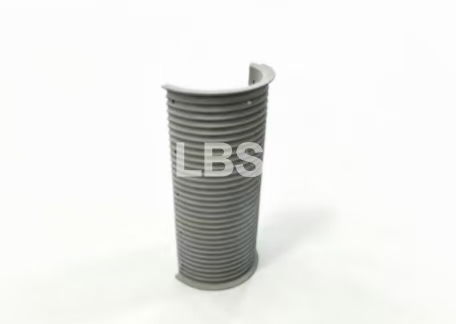

This drum sleeve is manufactured from high-strength Q460NE steel, with right-hand 60° rope grooves and bolted connection for convenient assembly and maintenance. The surface is painted with epoxy zinc-rich primer to deliver outstanding rust and corrosion resistance. High-precision machined rope grooves effectively reduce steel wire rope wear and extend rope service life. It is mainly matched with drums for various cranes and winches.

Technical Parameter

Parameter Specification
Product Name Drum Sleeve
Material Q460NE
Wire Rope Diameter 52mm
Groove Bottom Diameter 1500mm
Pitch 54.34mm
Number of Groove 30.5
Groove Rotation Right-Hand
Lead Angle 60°
Net Weight 1311.4kg

Characteristic

  1. Made of high-strength Q460NE steel with good low-temperature toughness and high load-bearing capacity.
  2. Adopt right-hand 60° precision rope grooves and bolted-connection structure for easy disassembly and replacement.
  3. Surface coated with epoxy zinc-rich primer to achieve favorable rust and corrosion protection.
  4. High-precision formed rope grooves enable neat wire rope arrangement and reduce extrusion damage.

About Us

Our factory has casting, forging, gear machining, sheet metal stamping, welding, heat treatment, machining and other advanced equipment more than 2000 sets. In recent years, we has introductioned Germany CW1000 processing center, CNC four axis, five-axis linkage machining center, CNC punching machine, large CNC gear hobbing gear grinding machine, large CNC floor-type boring and milling machine, vacuum electron beam welding, CNC welding robots and 80 machine and other advanced processing equipment.
