Specifications
Model Number :
445094
MOQ :
1 set
Delivery Time :
20 to 30 working days, depends on order amount and specification
Grooving Type :
LBS Groove
Payment Terms :
L/C,T/T
Material :
Q355D
Use :
Lifting Winch And Cranes
Price :
Negotiation
Connection Way :
Bolt
Supply Ability :
1000 Pieces/Sets Per Month
Name :
Drum Sleeve
Equipment :
CNC Machining Center
Place of Origin :
Hebei China
Brand Name :
LBS
Packaging Details :
Export standard wooden case
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Description

Spray Primer Drum Sleeve Q355D Bolt Connection For Winch


Product Description

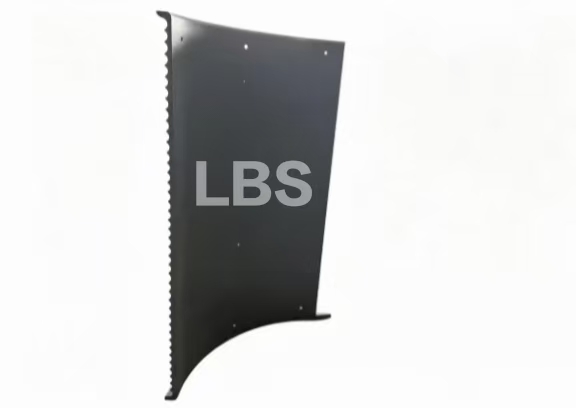

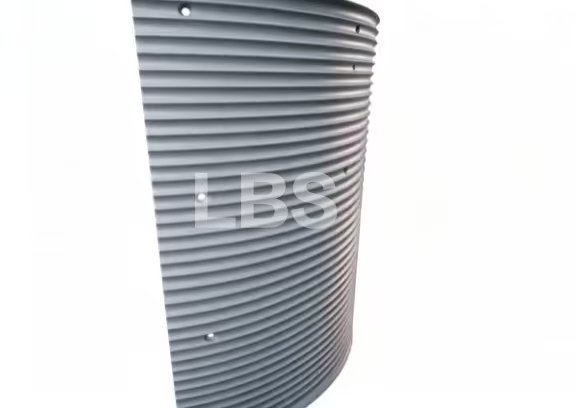

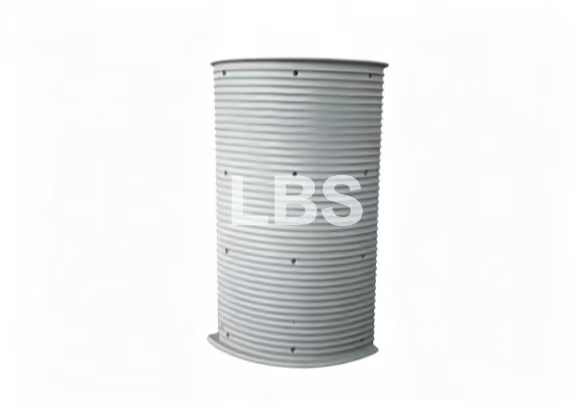

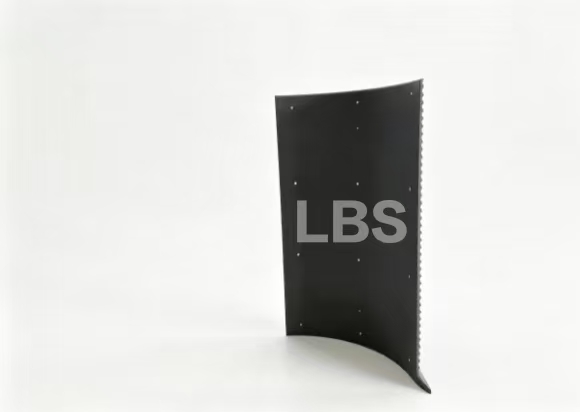

This drum sleeve is made of Q355D steel with bolt-connected structure and 60° right-hand rope grooves. It is coated with spray primer for reliable anti-rust protection. The precisely machined grooves guide neat wire rope winding and reduce rope wear. It is easy to assemble and maintain, widely matched with various hoisting drum bodies.

Techinical Parameter

Parameter Specification
Product Name Drum Sleeve
Material Q355D
Rope Diameter 41mm
Number of Grooves 43
Groove Bottom Diameter 1500mm
Direction Right-Hand
Lead Angle 60°
Connection Way Bolt

Application

  • Matched with hoisting drum bodies to guide steel wire rope winding for cranes and winches.
  • Applied to hoisting and luffing mechanisms of mobile cranes, fixed cranes and other construction machinery.
  • Suitable for heavy-duty working scenarios such as ports and mines. It can be replaced independently after wear to reduce overall maintenance cost.
  • Fit for retrofitting and replacement projects of various LBS Lebus grooved drums.

Advantages

  • Made of Q355D steel with good low-temperature toughness and impact resistance, suitable for heavy-load and low-temperature working conditions.
  • Bolt-on structure allows independent disassembly and replacement upon wear instead of changing the whole drum, greatly cutting maintenance cost.
  • Precisely-machined 60° right-hand rope grooves guide tidy rope winding, reducing extrusion, rope biting and abrasion of wire ropes.
  • Spray-primer surface provides basic anti-rust protection and extends storage and service life.
