Split Type Spiral Groove Drum Sleeve Q355D Steel Left-hand For Lifting
Split Type Spiral Groove Drum Sleeve Q355D Steel Left-hand For Lifting
Split Type Spiral Groove Drum Sleeve Q355D Steel Left-hand For Lifting
Split Type Spiral Groove Drum Sleeve Q355D Steel Left-hand For Lifting
Split Type Spiral Groove Drum Sleeve Q355D Steel Left-hand For Lifting
Split Type Spiral Groove Drum Sleeve Q355D Steel Left-hand For Lifting
Split Type Spiral Groove Drum Sleeve Q355D Steel Left-hand For Lifting
Split Type Spiral Groove Drum Sleeve Q355D Steel Left-hand For Lifting
Split Type Spiral Groove Drum Sleeve Q355D Steel Left-hand For Lifting
Split Type Spiral Groove Drum Sleeve Q355D Steel Left-hand For Lifting
Specifications
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Color :
Customized Color
Model Number :
474137L（DN32.6-D1170-L690-A）
Material :
Q355D
Payment Terms :
L/C,T/T
Price :
Negotiation
Grooving Type :
LBS Groove
Supply Ability :
1000 Pieces/Sets Per Month
MOQ :
1 set
Delivery Time :
20 to 30 working days, depends on order amount and specification
Use :
Lifting Equipment
Brand Name :
LBS
Name :
Spiral Drum Sleeve
Packaging Details :
Export standard wooden case
Place of Origin :
Hebei China
Small order :
Accepted
Description

Split Type Spiral Groove Drum Sleeve Q355D Steel Left-hand For Lifting

Product Description

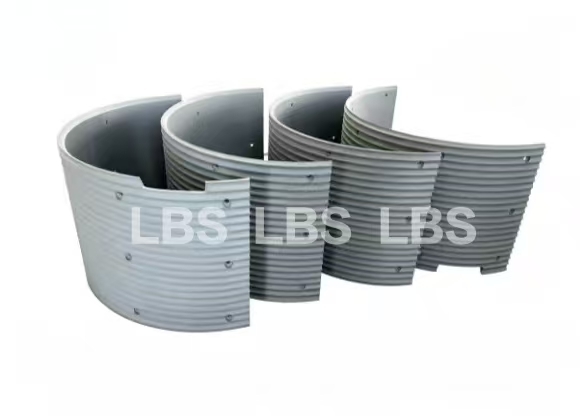

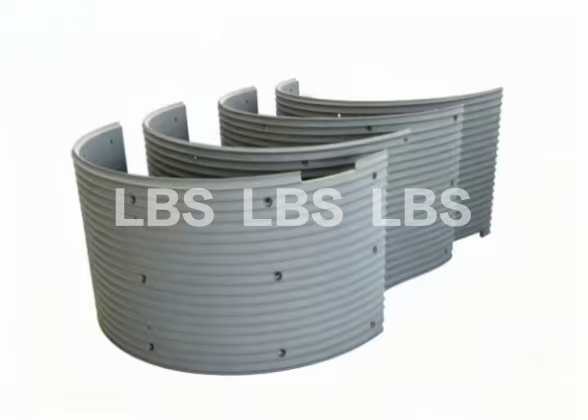

This split spiral groove drum sleeve is made of Q355D steel, with segmented milled left-handed spiral rope grooves that form a complete barrel via bolt assembly. The workpiece surface is sprayed with anti-rust primer, delivering outstanding low-temperature toughness to effectively reduce wire rope abrasion. The split structure enables easy disassembly and assembly, greatly lowering on-site maintenance and replacement difficulty, compatible with all kinds of lifting winch mechanisms.

Technical Parameter

Parameter Specification
Product Name Spiral Drum Sleeve
Material Q355D
Rope Diameter 32.6mm
Number of Grooves 20.5
Bottom Groove Diameter 1200mm
The Direction Left-Hand

Advantages

  • Q355D base material resists low-temperature impact, suitable for outdoor lifting in cold regions
  • Split bolt splicing eliminates integral disassembly, cutting maintenance and replacement costs
  • Precision left-handed spiral grooves realize neat rope winding to avoid tangling and abrasion
  • Surface spray primer provides basic anti-rust protection and slows steel corrosion

Matters Need to Attention

  • Tighten all connecting bolts diagonally and evenly during assembly to prevent barrel deformation
  • Only use left-handed wire ropes to avoid mismatched friction between grooves and cables
  • Repair damaged primer coating in time; inspect paint surface regularly for outdoor equipment
  • Overload operation is forbidden; routinely check groove wear and bolt tightness
