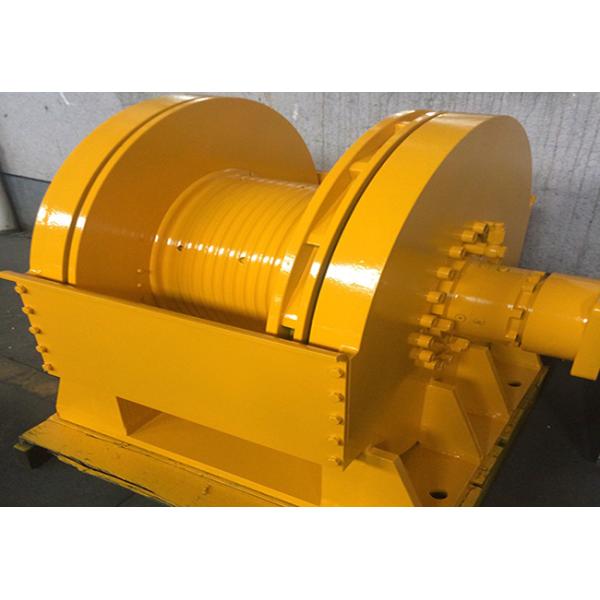

Large Capacity Hydraulic Mooring Winch For Boat Truck Trailer Bulldozer
Large Capacity Hydraulic Mooring Winch For Boat Truck Trailer Bulldozer
Large Capacity Hydraulic Mooring Winch For Boat Truck Trailer Bulldozer
Large Capacity Hydraulic Mooring Winch For Boat Truck Trailer Bulldozer
Large Capacity Hydraulic Mooring Winch For Boat Truck Trailer Bulldozer
Large Capacity Hydraulic Mooring Winch For Boat Truck Trailer Bulldozer
Specifications
Brand Name :
LBS
Model Number :
Custom design
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Place of Origin :
Hebei，China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 Pieces/Sets Per Month
Delivery Time :
30 to 40 working days, depends on order amount and specification
Packaging Details :
Export standard wooden case
Main Port :
Tianjin China
Power Source :
Hydraulic
Grooving Type :
LBS Groove
Product Condition :
Fully Machined
Application :
mining, metallurgical, cranes
Features :
High starting and working efficiency, Low energy consuming
Description

Why you should choose us:

Our factory mainly produce the series winch ,LBS groove winch ,LBS groove drum ,LBS groove sleeve .We have our own brand patent LBS that award by goverment .That LBS groove design can more advantage for you especially more years using later ,no need to chage the whole winch only to replace the drum sleeve or the drum that can make your save time and cost.

Product structure:
Product name marine windlass ,anchor ,crane winch
Drum type LBS (or smooth ,sprial)
Capacity: 3-80MT
Parameter can be design as requirement
Colour requirement
Application mining,logging,construction,marine ,offshore
Product parameter: can be designed to meet requirement

Model Rated load(KN) Rope speed

Rope

capacity(M)

 Rope diameter(mm) Power TYPE Size
JZHOF-1 10 15 100 9.3 JZ112M-6 3 620*701*417
JZHOF-1.6 16 16 150 12.5 JZ132M2-6 5.5 945*996*570
JZHOF-2 20 16 150 13 JZ160M-6 7.5 945*996*570
JZHOF-3.2 32 9.5 150 15.5 JZ160M2-6 7.5 1430*1160*910
JZHOF-3.2 32 12 195 15.5 JZ160M2-6 7.5 1082*1014*610
JZHOF5.A 50 10 270 21.5 JZ160L-6 11 1230*1235*800
JZHOF5B 50 9.5 200 21.5 JZ160L-6 11 1620*1260*945
JZHOF5C 50 9.5 250 21.5 JZ160L-6 11 1235*1230*805
JZHOF5D 50 15 250 21.5 JZ180L-6 15 1235*1230*805
JZHOF5E 50 20 250 21.5 JZ200L-6 22 1235*1230*805
Product composition:
1. The hydraulic crane winch is composed of hydraulic motor, brake, Valve, Baseplate, KC type planetary reducer, LBS grooved drum, frame and supporting shaft
2. The hydraulic motor, planetary gearbox and brake are installed and hide in the drum of the winch, so the overall length is kept to the minimum. The compact design is very suitable for applications where the installing room is limited

3. High starting and working efficiency, Low energy consuming

4. Low noise, Compact size

Application:
Our products are widely used in mining, metallurgical, cranes; construction, chemical, road and bridge, water and electricity being installed the terminal, hydropower station, engineering and installation, oil and other industries.

Product advantage:
Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit winch (The main drum is used LBS grooved drum) and oil equipment accessories.

Our service:
1. Top quality with competitive price
2. Compact structure and reasonable design
3. Safe and reliable function
4. Smooth running over the entire speed range
5. Reliable operation with little noise
