Large Tonnage Cast Steel Cast Steel Fifth Wheel with Kinpins
Large Tonnage Cast Steel Cast Steel Fifth Wheel with Kinpins
Large Tonnage Cast Steel Cast Steel Fifth Wheel with Kinpins
Large Tonnage Cast Steel Cast Steel Fifth Wheel with Kinpins
Large Tonnage Cast Steel Cast Steel Fifth Wheel with Kinpins
Large Tonnage Cast Steel Cast Steel Fifth Wheel with Kinpins
Large Tonnage Cast Steel Cast Steel Fifth Wheel with Kinpins
Large Tonnage Cast Steel Cast Steel Fifth Wheel with Kinpins
Specifications
Brand Name :
LBS
Model Number :
LBSCD50X-15
Certification :
ISO IFA SGS
Place of Origin :
SHIJIAZHUANG CITY
MOQ :
20 sets
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
5000 sets per quarter
Delivery Time :
10-15 work days
Packaging Details :
Standard wooden case
Material :
cast steel and cast iron
Mounting height :
150mm
mounting width :
800mm
vertical load :
15T
weight :
110kg
kingpin size :
φ50
function :
one way
Color :
Red or as your require
Description

Title: Large Tonnage Cast Steel and Cast Steel Fifth Wheel with Kinpins

Product parameter:

Model number mounting height mounting width vertical load weight kingpin size function capacity
LBSCD90 -18 185mm 960mm 36T

190kg

 φ90 one-way 50 ~100T
LBSCD50X-80 180mm 960mm 36T 110KG φ90 two-way 50~100T
LBSCD50-15 150mm 900mm 20t 135kg 2'' one-way <50T
LBSCD50-25 250mm 900mm 20t 145kg 2'' two-way <50T
LBSCL50 -29 290mm 900mm 20t 152kg 2'' two-way <50T

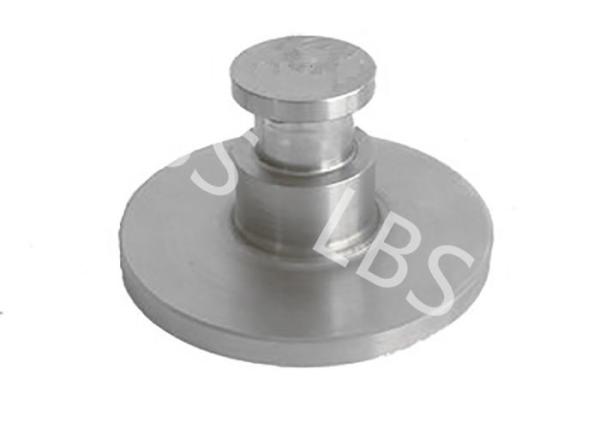

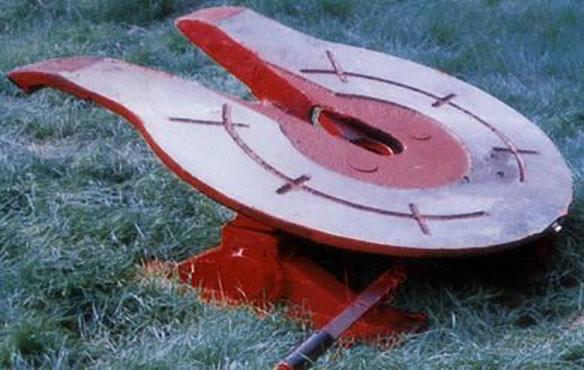

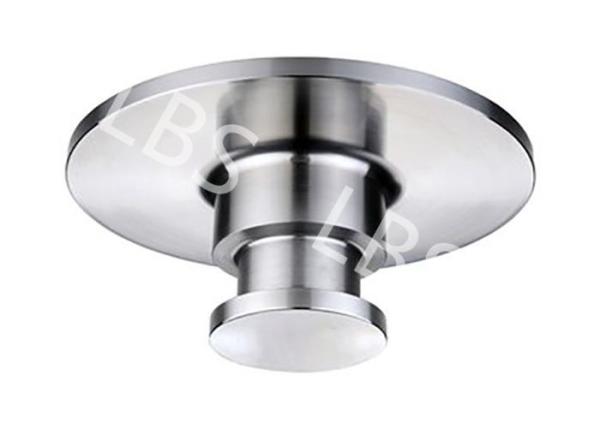

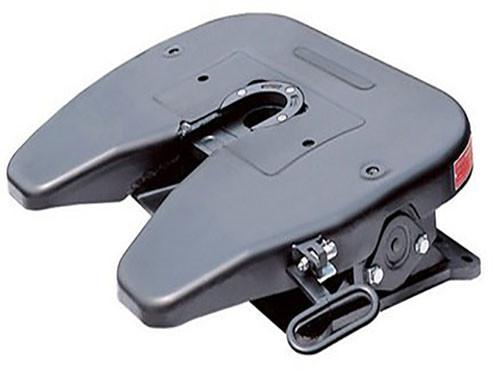

Product Name: The fifth wheel with kingpin

Uses: tow / trailer parts

Product material: 30Q cast steel, 50# cast steel, 90# cast steel, ductile iron, steel stamping

Function: one-way or two-way

Carrying capacity: 20T-100T

Advantage:

  1. The traction pin is integrally forged with high-strength steel and has excellent wear resistance.
  2. Smooth processing, providing a stronger bearing surface
  3. Reduce friction and uneven wear, hook and plunger design with safe and reliable anti-off locking mechanism
  4. High reliability level of operation
  5. Can be used under complex load conditions
  6. Anti-wear ring is easy to replace

FAQ:

Q1:What's your terms of payment?

A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance.

Q2:What's your terms of delivery?

A. EXW, FOB CIF CFR etc

Q3:How about your delivery time?

A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty.

Q4:Can you produce according to the samples?

A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.

Q5: What's your sample policy?

A. We can supply sample, but the customer have to pay the sample cost and courier cost.

Q6: Do you test all your goods before delivery?

A. Yes, we have 100% test before delivery.

Large Tonnage Cast Steel Cast Steel Fifth Wheel with Kinpins
