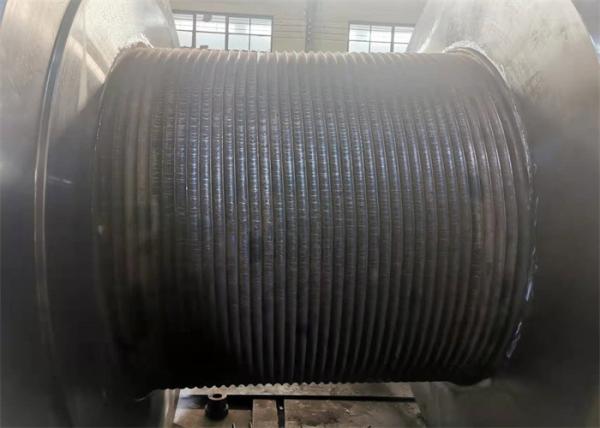

Tower Crane Lbs Grooved Winch Drum 1500mm Large Diameter Cable Steel Material
Tower Crane Lbs Grooved Winch Drum 1500mm Large Diameter Cable Steel Material
Tower Crane Lbs Grooved Winch Drum 1500mm Large Diameter Cable Steel Material
Tower Crane Lbs Grooved Winch Drum 1500mm Large Diameter Cable Steel Material
Tower Crane Lbs Grooved Winch Drum 1500mm Large Diameter Cable Steel Material
Tower Crane Lbs Grooved Winch Drum 1500mm Large Diameter Cable Steel Material
Specifications
Brand Name :
LBS
Model Number :
LBS2021089
Certification :
CCS
Place of Origin :
China
MOQ :
1
Price :
200usd
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
3000sets per month
Delivery Time :
within 15word days
Packaging Details :
pallet
Name :
Grooved Winch Drum
Material :
Q335B
Brand :
LBS
DIA. :
1500MM
Country of origin :
China
Warranty :
12 Months
Used :
Tower crane
Rope diameter :
45mm
Grooved type :
LBS grooved
Certificate :
CCS
Description

Tower Crane Drum 1500mm Large Diameter Cable Steel Metaril LBS Grooved Winch Drum

overview

Product name Cable winch drum
Drum Quantity Single Or Double
Drum Design LBS Groove Or Spiral Groove
Material Carbon Stainless And Alloy Steels
Size Customization
Application Range Construction Mining Terminal operation
Power Source Electric and hydraulic
Rope Capacity 100~300M

Grooved Winch Drum

Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center

Product Structure

Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.

LBSD Series Grooved drum :

About Size:
We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from
100mm to 2000mm.
Some parameters:
Rope diameter(mm) 5 12 24 32 42 58
Grooved drum diameter(mm) 80 150 300 500 800 1100
Width between the flanges flanges(mm) 150 280 300 460 750 1000
Rotation direction L R R L L R
Number of layers 3 2 4 6 8 8
Rope capacity(m) 18 19 43 127 360 1800

Our equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.

Why choose us

With the reliability of the product, it has achieved remarkable results in military and civil applications.

For example, it has been used in Marine vessels, oil drilling, construction machinery, coal metallurgy and other fields
In addition, the products are also exported to the United States, Britain, Spain, Germany, France, Italy, Denmark and other European and American countries, as well as Japan, South Korea, Singapore, Australia and other Asia-pacific countries
In the process of production and operation, we adhering to the "pursuit of excellence, excellence" concept and deep cooperation with domestic and foreign universities, research institutes, formed a "production, use, collaborative innovation" model of development, rigorous scientific method and the specialization of production, the combination of constantly absorbing new technology improved product of research and development, producing a batch of and a batch of high quality products suitable for the market,Also for customers to solve one after another technical problems.
At the same time, the company has always followed the service attitude of "keep promise, treat each other honestly", looking forward to sincere cooperation with customers at home and abroad!
