Reliable Lebus Winch Drum Sleeves Winch Spare Parts For Construction
Reliable Lebus Winch Drum Sleeves Winch Spare Parts For Construction
Reliable Lebus Winch Drum Sleeves Winch Spare Parts For Construction
Reliable Lebus Winch Drum Sleeves Winch Spare Parts For Construction
Reliable Lebus Winch Drum Sleeves Winch Spare Parts For Construction
Reliable Lebus Winch Drum Sleeves Winch Spare Parts For Construction
Specifications
Brand Name :
LBS
Model Number :
Non-standard
Certification :
CCS
Place of Origin :
Shijiazhuang Hebei China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
2000 Sets Per Month
Delivery Time :
30 to 40 working days, depends on order amount and specification
Packaging Details :
Export standard wooden case
Product name :
Oil Workover Rig Winch
Drum Quantity :
Double
Drum Design :
LBS Groove
Material :
Carbon Stainless And Alloy Steels And High
Size :
10-800
Application Range :
Mining , construction , road , forest
Power Source :
Hydraulic or Electric
Capacity :
500kn
Cor component :
Drum and sleeve
Description

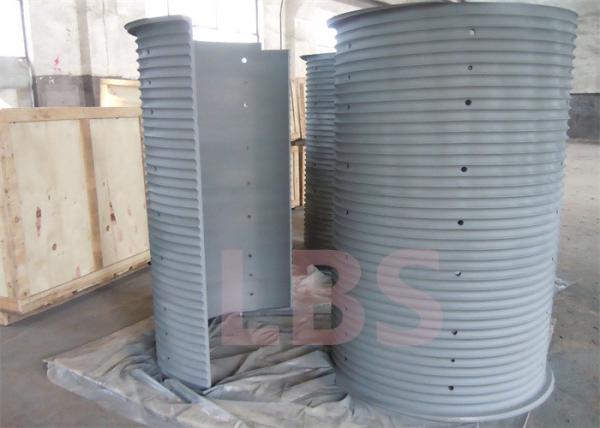

Non-Standard Oil Drilling Rig Drawwork Spare Parts Lebus Drum Sleeves

LBS grooved winch drum advantage:

1) Each one circle layer of the grooved drum has two parallel groove section and two groove section
2) Make wire rope spooling more smooth and uniform distribution of load between each layer
3) Prevent cross &mess in rope spooling working happening
4) Lower the rope damage, extend the rope life

Oil Driling Ring Drums Features:

1. Our products have the advantages of compact structure, light weight, safe and easy to operate.
2. Our products are used for general lifting, hauling and other works in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery and etc.
3. Products are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”.
4. High starting& working efficiency
5. Reliable operation with little noise

About us:

Shijiazhuang Jun Zhong Machinery Maufacturing Co.,Ltd has been certified as “High & New-tech Enterprises of Hebei Province”, “benchmark enterprises”, “Well-known Trademark of China”, “Famous Trademark of Hebei Province”, and it has achieved many patents of state level and National Torch Plan Projects.

Techinical parameters:

No: Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)
1 3~8 3~10 Lefthand,Righthand >160 <1000
2 10~16 12~20 Lefthand,Righthand >320 <1000
3 18~24 20~80 Lefthand,Righthand >480 <1000
4 26~32 100~120 Lefthand,Righthand >640 <1000
5 34~40 150~200 Lefthand,Righthand >800 <1000
6 42~50 240~400 Lefthand,Righthand >1000 <1000
