LBS 50 Ton Hydraulic Winch
LBS 50 Ton Hydraulic Winch
LBS 50 Ton Hydraulic Winch
LBS 50 Ton Hydraulic Winch
LBS 50 Ton Hydraulic Winch
LBS 50 Ton Hydraulic Winch
Specifications
Brand Name :
LBS
Model Number :
customizable
Certification :
CCS
Place of Origin :
Shijiazhuang Hebei China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
150 sets per month
Delivery Time :
after advance 20days
Packaging Details :
Export standard wooden case
Product name :
Oil Rig Drawworks
Drum Model :
Single Or Double
Drum Design :
LBS Groove Or Spiral Groove
Material :
Alloy Steels
capacity :
50T
Application Range :
Oil Mining
Power Source :
Hydraulic
Third part inspection :
Available
Warranty :
1year
Description

Steel Material Lebus Grooved Winch For Desert Oil Rig Drawworks

Company introduction

Shijiazhuang JunZhong Machinery Manufacturing Co.,Ltd. specializing in the production of lebus grooved drum. we have own brand LBS, with introduction of domestic and foreign advanced technology and experience, after years of research and development, we are now strong in the multi-layers rope grooved drum area and awarded patent by country having a high reputation in that area.
Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat
treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.

description:

colour :red or require

Sling type:cable or wire

Power :electric or hydraulic

Rope capacity:1~10000m
Rope diameter:3~90MM
Winch drum type:LBS groove

Customization need more product technical parameters.

Drum features:

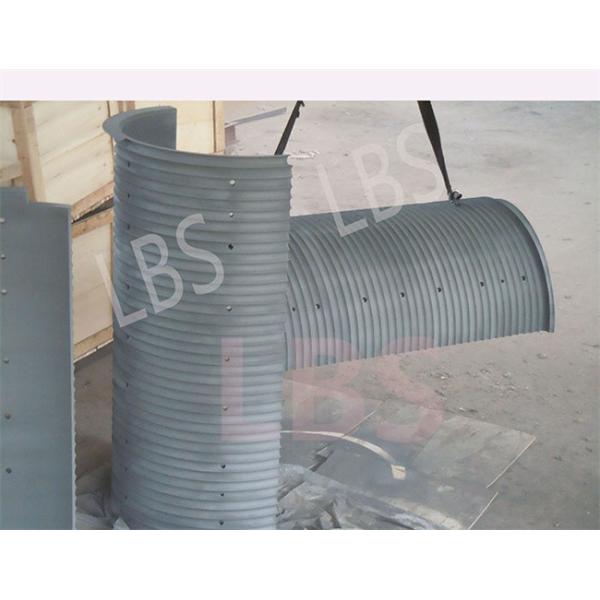

Product adoption LBS grooved drum, LBS groove system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.

Techinical parameters:

technical parameters
input powerkW JZ05 JZ03 JZ10-2 JZ08-02 JZ02-09 JZ3-2 JZ50D
150 180 400 450 600 735 1100
master rotor Maximum Fast line tension(second floor)kN 80 120 180 210 280 275 340
diameter of the tube body x lengthmm Φ345×590 Φ356×912 Φ450×912 Φ450×912 Φ580×1012 Φ640×1237 Φ685×1138
brake drum (disc) diameter x length (thickness)mm Φ810×210 Φ970×260 Φ1070×310 Φ1070×310 Φ1168×267 Φ1168×265 Φ1600×76
For wire rope diameter mm 22 22 29 29 32 32 35
maximum speed of revolutionrpm 450 450 450 450 450 370 370
brake drum cooling way air cooling air cooling Forced circulating water cooling Forced circulating water cooling Forced circulating water cooling Forced circulating water cooling air cooling

About us:

Shijiazhuang Jun Zhong Machinery Maufacturing Co.,Ltd has been certified as “High & New-tech Enterprises of Hebei Province”, “benchmark enterprises”, “Well-known Trademark of China”, “Famous Trademark of Hebei Province”, and it has achieved many patents of state level and National Torch Plan Projects.


LBS 50 Ton Hydraulic Winch
LBS 50 Ton Hydraulic WinchLBS 50 Ton Hydraulic WinchLBS 50 Ton Hydraulic WinchLBS 50 Ton Hydraulic Winch
LBS 50 Ton Hydraulic Winch
