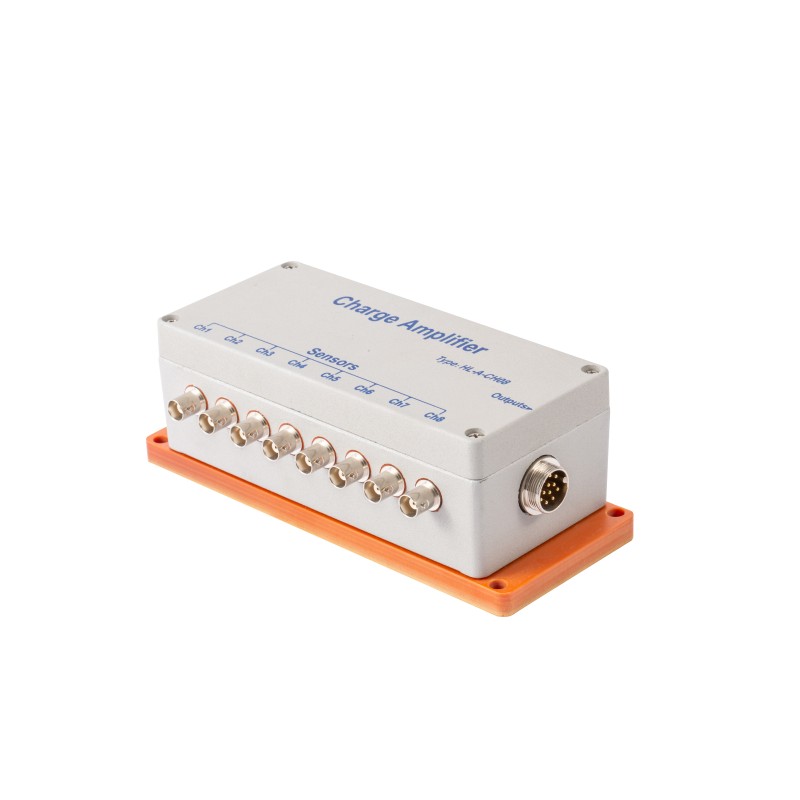

Truck Axle Scales Charge Amplifier
Truck Axle Scales Charge Amplifier
Specifications
Output Voltage :
DC-5V~+5V
Working Temperature :
-30~+70℃
Time Constant :
100s
Output Impedance :
100Ω
Frequency :
0.01~10KHz
Protection Class :
IP65
Channel :
8
Error :
< 1%
Power Dissipation :
< 10mA
Name :
charge amplifier
Brand Name :
Hengliang
Model Number :
HL12-6
Certification :
ISO
Place of Origin :
Zhenghou`China
MOQ :
1 PCS
Price :
USD 880-8800/SET
Payment Terms :
T/T
Supply Ability :
300 PCS/Month
Delivery Time :
5~7days
Packaging Details :
Wooden box
Description

High Precision Charge Amplifier For Truck Scales & Weighing Scales

Product Description

The charge amplifier is designed based on quartz WIM sensor’s signal converter; it can simultaneously proportionally change the charge of eight quartz WIM sensor output into voltage signal for acquisition unit to collect.


Product Parameters


Measuring range ± 60000PC
Error <1%
Output voltage 0 ~ ± 5V
Output Current 0 ~ ± 2mA
Output Impedance 100Ω
Frequency characteristic (3db) ≈0.0016 ~> 10 kHz
Time constant ≈100s
Supply voltage DC15 ~ 30V
Supply current <25mA
Operating temperature range -45 ~ 80 ℃
Protection level IP65
Shock resistance 10gp
