High Concealment High Speed WIM System Truck Weighing Bridge
High Concealment High Speed WIM System Truck Weighing Bridge
Specifications
Brand Name :
Hengliang
Model Number :
ZQS-40-SY
Certification :
ISO
Place of Origin :
Zhenghou`China
MOQ :
1 SET
Price :
USD 20000-35000/SET
Payment Terms :
T/T
Supply Ability :
30 SET/Month
Delivery Time :
5~7days
Packaging Details :
Wooden box
Type :
WIM System
Working power :
AC 220V
Accuracy :
90%~97%
Speed rate :
0.5~105km/h
Axle load :
40T (single axle)
Single axle max overload :
60T
MTBF :
≥20000h
Temperature :
-45~+80℃
Description

High Concealment Truck Weighing Bridge & High Speed WIM System

Product Description
  • Rapid construction, easy to install
    Minimum slotted work amount on road, minimal structural damage to the road surface. Disposable casting by pecial rubber, hardening 2 to 3 hours, the road can be open to traffic the next day.
  • Superior applicability for particular lane
    As for special lane, it is no need to reconstruct road, the quartz piezoelectric weighing sensor can be fully applicable to a wide angle longitudinal, transverse slope, sharp bends, and the lane or bridge not easy to be drained.

Product Parameters

Weighing accuracy 90%~97%
Single axle load 40Ton
Max Load 60Ton
Speed 0.5~105km/h；
Speed error ≤±1km/h
Wheelbase error ≤±100mm
Working voltage AC 220V 50Hz
Output information Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes 8 lanes
Data storage It can store up to 10000 pieces of vehicle information data
data interface RJ485
work environment -45℃～80℃,0～95%
Confidence ≥95%

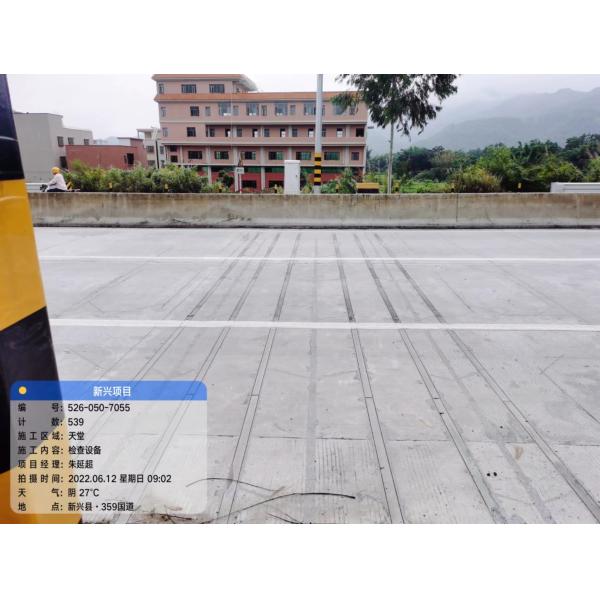

Project Case

​​High Concealment High Speed WIM System Truck Weighing Bridge
