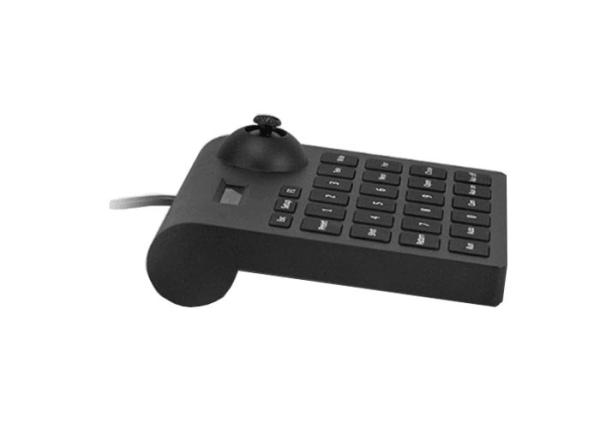

3D 3 Axis Joystick Keyboard Controller For Cctv Ptz Cameras Onvif 2.4 Protocol
3D 3 Axis Joystick Keyboard Controller For Cctv Ptz Cameras Onvif 2.4 Protocol
3D 3 Axis Joystick Keyboard Controller For Cctv Ptz Cameras Onvif 2.4 Protocol
3D 3 Axis Joystick Keyboard Controller For Cctv Ptz Cameras Onvif 2.4 Protocol
Specifications
Brand Name :
WINBO
Model Number :
SAV-PAB01
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS Per Month
Delivery Time :
5-8 working days
Packaging Details :
Neutral Factory Box
LCD screen :
YES
Power :
DC 12V/ 1A
Connector :
RS485
Protocol :
Onvif 2.4
Weight :
0.61KG
Working temperature :
0℃~55℃
Control :
up, down, left, right
Description

3D 3 Axis PTZ Joystick Controller Keyboard Accessories For Analog Security CCTV Camera

Application:

Analog Keyboard Controller can be applied to installed in Multi-AHD PTZ camera places, such as school, hospital, hotel, factory, workshop, etc., realize the unified control of the Onvif protocol in the LAN.

Function

  • Real-time display the current control address's agreement and baud-rate
  • 4 level control speed can be set
  • Speed dome ID can be switched directly by pressing 'AUX ON"/:AUX OFF'
  • Key-press sound volume can be adjusted
  • Small size suitable for use in car

Specification

Model No. SAV-PAB01
Baud rate(bps) 1200,2400,4800,9600,19200,38400
Control Address Control 255 dome camera, decoder at the most, assress code: 0-255
Communication Mode RS485 half-duplex
Joystick control : up, down, left, right
Protocols Pelco-d, Hikvision, Dahua
Warning Tone Key-touch beep on/off
Power Consumption 5W MAX
Working Temperature 0℃~55℃
Store Temperature -20℃~70℃

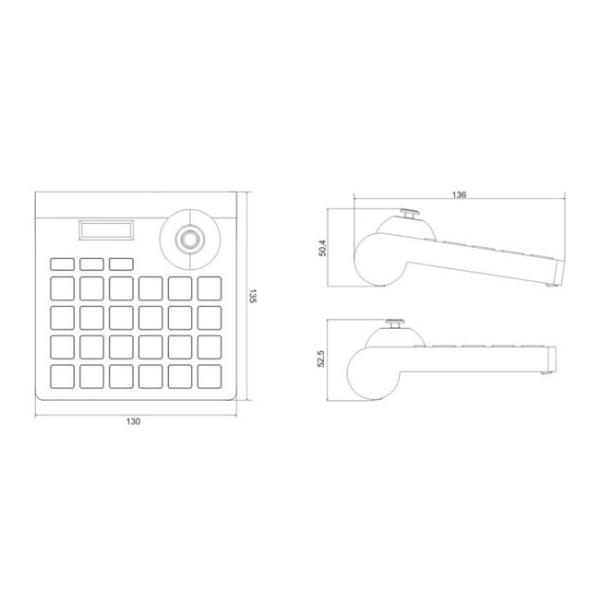

Size 180mm X 165 mm X 90mm
Weight 0.61kg
Power supply DC 12VA(~10%)
Certificate CE, FCC, RoHS
Warranty 2 year

Connection diagram
