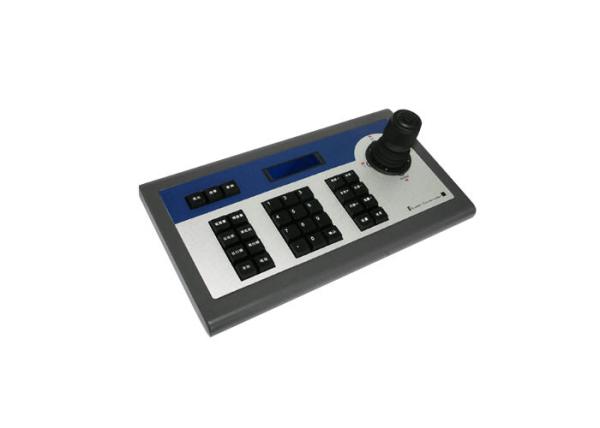

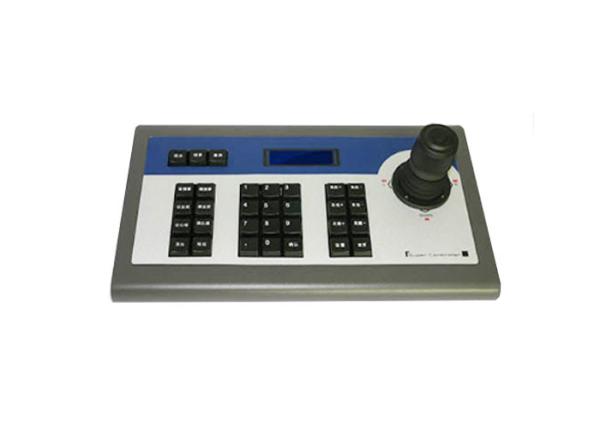

IP CCTV Camera Accessories / Ptz Joystick Keyboard Controller SAV - PBZ Model
IP CCTV Camera Accessories / Ptz Joystick Keyboard Controller SAV - PBZ Model
IP CCTV Camera Accessories / Ptz Joystick Keyboard Controller SAV - PBZ Model
IP CCTV Camera Accessories / Ptz Joystick Keyboard Controller SAV - PBZ Model
Specifications
Brand Name :
WINBO
Model Number :
SAV-PBZ
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS Per Month
Delivery Time :
5-8 working days
Packaging Details :
Neutral Factory Box
Main Chip :
Grain GM8126
Power :
DC 12V/ 1A
Connector :
RJ45
Protocol :
Onvif 2.4
Weight :
3KG
Working temperature :
perature: 0℃~55℃
Description

IP Camera PTZ Keyboard Controller Accessories With Onvif 2.4 View Through IE Browser

Application:

IP Keyboard Controller can be applied to installed in Multi-IP PTZ camera places, such as school, hospital, hotel, factory, workshop, etc., realize the unified control of the Onvif protocol in the LAN.

Key Features

  • Support Network control model, It has unique IP address.
  • Support ONVIF protocol, realize the control to PTZ.
  • Support Auto-search the ONVIF devices in LAN
  • Support Offline search & add devices.
  • Support adding the front-end equipment parameter in IE Browser.

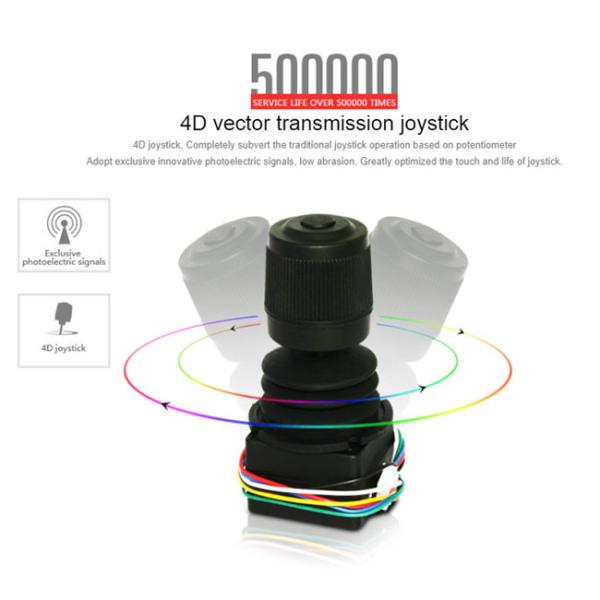

  • Japan-Original 4D Joystick
  • 160x32 blue LED displayer can display IP PTZ’s status info.

Specification

Model No. SAV-PBZ
Main Chip Grain GM8126
RS485 1pc 3.81 Pin, TA, TB
RS232 1pc DB9 male pin
Ethernet 1pc Ethernet, IEEE 802.11b/g/n
Protocols Onvif 2.4
IE browser IE, Firefox, Chrome, Safari ...etc
Working Temperature 0℃~55℃ / 14°F~131°F
Working humidity 20% -80% (frostless)
Storage Temperature -10℃~60℃ / 14°F~140°F
Storage Humidity ≤90%RH(frostless)

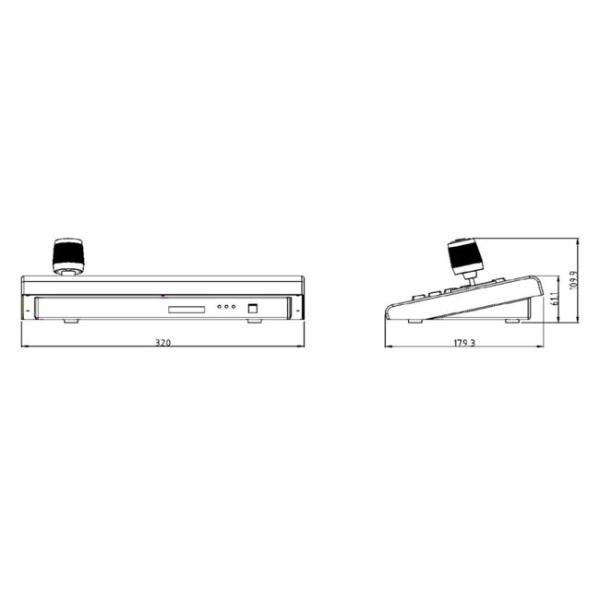

Size 320mm X 180 mm X 110mm
Weight 3KG
Power supply DC 12V/ 1A
Certificate CE, FCC, RoHS
Warranty 2 year

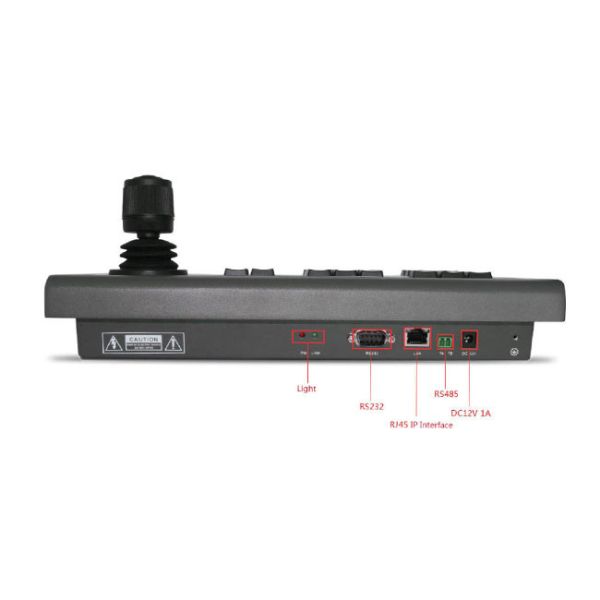

Connection diagram

IP CCTV Camera Accessories / Ptz Joystick Keyboard Controller SAV - PBZ ModelIP CCTV Camera Accessories / Ptz Joystick Keyboard Controller SAV - PBZ ModelIP CCTV Camera Accessories / Ptz Joystick Keyboard Controller SAV - PBZ Model
