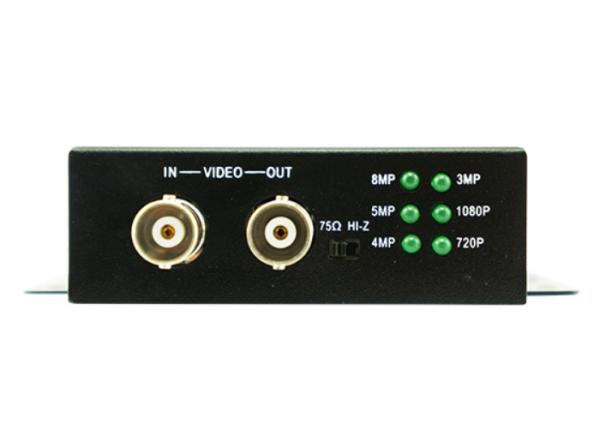

Full HD CCTV Camera Accessories 4K CVI / TVI / AHD / CVBS To HDMI Converter
Full HD CCTV Camera Accessories 4K CVI / TVI / AHD / CVBS To HDMI Converter
Full HD CCTV Camera Accessories 4K CVI / TVI / AHD / CVBS To HDMI Converter
Full HD CCTV Camera Accessories 4K CVI / TVI / AHD / CVBS To HDMI Converter
Full HD CCTV Camera Accessories 4K CVI / TVI / AHD / CVBS To HDMI Converter
Full HD CCTV Camera Accessories 4K CVI / TVI / AHD / CVBS To HDMI Converter
Specifications
Brand Name :
WINBO
Model Number :
SAV-HDC800
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS Per Month
Delivery Time :
5-8 working days
Packaging Details :
Neutral Factory Box
Function :
AHD CVI TVI CVBS Optional
Impedance switch :
75Ω HI-Z
Resolution :
720P/1080P/3MP/4MP/5MP/8MP
Power output :
External DC12V/ 1A
Interface :
HDMI Support
Auto off :
1-30 (mins)
Warranty :
2 Years
Description

Full HD CCTV 4K Tester Accessory CVI/ TVI/ AHD/ CVBS to HDMI Converter

Features

● Support upto AHD 5MP, TVI 8MP, CVI 8MP test

● CVI/ TVI/ AHD+ CVBS to HDMI, HDMI output 1080P

● Connect HD Monitor, HD coaxial output and HDMI Input display at the same time

● One channel AHD/ TVI/ CVI/ CVBS loop out
● Auto recognition 720P/ 1080P/ 3MP/ 4MP/ 5MP/ 8MP resolution, indicator visual display

Specification

Model SAV-HDC800
Resolution CVI TVI AHD
720P 1280 x 720P 1280 x 720P 1280 x 720P
25/ 30/ 50/ 60 FPS 25/ 30/ 50/ 60 FPS 25/ 30 FPS
1080P 1920 x 1080P 1920 x 1080P 1920 x 1080P
25/30 FPS 25/ 30 FPS 25/ 30 FPS
3 MP —— 2048 x 1536P 2048 x 1536P
18/ 25/ 30 FPS 18/ 25/ 30 FPS
4MP 2560 x 1440P 2688 x 1520P 2560 x 1440P
25/30 FPS 15FPS 15/25/30 FPS
2560 x 1440P
15/25/30 FPS
5MP —— 2592 x 1944P 2592 x 1944P
12.5/ 20 FPS 12.5/ 20FPS
4K(8MP) 3840 x 2160 3840 x 2160 ——
12.5/ 15 FPS 15 FPS

* Remarks: Just can choose one of CVI/ TVI/ AHD.

(different models support different resolutions)

Connection diagram

Full HD CCTV Camera Accessories 4K CVI / TVI / AHD / CVBS To HDMI Converter
