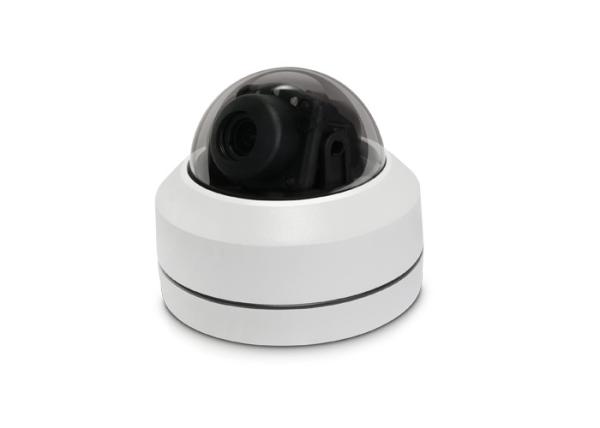

2.5 Inch Mini HD PTZ Outdoor Camera IP66 Poe Selection with 3X optical zoom
2.5 Inch Mini HD PTZ Outdoor Camera IP66 Poe Selection with 3X optical zoom
2.5 Inch Mini HD PTZ Outdoor Camera IP66 Poe Selection with 3X optical zoom
2.5 Inch Mini HD PTZ Outdoor Camera IP66 Poe Selection with 3X optical zoom
Specifications
Brand Name :
WINBO
Model Number :
SAV-CA11-SC-503
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS Per Month
Delivery Time :
5-8 working days for sample order
Packaging Details :
Neutral Factory Box
Sensor :
5.0MP 1/2.5Low illumination CMOS
Optical zoom :
3.5mm -10.5mm 3X zoom
IR distance :
15 Meters
Video compression :
H.265//H.264/MJPEG
Protection grade :
IP66
Pan angel :
106.6° — 51.8°
Power :
DC 12V 2A
Material :
Metal
Description

2.5Inch 5.0M Mini Dome HD PTZ Outdoor Camera with 3X optical zoom

Description

  • 5.0MP 1/2.5Low illumination CMOS,3X optical zoom
  • Support Onvif protocol GB/T28281,work with Hikvision , dahua, XM
  • Support lightning protection, anti surge
  • Outdoor speed dome camera protection grade:IP66;
  • Support standard ONVIF, GB28181 agreement
  • Support Chinese and English IE interface and have operation tips function,
    user interface friendly
  • Support poE selection

Features

  • Adopt 1 pcs infrared light, Effective exposure distance up to 15m
  • Horizontal rotation 355 ° continuous rotation, Vertical 0 ° -90 °, support auto flip, no monitoring blind spot.
  • Pan speed max 25°/s,tilt speed max 20°/s
  • Pan speed 0°/s～25°/s,tilt speed 0°/s～20°/s
  • Support 16 presets
  • Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples
  • Support park action, presets scan can invoke automatically after a defined time of inactivity

Application :


Can be widely used in the need for a wide range of high-definition quality monitoring sites, the use of scenarios: warehouse,underground.parking, access,staircase, supermarkets, Internet cafes, etc.

Specification

Model SAV-CA11-SC-503
Image sensor 1/2.5’CMOS
Resolution 2592x1944@30fps
Low illumination color:0.1Lux@F1.2；black-white 0.05Lux@F1.2
Electronic shutter Auto/manual(1/5——1/20000s)
Day-night mode Auto ICR
Optical zoom 3.5mm-10.5mm; 3x
Pan angel 106.6°——51.8°
IR distance 15m
Pan speed Horizontal rotation 355 ° continuous rotation,0°～25°/S
Tilt speed 0—20°/S
Tilt range 0°-90°
Proportional zoom Support, change the speed based on the zoom
Preset 16
Park function Support,preset
Max image size 2592x1944@30fps
Output bit rate 32Kbps——16Mbps
Video compression H.265//H.264/MJPEG
Network protocol TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP
Interface protocol Onvif,hikvision,xm,jovision private protocol
Network interface Built-in RJ45 network interface,support 10M/100M IP DATA
Application interface Provide Linux,NindoNs SDK develop bag and CGI protocol,can be second fast developed
Browser Support IE7,IE8,IE9,Chrome8+,Firefox3.5+,Safari5+
Power consumption DC 12V2A, 10W(max) Support poE selection
Working temperature -20℃～+60℃
Working humidity ≤90%RH(no frostless)
Protection grade TVS3000V lightning protection, surge protection and voltage transient protection, weather proof (for outdoor): IP66

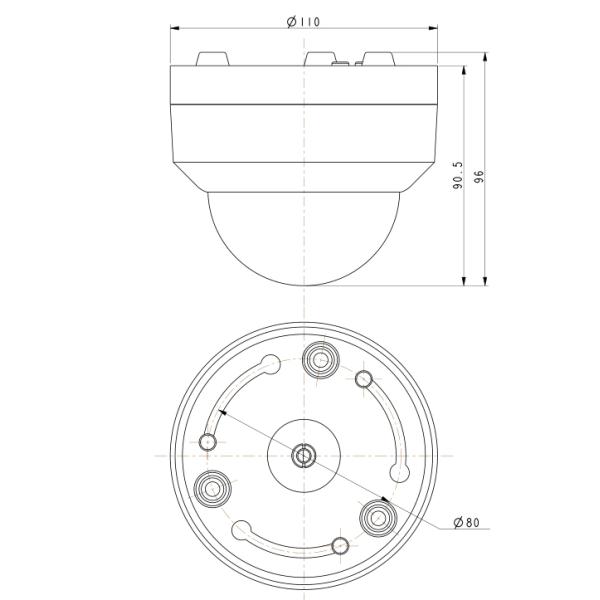

Drawing

2.5 Inch Mini HD PTZ Outdoor Camera IP66 Poe Selection with 3X optical zoom
