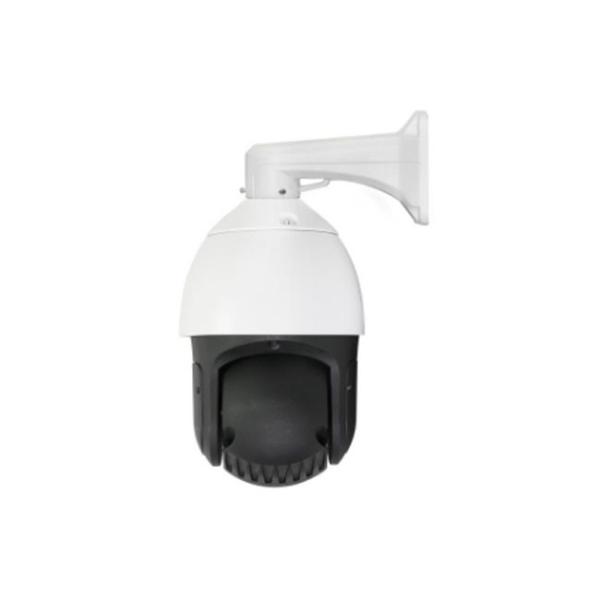

5MP HD PTZ Outdoor Camera , High Speed 18X Ptz Wireless Network Camera
5MP HD PTZ Outdoor Camera , High Speed 18X Ptz Wireless Network Camera
5MP HD PTZ Outdoor Camera , High Speed 18X Ptz Wireless Network Camera
5MP HD PTZ Outdoor Camera , High Speed 18X Ptz Wireless Network Camera
Specifications
Brand Name :
WINBO
Model Number :
SAV-PT5D118HTC500NV
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS Per Month
Delivery Time :
5-8 working days for sample order
Packaging Details :
Neutral Factory Box
Image Sensor :
1/2.7" OV CMOS Sensor 5MP
Waterproof :
IP66
Horizontal Rotation Range :
0°~360°
Focus Length :
5.35mm-96.3mm
Focus Control :
18X Optical Zoom
Infrared LED :
￠42x8PCS
Day-night mode :
Auto IR-CUT-PWM
Demenision :
26.5x26.5x42(cm)
Description

5.5 Inch 5MP Outdoor High Speed 18X Optical Zoom PTZ Camera Support IP66 Waterproof ​




Description

  • 1/2.7" OV CMOS Sensor 5MP
  • 3IN1: AHD/HD-TVI/CVBS
  • 18X Optical Zoom (f=5.35mm-96.3mm)
  • IR Distance 120m Max.
  • IP66 Outdoor


Application :


Can be widely used in the need for a wide range of high-definition quality monitoring sites, the use of scenarios: warehouse,underground.parking, access,staircase, supermarkets, Internet cafes, etc.


Specification

Camera
Image Sensor 1/2.7" OV CMOS Sensor 5MP
lmagine Resolution 5MP
TV System PAL/NTSC
S/N Ratio >50db
PTZ
Horizontal Rotation Speed 220°/S
Horizontal Rotation Range 0°~360°
Tilt Rotation Speed 30°/s
Tilt Rotation Range 0°~90°
Auto Flip Support
Park function Support
360° Scan Support
A-B Scan Support
Preset Points 220
Guard Tours 8 groups
Guard Points Max.32 points
Lens
Focus Length 5.35mm-96.3mm
Focus Control 18X Optical Zoom
Night Vision
Infrared LED ￠42x8PCS
IR Range 120m
Day-night mode Auto IR-CUT-PWM
Communication
Communication Protocol UTC
RS485 Support
Communication interface COAXAIL CABLE
Interface
Audio /
Alarm /
General
Weatherproof IP66
Operating Temperature Indoor: 0°~ +40° Outdoor: -20°~ +60°
Operating Humidity ≤90% Non Condensing
Heater & Blower /
Power DC12V 4A
Lightning Protection TVS 3000V
Size of Package (LxWxH) 26.5x26.5x42(cm)
Weight 9.7Kgs

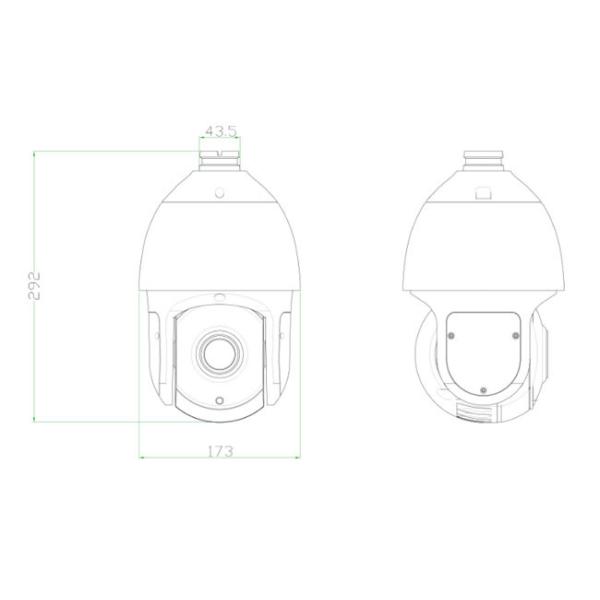

Drawing

5MP HD PTZ Outdoor Camera , High Speed 18X Ptz Wireless Network Camera5MP HD PTZ Outdoor Camera , High Speed 18X Ptz Wireless Network Camera
