960P WiFi CCTV Camera Kit , 4 Camera Wireless Security System Easy Install
960P WiFi CCTV Camera Kit , 4 Camera Wireless Security System Easy Install
960P WiFi CCTV Camera Kit , 4 Camera Wireless Security System Easy Install
960P WiFi CCTV Camera Kit , 4 Camera Wireless Security System Easy Install
960P WiFi CCTV Camera Kit , 4 Camera Wireless Security System Easy Install
960P WiFi CCTV Camera Kit , 4 Camera Wireless Security System Easy Install
Specifications
Brand Name :
WINBO
Model Number :
SAV--WNK1304
Certification :
CE-RED, ROHS,GS
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 sets a month
Delivery Time :
within 3-7 working days upon receipt of payment(sample order)
Packaging Details :
Neutral factory box
LCD Screen :
4CH 10 Inch
Resolution :
960P
Compression :
H.265
WiFi range :
100meters(open filed)
Lens :
3.6mm fixed(4mm optional)
Max Capacity :
4TB HDD
Waterproot :
IP66
IR Distance :
30m
Description

Very Easy To Install 4CH 960P Wifi CCTV NVR Kit With Full HD10 Inch LCD Screen

Features

  • Wireless 4 channels NVR plug and play system. Easy to set up and DIY Installation. only need to plug them in power to start working with AUTO-PAIR technology.
  • Support 4 X 960P HD IP cameras are exceptionally smooth, night vision is up to 100ft in the dark with IR-CUT double filter lens.
  • Motion Alerts: Push Notifications Instantly When Motion are Detected
  • Remote Viewing Anywhere Anytime. You can view the cameras remotely on your smartphone, iPad or PC anywhere anytime once the system is set up.
Application
SAV--WNK1304 suitable for a wide range of video surveillance applications, including government and industrial buildings, retail environments, office, house and schools.

Specifications

Model SAV--WNK1304
Wireless NVR Specification
Operating System Embedded Linux OS
LCD Screen 10inch LCD Screen
Network Video 4CH
Network video input broadbank 20 Mbps
AUdio Bitrate 64 Kbps
HDMI input 1 ch,resolution:1024x768,1366x768,
1440x900,1920x1080p
VGA output 1ch,resolution:1024x768,1366x768,
1440x900,1920x1080p
Video Resolution D1/720P/960P/1080P
synch-playback 4 CH
Video/Capture mode Maual, Time, Motion, Alarm
Playback mode Real time, Routine, Event
Backup USB backup
Alarm Input 4 CH (optional)
Alarm Output 1ch (optional)
Type 1*SATA interface
Max Capacity 4 TB at most for each
Network 1 adaptable RJ45 10M/100M, 1 WIFI interface
USB 2 USB 2.0
Protocol UPnP (play&plug)/SMTP (email survice) / PPPoE (dial-up)
DHCP (Automatically obtain an IP address), etc…
Power Supply DC12V 3A
Power Consumption (W) ≤5W(Without HDD)
Operate Temperature (°C) -10℃~+55℃
Working Humidity (%) RH 10%~90%
Size 290mm(W)×240mm(V)×55mm(H)
Weight(excluding HDD) ≤1Kg
IP Camera Specification
Sensor 1/3" Progressive Scan Sensor
Signal System PAL/NTSC
Resolution 1080P 16 : 9 High Defination
Minimum illumination Color: 0.1 Lux; B/W: 0.01 Lux
Shutter 1/25s to 1/25,000s
Lens 3.6mm
OSD Date Time & Title
White Balance Auto
Day&Night Auto / Color / BW
3D-DNR Auto
Mirror/Flip On / Off
Frame Specification Three Streaming at the Same Time:
H.264 128x720@30fps or below
H.264 640x480@30fps or below
S/N > 39.1 Db
Interface RJ45 / WIFI 802.11b/g/n
Anti-thunder Level Standard IEC61000-4-5
Working Temperature -20℃ to +60℃ / 20% to 90% RH
Power Input DC12V-1A
Power consumption ≤6W
Size 205(L)×70(W)×55 (H)mm
Weight 500g
Level of Protection IP66

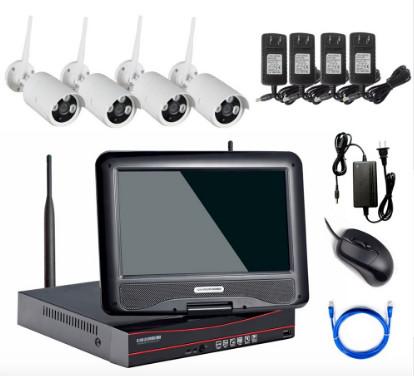

Packing List

960P WiFi CCTV Camera Kit , 4 Camera Wireless Security System Easy Install960P WiFi CCTV Camera Kit , 4 Camera Wireless Security System Easy Install960P WiFi CCTV Camera Kit , 4 Camera Wireless Security System Easy Install
