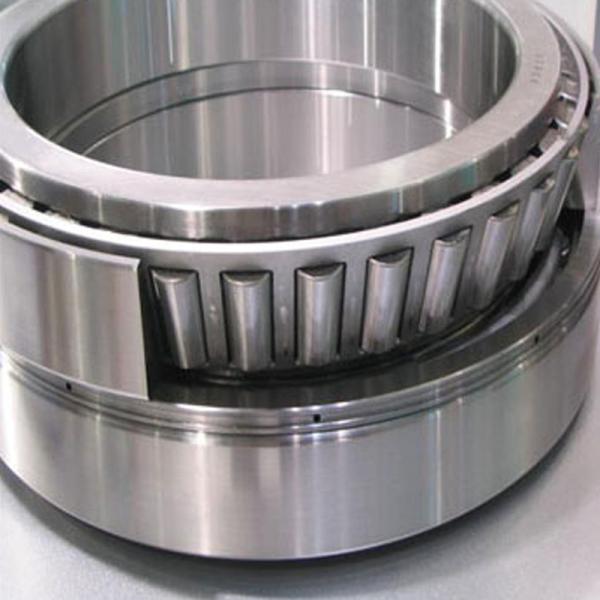

M268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mm
M268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mm
M268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mm
M268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mm
M268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mm
M268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mm
M268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mm
M268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mm
M268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mm
M268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mm
M268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mm
M268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mm
Specifications
Brand Name :
OEM
MOQ :
10
Description
轴承类型
  • Bearing Type
  • TRB
  • -
子类
  • Bearing Subtype
  • TDI
  • -
轴承型号
  • Cone (Inner)
  • M268749DW
  • 内圈
  • Cup (Outer)
  • M268710
  • 外圈
尺寸
  • d
  • 415.925
  • mm
  • 内径
  • D
  • 590.55
  • mm
  • 外径
  • T
  • 209.55
  • mm
  • 宽度
  • B
  • 209.55
  • mm
  • 内圈宽度
  • R
  • 3.302
  • mm
  • 最大轴肩倒角半径
  • da
  • 443.992
  • mm
  • 轴肩直径
  • Ab
  • 6.096
  • mm
  • 保持架(负值表示保持架没超出内圈小端面)
  • C
  • 88.9
  • mm
  • 外圈宽度
  • r
  • 6.35
  • mm
  • 最大轴承座挡肩圆角半径
  • Cup Back Face Backing Diameter
  • 548.894
  • mm
  • 轴承座挡肩直径
  • a
  • -9.398
  • mm
  • 有效中心位置
额定载荷
  • C1
  • 4982008
  • N
  • 一百万转动态径向载荷
  • C90(2)
  • 1289984
  • N
  • 九千万转双列轴承动态径向载荷
  • C90(1)
  • 738405
  • N
  • 九千万转单列轴承动态径向载荷
  • Ca90
  • 421691
  • N
  • 九千万转动态轴向载荷
  • C0
  • 5560277
  • N
  • 静态额定载荷
  • K = 0.39 / Tan (contact angle)
  • 1.76
  • 系数
  • e = 1.5 * Tan (contact angle)
  • 0.33
  • 系数
  • Y = 0.4 / Tan (contact angle)
  • 2.03
  • 系数
  • Y1 = 0.45 / Tan (contact angle)
  • 2.03
  • 系数
几何结构系数
  • Cg
  • 0.2319
  • 几何系数
重量
M268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mmM268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mmM268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mmM268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mmM268749DW/M268710 Inch Taper Roller Bearing 415.925x590.55x209.547mm
  • Assembly Weight
  • 194545.77
  • g
Bearing Model M268749DW/M268710
Type Inch Tapered Roller Bearing
Size(dxDxB)mm 415.925x590.55x209.547mm
d (mm) 415.925
D (mm) 590.55
B (mm) 209.547
Weight /Mass (KG) 186.70
Package Standard Carton Box / Wooden Pallet Case.
Deliver Time Within 3 working Days.
Stock Quantity

10.pcs
