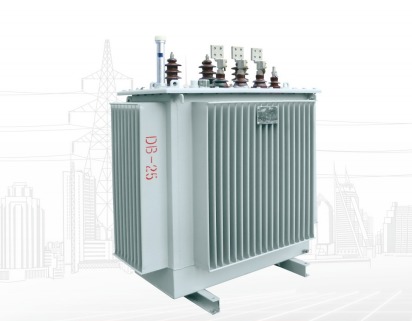

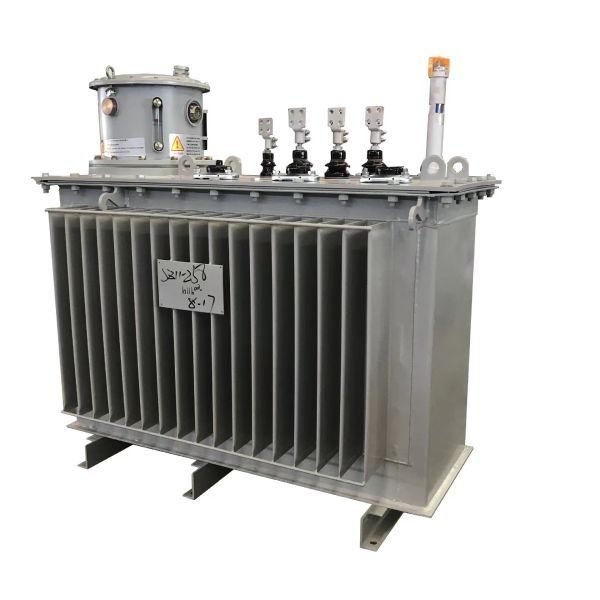

The S13-M Series 500kVA Transformer is a high-efficiency, oil-immersed distribution solution designed for modern power grids. Compared to the standard S11 series, the S13 model reduces no-load losses by an average of 25%–30%, significantly lowering operational costs and carbon footprints for industrial and residential utility providers.

Featuring a fully sealed corrugated tank design, the transformer oil is completely isolated from the atmosphere. This prevents moisture and oxygen from entering the tank, eliminating oil degradation and the need for periodic oil filtration or core maintenance. It is the "install-and-forget" solution for medium-voltage (MV) to low-voltage (LV) power conversion.

• Ultra-Low Loss Silicon Steel Core: Built with high-permeability, grain-oriented cold-rolled silicon steel. The core is precision-stacked to minimize eddy current losses and significantly reduce audible humming.

• High-Purity Oxygen-Free Copper Windings: We use 99.9% pure copper for both high and low-voltage windings. This ensures superior conductivity, high short-circuit strength, and excellent thermal stability under peak loads.

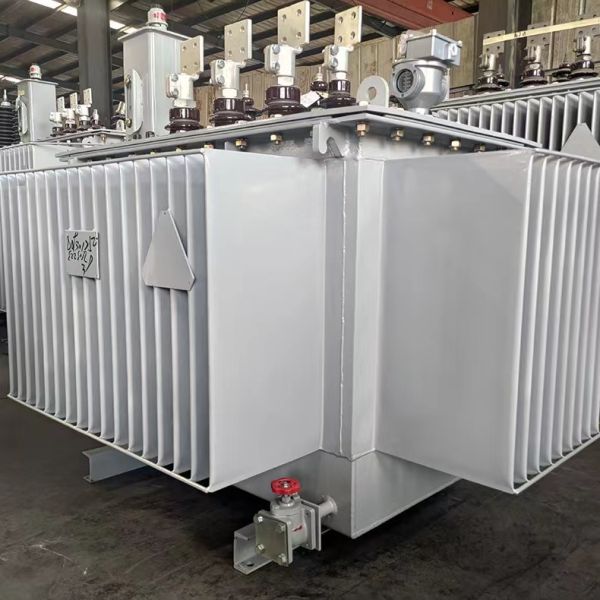

• Elastic Corrugated Tank: The corrugated fins act as both a cooling radiator and an expansion vessel. As the oil temperature changes, the elastic expansion of the fins compensates for the volume change, maintaining a permanent seal.

• Vacuum Oil Filling: Every unit is filled under high-vacuum conditions to ensure there are no air bubbles in the insulation, preventing partial discharge and extending the transformer's life to over 30 years.

• Multi-Stage Surface Protection: The tank undergoes sandblasting, pickling, and phosphating before being coated with a high-durability, weather-resistant finish (RAL 7035/7032) to prevent rust in humid or coastal environments.

1. Industrial Parks & Factories: Providing stable 400V power for heavy machinery and manufacturing lines.

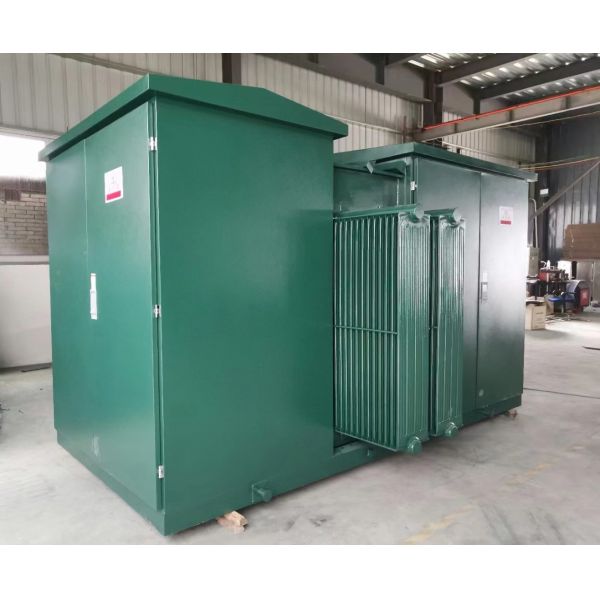

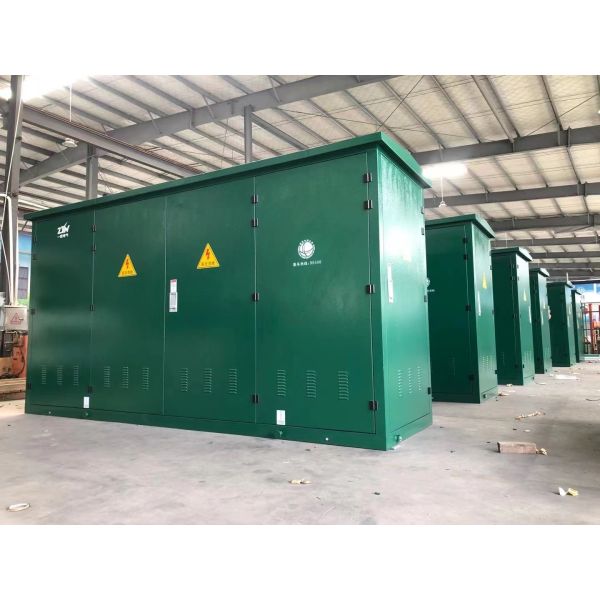

2. Residential Urban Grids: Compact footprint allows for installation in basement substations or outdoor pad-mounted kiosks.

3. Renewable Energy Sites: Stepping down voltage for auxiliary power in solar farms and wind turbine base stations.

4. Commercial Infrastructure: Reliable power distribution for shopping malls, hospitals, and data centers.

• Proven Short-Circuit Withstand: Our designs undergo rigorous simulation and physical testing to ensure the windings stay intact during severe external grid faults.

• Precision Tap Changers: Equipped with high-quality off-circuit tap changers that allow for easy voltage adjustment to compensate for local grid fluctuations.

• Comprehensive Protection: Standard units include a pressure release valve, oil level indicator, and signal thermometer. Gas relays (Buchholz) are available for units 630kVA and above.

• Export-Ready Logistics: Shipped in reinforced steel-frame crates with full technical documentation, including Routine Test Reports and Installation Manuals.
