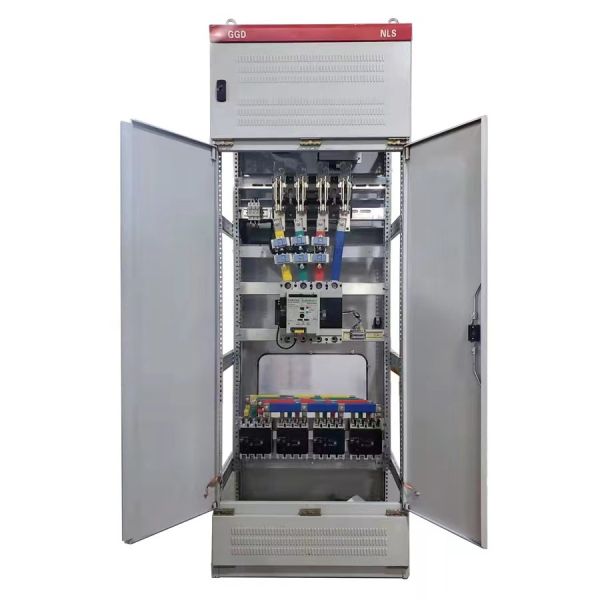

The Low-Voltage Drawer-Type Switchgear Cabinet is the premium solution for industries where power continuity and operator safety are the highest priorities. Unlike fixed-type panels, this Withdrawable (Draw-out) system allows each functional unit—whether it's a feeder or a motor starter—to be housed in an independent, removable drawer.

This modular architecture ensures that any single circuit can be isolated, tested, or replaced without de-energizing the main busbar or interrupting the power supply to other critical loads. Engineered for use in power plants, oil refineries, and data centers, our drawer-type switchgear provides a compact footprint with high-density circuit integration, meeting the most rigorous international standards for low-voltage power distribution.

• High-Density Modular Design: Each vertical section can accommodate multiple drawer units (ranging from 1/4 unit to 3-unit sizes), allowing for maximum circuit concentration in a minimal floor area.

• Rapid Maintenance (MTTR Reduction): Drawers are equipped with high-precision primary and secondary plug-in contacts. In the event of a fault, a drawer can be swapped for a spare in under five minutes.

• Four-Position Safety Interlocking: Every drawer features a mechanical indicator for Connected, Test, Disconnected, and Withdrawn positions. The system prevents the drawer from being moved while the circuit breaker is closed.

• Superior Arc-Flash Containment: The cabinet is divided into three distinct compartments: the Busbar Room, the Functional Unit Room (Drawers), and the Cable Room. This partitioning effectively prevents the spread of internal electrical arcs.

• Corrosion-Resistant Al-Zn Frame: Utilizing 2.0mm Aluminum-Zinc coated steel, the frame offers exceptional mechanical rigidity and high resistance to oxidation without requiring additional surface paint.

1. Industrial Process Control: Reliable Motor Control Centers (MCC) for chemical plants, steel mills, and cement factories.

2. Power Generation & Utilities: Main distribution boards for hydroelectric, thermal, and wind power substations.

3. Critical Infrastructure: Essential power hubs for airports, subway systems, and wastewater treatment plants.

4. Commercial Real Estate: High-capacity power distribution for skyscrapers, shopping malls, and Tier III/IV data centers.

• Silver-Plated Contact System: All primary plug-in contacts utilize high-purity silver plating to ensure low contact resistance and prevent overheating during continuous full-load operation.

• Smart Monitoring Integration: We offer "Intelligent Switchgear" configurations equipped with Modbus/Ethernet communication for real-time monitoring of energy consumption and thermal status.

• Bespoke Engineering: We build every panel board to your specific Single Line Diagram (SLD). We integrate world-class circuit breakers from brands such as Schneider, ABB, Siemens, or Chint.

• Seismically Reinforced Frames: Our cabinets are engineered to withstand high-vibration environments and are suitable for installation in high-seismic-risk zones.

Q: Can I replace a drawer unit while the main busbar is live?

A: Yes. The "withdrawable" design is specifically engineered for "hot-swapping." By moving the drawer to the "Disconnected" position, you can safely remove the unit for maintenance while the rest of the switchgear remains operational.

Q: What is the maximum number of drawers per cabinet?

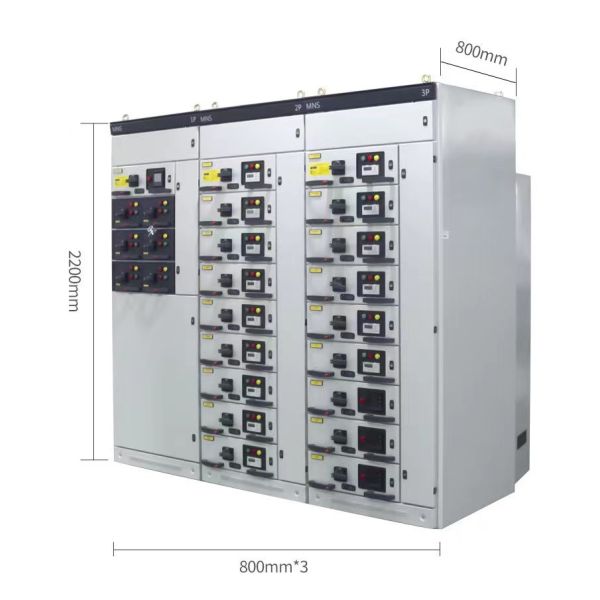

A: Depending on the drawer height (e.g., 8E/4 or 8E/2 sizes), a single 2200mm vertical cabinet can house up to 36 small feeder units or 9-18 standard motor starter units.

Q: Do you provide the internal copper busbars?

A: Yes. We use high-conductivity T2 Copper for all horizontal and vertical busbars. We also offer specialized heat-shrinkable insulation tubing for enhanced safety.

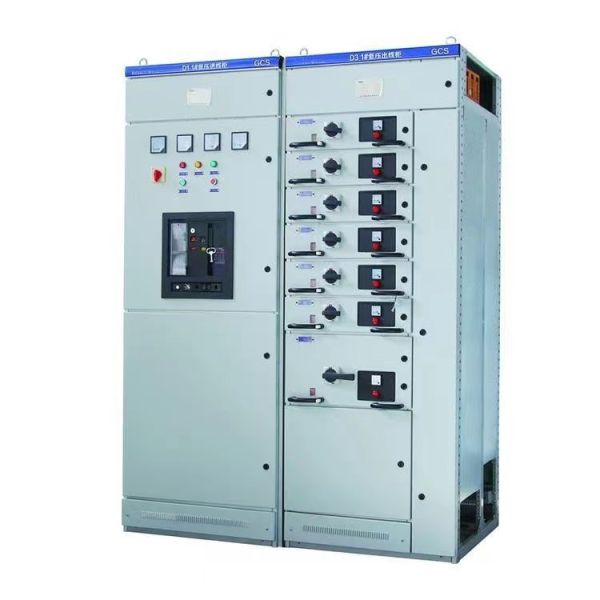

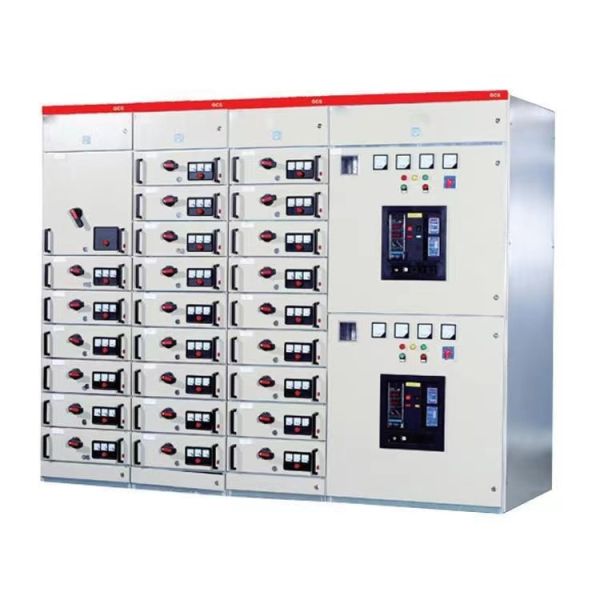

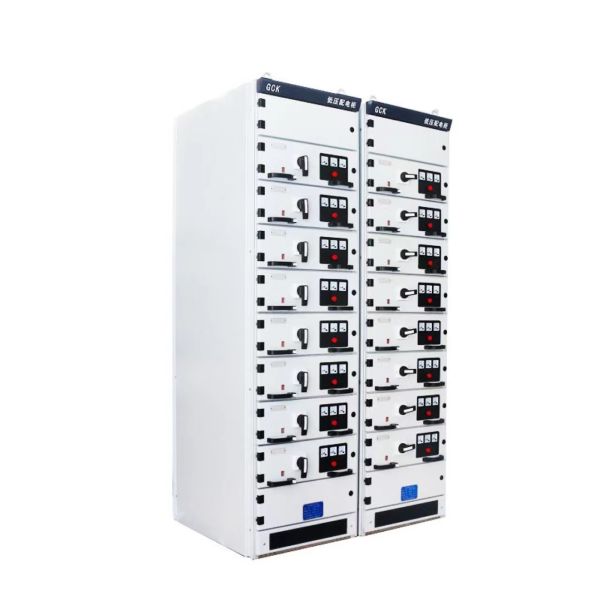

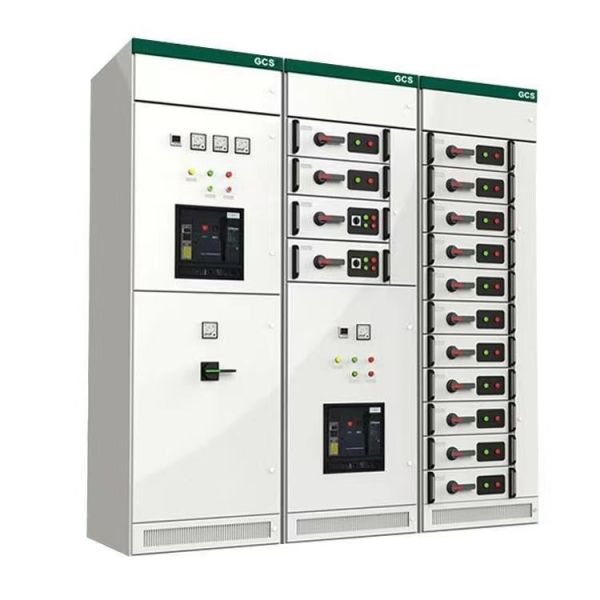

GCK/GCS/MNS Low voltage extraction switchgear

GCK/GCS/MNS Low-voltage extraction switchgear complete set of switchgear is suitable for AC 50Hz, rated working voltage 380V low-voltage distribution system. It contains the functions of power center (PC) and motor control center (MCC), the technical parameters are up to the national standards, with beautiful appearance, high electrical performance, high protection level, safe and reliable,easy maintenance and other characteristics, is the metallurgy, petroleum, chemical, electric power, machinery, light textile and other industries low-voltage power supply system distribution device. This product conforms to IEC-439, GB7251.1 standard.

The altitude does not exceed 2,000 meters above sea level.
1, the ambient air temperature is not higher than +40℃, not lower than -5℃, and the average temperature within 24 hours is not higher than +35℃.
2, atmospheric conditions: the air is clean, the relative humidity at the temperature of +40 DEG C is not more than 50%, the
temperature is low to allow a higher relative humidity, such as +20 DEG C is 90%.
3, no fire, explosion danger, serious pollution, chemical corrosion and violent vibration of the place.
4. Tilt with vertical plane not more than 5°.
5, the control center is suitable for the following temperature transport and storage process: -25℃ ~+55℃, in a short time (not more than 24h) not more than +70℃.
