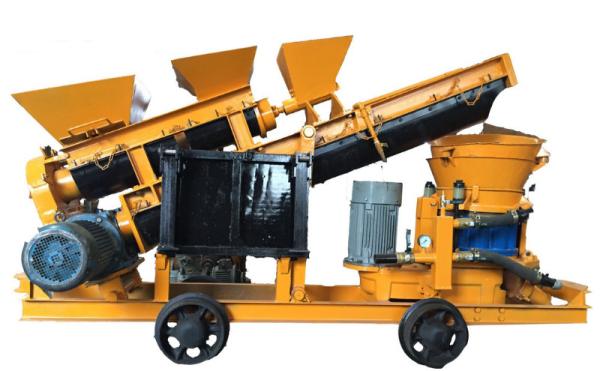

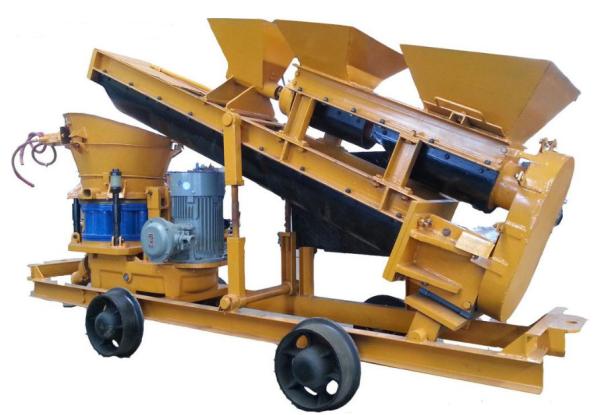

Concrete Gunite Dry Shotcrete Machine Tunnel Slope Protection Automatic Feeding
Concrete Gunite Dry Shotcrete Machine Tunnel Slope Protection Automatic Feeding
Concrete Gunite Dry Shotcrete Machine Tunnel Slope Protection Automatic Feeding
Concrete Gunite Dry Shotcrete Machine Tunnel Slope Protection Automatic Feeding
Specifications
Brand Name :
Sincola
Model Number :
SPZ-5
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 4500-6500 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 set per month
Delivery Time :
5-8 work days
Packaging Details :
wooden case packing
Name :
Dry shotcrete machine
Air consumption :
7-8m3/min
Max aggregate size :
15mm
Power(w) :
7.5kw
Application :
Spraying Concrete/ gunite concrete
Type :
Dry Shotcrete Gunite Machine
Capacity :
5 m3/h
Hose diameter :
50mm
Description

Automatic Feeding Concrete Gunite Dry Shotcrete Machine Tunnel Slope Protection

Description

This shotcrete machine is widely used in the common construction of building.It is simple structured, easy maintenance, long service life and has other characteristics. The rotor chamber and the discharge elbow materials are made of flexible rubber abrasion. When working, under the action of the pressure can be rushed to the self-cleaning effect, reducing adhesive material and congestion, greatly reduced the maintenance workload of the machine.

Parameter

Model SPZ-5
Output 5m3/h
Max.conv.dist 200m
Water cement ratio <0.35
Max.Aggregate.size 15mm
Hose inner size 50mm
Operating air pressure 0.2-0.6MPa
Air comsumption 7-8m3/min
Motor power 5.5kw
Voltage 380v
Basic chassis Skid

Feature

Using wet concrete jet sprayed concrete operations, can greatly reduce the dust concentration and resilient rate, a spray layer thickness increases, improve production efficiency, guarantee the engineering quality.

Can smoothly enter the special vibration hopper makes concrete batching system, standard of metering pump is to be able to add hardener.

Using low pressure low vortex air transport, close the working principle of the injection overcome the blocking pipe, pulse, the problem such as segregation.

Make the injection material flow uniformity, stability, improve the spray layer material.

Concrete Gunite Dry Shotcrete Machine Tunnel Slope Protection Automatic FeedingConcrete Gunite Dry Shotcrete Machine Tunnel Slope Protection Automatic FeedingConcrete Gunite Dry Shotcrete Machine Tunnel Slope Protection Automatic Feeding
