Intelligent Self-Sensing Fire Extinguishing Device 28g for 0.6 Cubic Meter Protection
Intelligent Self-Sensing Fire Extinguishing Device 28g for 0.6 Cubic Meter Protection
Specifications
Model NO. :
QRR0.6S-CW
Agent :
Aerosol
Type :
Fire Extinguishing Device
Object :
Class B Fires
Size :
28g
Certification :
CE
Portable Extinguisher :
Self-Sensing Fire Extinguishing Device
Effective Range :
2.5m
Retirement Life :
5 Years
Fire Classification :
B, C, E and a Surface Fire
Protective Space :
0.6 Cubic Meter
Applicable Temperature :
Minus 35 Degree to 90 Degree
Response Time :
3-5 Seconds
Trademark :
OEM
Specification :
110*110*25mm
Origin :
China. Shanni Xi′an City
HS Code :
8424100090
Port :
Xian, China
Transport Package :
46 Pieces/Carton
Payment Terms :
T/T
MOQ :
500
Description

Basic Info.

Model NO.
QRR0.6S-CW
Agent
Aerosol
Type
Fire Extinguishing Device
Object
Class B Fires
Size
28g
Certification
CE
Portable Extinguisher
Self-Sensing Fire Extinguishing Device
Effective Range
2.5m
Retirement Life
5 Years
Fire Classification
B, C, E and a Surface Fire
Protective Space
0.6 Cubic Meter
Applicable Temperature
Minus 35 Degree to 90 Degree
Response Time
3-5 Seconds
Trademark
OEM
Specification
110*110*25mm
Origin
China. Shanni Xi′an City
HS Code
8424100090

Product Description

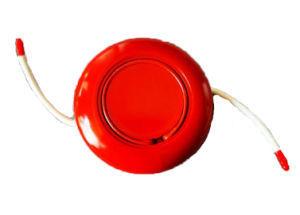

Self-sensing fire extinguisher Device
QRR0.3/SC-W & QRR0.6/SC-W instruction
  1. Production Introduction

Small space Self-sensing fire extinguisher Device is an innovative, clean and pollution -free high-tech fire extinguishing product, mainly for electrical fires. This product uses polymer multi-component flame-retardant composite polymers and new cooling materials, and the released fire extinguishing medium is high efficiency can extinguish the fire with fast speed. The Device is preset inside the protected electrical equipment, and when it encounters an open flame or reaches the preset temperature of the environment, it will automatically start to extinguish the fire. It is especially suitable for unattended small spaces, no power supply, no pressure storage, no pipe network, self-detection, clean and environmentally friendly, easy installation, and maintenance-free. Due to its small size, it is not affected by any position, and can be installed in various narrow and complex flammable spaces or equipment. This feature makes up for the defect that existing fire protection products cannot extinguish such fire sources.

2. Product specifications, models, technical specifications
DimensionΦ85mm x 30mm
Protected Volume0.6m³
Activation temperature180ºC±20ºC
Working temperature:-35ºC~+90ºC
Service Life6 years


3. Application

This product is suitable for unattended relatively closed and small power distribution facilities, such as power distribution cabinets (boxes), precision instrument distribution boxes, program-controlled switching cabinets, electrical control boxes, such as: communications, finance, chemical industry Fire hazard protection in small spaces in various fields such as energy, education, etc.

4. Instructions

This product comes with a self-adhesive sticking device, which is simple and convenient to install. During the installation process, there is no change, perforation or damage to the original equipment. According to the technical requirements of each environment, place the device above the ignition point that is prone to ignite. Before installation, wipe the installation part with a clean rag to make the surface free of dust and stains, open the package, wipe the sticking part again with the adhesion promoter, tear off the adhesive plastic film on the back, and stick the product smoothly on the the center or side of the distribution cabinet (box) to be protected, and press firmly to make it flat. If the space of the electrical equipment cabinet is large enough, this product can be linked simultaneously, and the maximum protection space can reach 3m³.



5. Storage

The device should be stored in a dry and cool place, ventilated and should avoid high temperature and sunlight, and keep away from fire sources.

6. Precautions

(1) It is strictly forbidden to store this product near heat sources
(2) Severe pressure is strictly prohibited
(3) It is prohibited to use after the expiration date
(4) When a fire occurs, the device will automatically start, and it can only be touched after cooling down.
