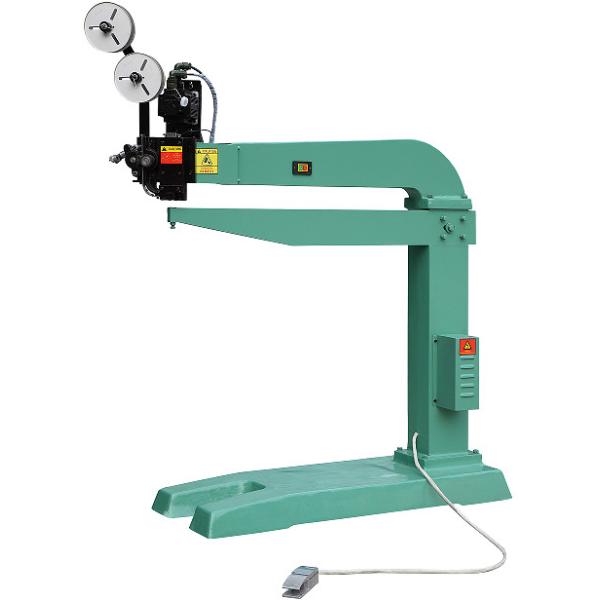

Double Servo Automatic Push Manual Stitcher Machine With High Quality And Low Noises.

• Bridge adopts high quality profile and plate and the skeleton is made of H steel.​​​

​

• The carton sitching machine is used to make corrugated box with the stitching wire.

​

• Feed the cardboard manually, feet switch control the working​​

• The machine adopts advanced electronic clutch and electronic brake devices to replace the traditional mechanical clutch so as to realize controllable operation.

​

• It has the characters of high efficiency, low energy consumption, new structure,electronic assembly, low failure rate, a larger range of winding .Easy adjust and operate.

​

• Adopts double servo drive system, accurate, precision mechanical transmission parts, can effectively reduce the mechanical failure, nailing speed, update technology, better quality.

​

• Electric PLC control system, Japan OMRON, switch power supply SAMKOON touch-screen, Taiwan FOTEK proximity switch.

​​

• AIR-TEC Cylinder, solenoid valve, Taiwan foot switch.

​

• Nail head all adopt imported from Japan for the whole mold production, computer gong precision machining.

​

• The blade, the punch From Taiwan TAOYUAN precision machining, the blade can be replaced.(wear resistance, corrosion resistance).

​

• Japan NSK bearings

PARAMETER:XU-X7-1800

Model

WM-X7-1200

Stapling speed

200-400 nails/min

Stitching wire

18# (1.8*0.8mm)

Max Cardboard thickness

16mm(before press)

Wire Size

2.2*0.7mm

Length of strength arm

1200mm

Max Sheet size(A+B)

1000mm

Motor power

2kw

shape size

1550*620*1950MM

Machine weight

500KG

Factory Introduction:

Our production line is a carton back-end process production line which integrate the advanced technology and excellent professionals,The engineers have deep professional knowledge an optimized technical background who are responsible for the all production lines design, commissioning and maintenance. They can optimize the production line according to customer requirement and the actual situation to improve production efficiency and quality.The production line is also equipped with other professionals, such as quality control personnel and equipment maintenance personnel, etc. They are responsible for different responsibilities and jointly ensure the normal operation of the production line and the quality of the cartons.

Packing and Shipping:

Product Packaging:

• The corrugated printer slotter will be packed in a sturdy cardboard box.
• The box will be secured with adhesive tape to prevent any damage during transit.
• The product will be wrapped in protective bubble wrap or foam to provide extra cushioning.

Shipping:

• The product will be shipped via a reputable courier service.
• The shipping cost will be calculated based on the destination and weight of the package.
• Customers will receive a tracking number to monitor the delivery status of their package.
• Delivery times may vary depending on the location of the customer.
