Indoor Electrical Insulator Epoxy Resin And Hardener APG Raw Material
Indoor Electrical Insulator Epoxy Resin And Hardener APG Raw Material
Indoor Electrical Insulator Epoxy Resin And Hardener APG Raw Material
Indoor Electrical Insulator Epoxy Resin And Hardener APG Raw Material
Indoor Electrical Insulator Epoxy Resin And Hardener APG Raw Material
Indoor Electrical Insulator Epoxy Resin And Hardener APG Raw Material
Indoor Electrical Insulator Epoxy Resin And Hardener APG Raw Material
Indoor Electrical Insulator Epoxy Resin And Hardener APG Raw Material
Indoor Electrical Insulator Epoxy Resin And Hardener APG Raw Material
Indoor Electrical Insulator Epoxy Resin And Hardener APG Raw Material
Indoor Electrical Insulator Epoxy Resin And Hardener APG Raw Material
Indoor Electrical Insulator Epoxy Resin And Hardener APG Raw Material
Specifications
Brand Name :
wenyou
Model Number :
9216F
Certification :
ISO9001, ISO14001, SGS, and UL
Place of Origin :
China
MOQ :
20kg/pail as sample
Price :
Negotiable
Payment Terms :
Normally L/C, T/T
Supply Ability :
Plenty of raw material in stock
Delivery Time :
7 -10 work days
Packaging Details :
20kg/pail, 220kg/barrel, 1200kg/tank
Classification :
Double Components Adhesives
Usage :
insulators, transformers, and other insulation products
Application :
Indoor electrical insulators for medium and high voltage applications
Appearance of epoxy resin :
Transparent viscous liquid
Appearance of hardener :
Light yellow transparent liquid
Viscosity at 25°C :
4500 - 8000mPa.s
Density at 25°C :
1.16 - 1.20g/cm3
Vapor Pressure at 25°C :
≤ 0.01Pa
Flash point :
around 135°C
Epoxy Value :
4.0 - 4.5Eq/kg
Description :
Indoor electrical insulator Epoxy Resin and hardener APG raw material
Description

Brief Introduction

Indoor electrical insulator Epoxy Resin and hardener APG raw material

LE-9216F is a modified BPA (bisphenol A) type epoxy resin.

LH-9216Fis a liquid modified carboxylic anhydride hardener.

Applications

Indoor electrical insulators for medium and high voltage applications, such as insulators, transformers, and other insulation products.

Processing Methods

Conventional gravity casting process under vacuum.

Automatic pressure gelation process (APG).

Production process is adjustable according to client’s present production methods.

Properties

Two-component saturated cyclic epoxy resin system without pre-mixed fillers, liquid at room temperature. Excellent resistance to thermal shock, superior environmental resistance, and superior mechanical and dielectric properties.

Formulation

Epoxy resin LE-9216F 100 pbw
Hardener LH-9216F 100 pbw
Filler Silica Powder 300-370 pbw
Color paste LC series *

3 pbw

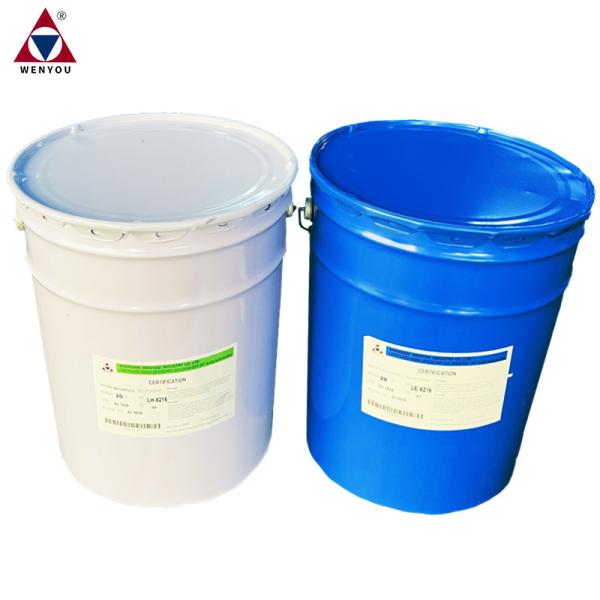

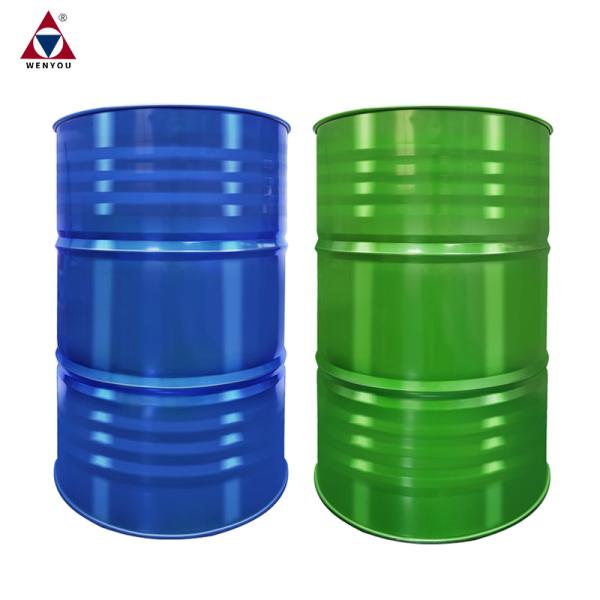

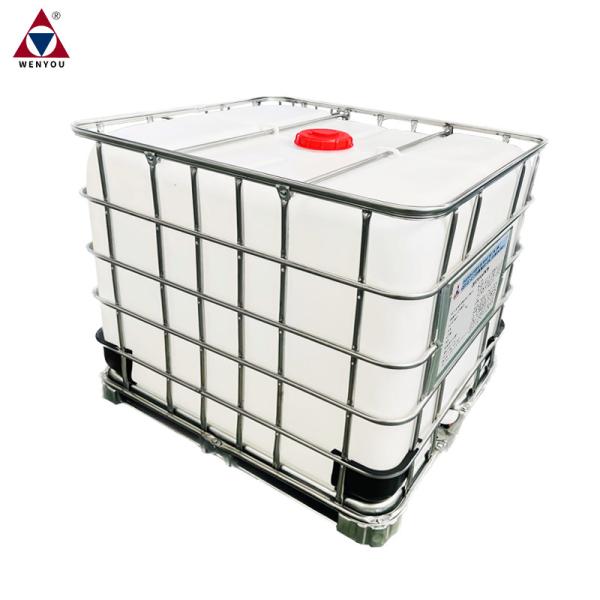

Package Image

Indoor Electrical Insulator Epoxy Resin And Hardener APG Raw Material

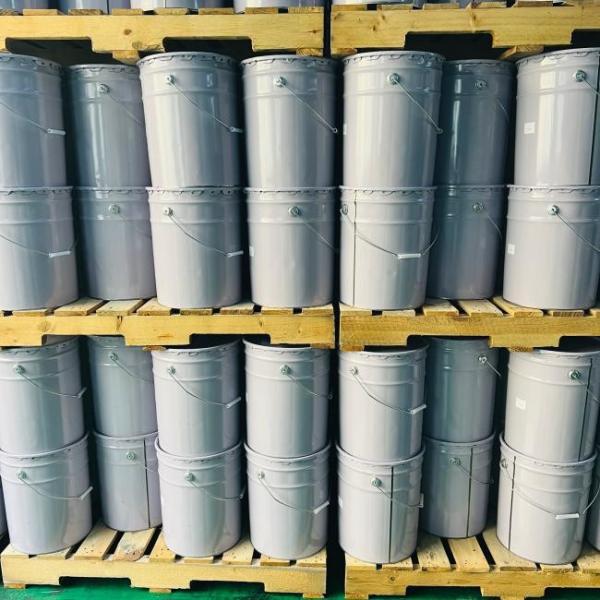

Shipment Image

Indoor Electrical Insulator Epoxy Resin And Hardener APG Raw Material

Example application image

Indoor Electrical Insulator Epoxy Resin And Hardener APG Raw Material
