9218 Electrical Epoxy Resin High Impact Strength 10-18kJ/m² Low Loss Factor
9218 Electrical Epoxy Resin High Impact Strength 10-18kJ/m² Low Loss Factor
9218 Electrical Epoxy Resin High Impact Strength 10-18kJ/m² Low Loss Factor
9218 Electrical Epoxy Resin High Impact Strength 10-18kJ/m² Low Loss Factor
9218 Electrical Epoxy Resin High Impact Strength 10-18kJ/m² Low Loss Factor
9218 Electrical Epoxy Resin High Impact Strength 10-18kJ/m² Low Loss Factor
Specifications
Brand Name :
Wenyou
Model Number :
9218F
Certification :
UL/SGS/REACH/RoHS
Place of Origin :
China
MOQ :
240KG
Price :
$2.6
Payment Terms :
L/C,T/T
Supply Ability :
200Ton/Month
Delivery Time :
within 10 days
Packaging Details :
20kg/220kg
Apply :
high voltage transformer
Flexibility :
High
Curing Shrinkage :
0.8-1.0%
Application :
Electrical Insulation
Usage :
eletric insulation
Glass Transition Temperature :
100-120°C
Description

9218 Electrical Epoxy Resin High Impact Strength 10-18kJ/m² Low Loss Factor

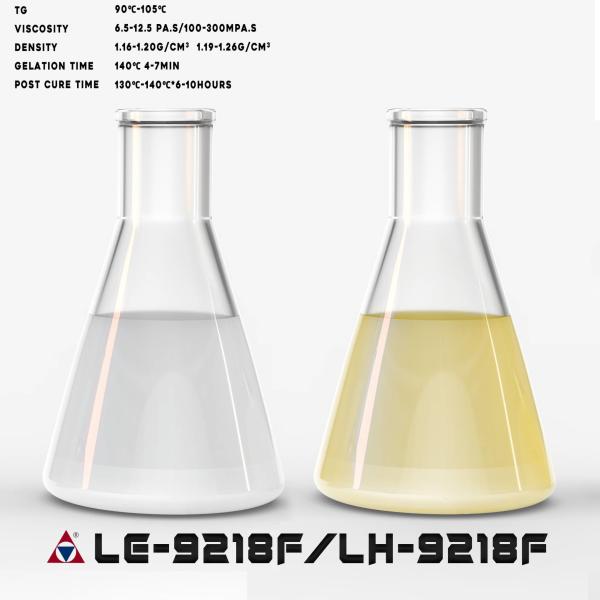

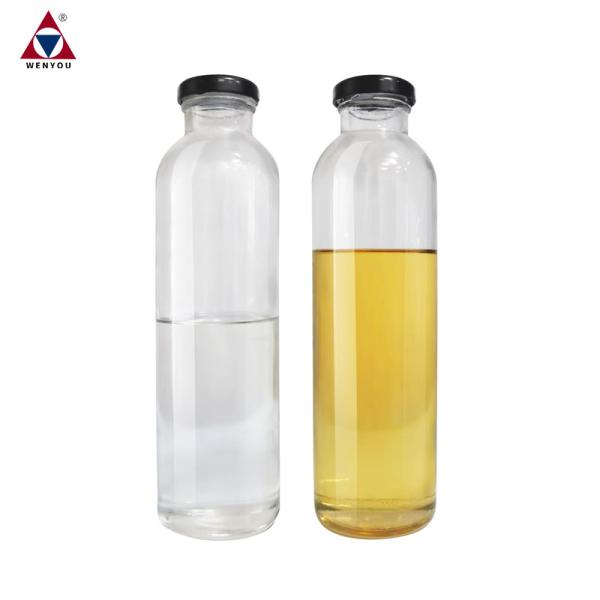

WENYOU 9218 Electrical Epoxy Resin is a premium-grade adhesive solution engineered for critical electrical insulation and bonding applications. This light yellow to colorless liquid combines exceptional mechanical strength with superior dielectric properties, making it ideal for sealing and protecting sensitive electronic components in demanding environments.

Key Features & Advantages:

  • High Impact Resistance: Withstands 10-18kJ/m² (ISO179) for durable component protection
  • Low Electrical Loss: Minimal dissipation factor of 0.02 ensures energy efficiency
  • Thermal Stability: Glass transition temperature (Tg) of 100-120°C (ISO11357-2)
  • Flame Retardant: HB flammability rating (4mm thickness) enhances safety
  • Precision Curing: Controlled shrinkage (0.6-0.8%) maintains dimensional accuracy

Technical Specifications Table:

Property Test Standard Value Range
Compressive Strength ISO604 150-200 N/mm²
Flexural Strength ISO178 110-140 N/mm²
Tensile Strength ISO527 60-85 N/mm²
Epoxy Value ISO3001 4.4-4.9
Density at 25°C ISO1675 1.16-1.2 g/cm³
Dielectric Strength - 20-30 kV/mm
Cure Temperature - 130-140°C
Viscosity at 25°C ISO12058 5.5-8.5 MPa·s

Applications:

Transformer and bushing insulation
Circuit board encapsulation
High-voltage cable jointing
Switchgear component bonding
Aerospace electrical systems

FAQ Section:

Q: What certifications does this resin hold?
A: REACH/RoHS/UL/SGS certifications with custom compliance options.

Q: What's the minimum order quantity?

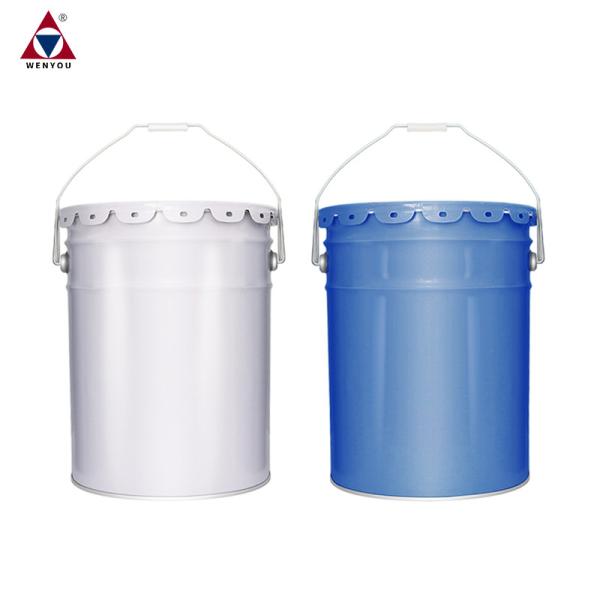

A: 240 KG with standard 20KG/220kg packaging.

Q: How soon can orders ship?
A: Guaranteed dispatch within 10 business days.

Q: Is customization available?
A: Yes, technical parameters can be adjusted for specialized applications.

Q: What payment methods are accepted?
A: L/C and T/T transactions.
