Specifications
Supply Ability :
Plenty of raw material in stock
Classification :
Double Components Adhesives
Brand Name :
wenyou
Flash point :
around 135°C
Model Number :
9229A
Vapor Pressure at 25°C :
< 0.01Pa
MOQ :
20kg/pail as sample
Delivery Time :
7 -10 work days
Density at 25°C :
1.55 - 1.70g/cm3
Payment Terms :
Normally T/T,L/C
Usage :
10-35KV sealed terminal posts, transformers, current transformers, and other insulation components
Viscosity at 40°C :
10000 - 20000mPa.s
Price :
Negotiable
Application :
Electrical insulators for medium and high voltage applications
Appearance of epoxy resin :
Milky white viscous liquid
Discription :
Long durability Transformer Epoxy Resin good Crack Resistance outdoor use
Certification :
ISO9001, ISO14001, SGS, and UL
Place of Origin :
China
Packaging Details :
20kg/pail, 220kg/barrel, 1200kg/tank
Description
High Dielectric Strength Epoxy for CT/PT Insulation & Room Temp Casting
LW-9229A/B: Crack-Resistant Room Temp Cure Epoxy for 10-35kV CT/PT Insulation & Outdoor Encapsulation
UL-Certified | Pre-Mixed Fillers | Superior Dielectric Strength
Engineered for outdoor electrical insulation in Current Transformers (CT) and Potential Transformers (PT), this modified BPA epoxy system delivers crack-resistant encapsulation for 10-35kV terminal posts, bushings, and transformer components. With pre-mixed fillers in both resin (LW-9229A) and hardener (LW-9229B), it ensures consistent thermal shock resistance and long-term durability in harsh environments.
Key Advantages
  • Crack Resistance: Withstands thermal cycling for outdoor applications
  • High Dielectric Strength: Critical for 10-35kV insulation systems
  • Pre-Mixed Fillers: Simplified processing, no weighing errors
  • Room Temperature Cure: Energy-efficient transformer manufacturing
  • Moisture & Chemical Resistance: Protects CT/PT units from environmental degradation
Applications
Ideal for:
  • 10-35kV sealed terminal posts
  • CT/PT transformer potting & coil encapsulation
  • Outdoor bushings, insulators, switchgear
  • High-voltage electrical insulation components
Processing Methods
Method Benefit
Vacuum Gravity Casting Bubble-free encapsulation for complex geometries
Automatic Pressure Gelation (APG) High-yield production of crack-resistant parts
Critical Properties
Property Value/Description
Filler Status Pre-mixed in resin & hardener
Dielectric Strength >22 kV/mm (ASTM D149)
Thermal Shock Resistance Excellent (1,000+ cycles, IEC 60216)
Crack Resistance Optimized for outdoor exposure
Viscosity Slurry liquid for deep gap filling
Certification UL 94 V-0 (Flame Retardant)
Formulation Guide
Component Product Proportion
Epoxy Resin LW-9229A 100 pbw
Hardener LW-9229B 100 pbw
Colorant LC-Series* 1 pbw
*Color paste optional for UV-stable pigmentation
Why Choose LW-9229A/B?
This electrical-grade epoxy combines BPA's structural strength with pre-mixed fillers for unmatched crack resistance in outdoor applications. Its slurry viscosity ensures perfect gap filling for CT/PT windings, while room temperature curing reduces production costs. Ideal for 10-35kV terminal posts and transformer encapsulation, it delivers lifelong moisture resistance and dielectric performance under thermal cycling.
Advantage
Crack Resistant High Dielectric Strength Room Temperature Cure Epoxy Resin for Electrical Insulation

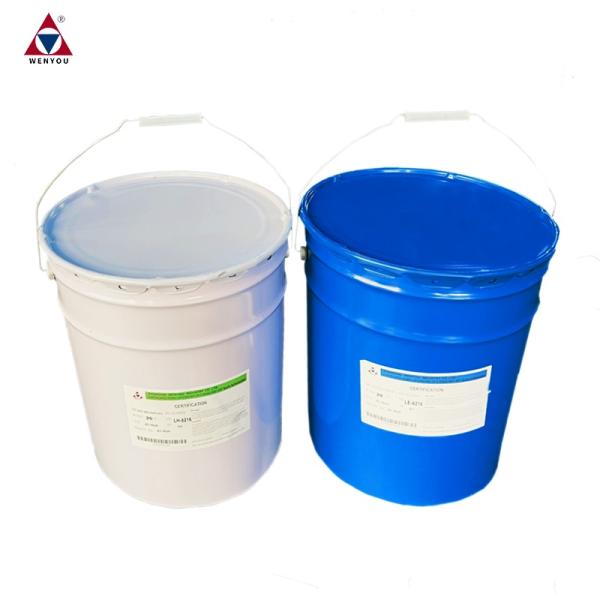

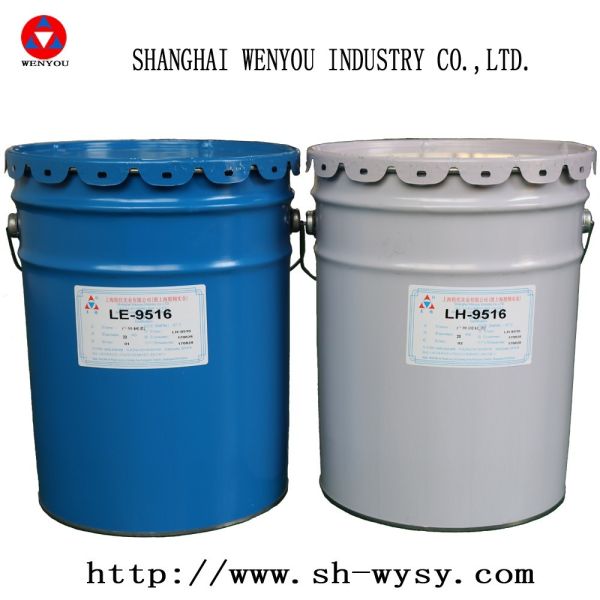

Package Image
Crack Resistant High Dielectric Strength Room Temperature Cure Epoxy Resin for Electrical Insulation
Shipment Image
Crack Resistant High Dielectric Strength Room Temperature Cure Epoxy Resin for Electrical Insulation
Example Application Image
Crack Resistant High Dielectric Strength Room Temperature Cure Epoxy Resin for Electrical Insulation
