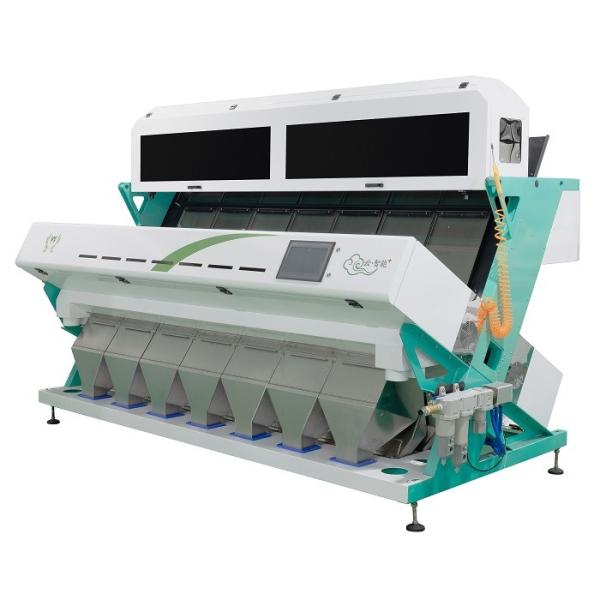

Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h
Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h
Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h
Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h
Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h
Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h
Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h
Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h
Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h
Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h
Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h
Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h
Specifications
Brand Name :
WENYAO
Model Number :
WYCS7-448
Certification :
CE & ISO9001
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PCS Per Month
Delivery Time :
7-10 work days
Packaging Details :
Plywood case package Packing size(L*W*H):3.35*1.72*2.05M
Color :
Blue frame or according to customer requests
chutes :
7
Channels :
448
Sorting accuracy(%) :
≥99.99
Remote :
Wifi remote control
CCD :
Toshiba
Camera :
RGB camera
Certificate :
CE & ISO9001
Lamp source :
LED variable light
Application :
grain sorting
Hopper :
Stainless 304 food grade
Warranty :
2 years
Type :
New
Throughput :
5-8t/h
Description

High Sorting Accuracy CCD Grain Color Sorter Machine

Grain color sorter working principle:

Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h

What is a CCD in a camera?
Stands for "Charged Coupled Device." CCDs are sensors used in digital cameras and video cameras to record still and moving images. The CCD captures light and converts it to digital data that is recorded by the camera. For this reason, a CCD is often considered the digital version of film.

Color Sorter Machine Working Flow

1. Raw Material are put into the machine from its feeding hopper on the top.

2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .

3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.

4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.

Wenyao Brand CCD&RGB Cashew Nut Colour
Intellient Sorting Machine in China
Technical Parameters:

Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/hWenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h

Sorting effect

Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/hWenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h

MODEL WYCS7-448
Chutes/Channels 7/448
Throughput(t/h) 5-8t/h
Sorting Aaccuracy ≥99.99%
Power 3.9kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <4M3/Min
Weight 1350kg
Diamension(L*W*H) 2905*1540*1852mm

Throughtput:Different impurity with different throughput.

Features:
►5400Pixel CCD image acquisition system.

►WIFI remote control system.

►Low temperature LED light source system.

►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.

►Self design high frequency ejectors,It means high speed and accurate sorting performance.

►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.

►Variable light background easy to operate.

More models parameters as following:

Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h

Fried Onion Sorting Effect:

Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/hWenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h

​

Examples of color sorting:

Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/hWenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h

Customer site

Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/hWenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/hWenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h

Wenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/hWenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/hWenyao CCD RGB Cashew Nut Colour Intelligent Sorting Machine for Grain Sorting in Throughput 5-8t/h
