Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine
Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine
Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine
Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine
Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine
Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine
Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine
Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine
Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine
Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine
Specifications
Brand Name :
WENYAO
Model Number :
WYCS10-640
Certification :
CE & ISO9001
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PCS Per Month
Delivery Time :
15-20 working days
Packaging Details :
Plywood case package Packing size
Structure :
Freefall
Type :
CCD
Transport Package :
Wooden Box
HS Code :
8437101000
Origin :
Hefei
Features :
Easy to Operate
Brand of Power Supply :
Taiwan Meanwell
Process Chip :
America Fpga
Type of Ejectors :
Metal
Pixels of Camera :
5400
Light Source :
LED
Name :
Optical Sorting Machine
CCD Sensor :
Full Color RGB
Description

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine

Details as following
MODEL WYCS10-640
Chutes(channels) 10(640)
Sorting accuracy(%) ≥99.9
Carryover rate (bad:good) ≥30:1
Output(T/h) 4-6
Voltage 180-240V/50Hz
Power supply(kw) 6.5
Work Air Pressure(Mpa) 0.2-0.3
Air consumption(L/min) 2600-5000
Air supply(Mpa) 0.6--0.8
Dimension(L*W*H) mm 3630*1545*1860
Weight(kgs) 1800
Package Plywood case
Package Size mm 3764*1554*1871

Color sorter work principle:

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine

A plastic color sorter is an advanced optical sorting machine designed to automatically separate plastic materials based on color differences. Utilizing high-resolution cameras or sensors, it scans individual plastic items (such as flakes, pellets, or whole pieces) on a production line. The system analyzes the color data in real time, comparing it to pre-set color standards, and then uses precisely timed air jets or mechanical diverters to eject undesired or off-color particles. This technology ensures high-purity plastic output, improves recycling efficiency, reduces manual labor, and enhances the quality of sorted plastic for further processing or reuse. It is widely applied in plastic recycling, manufacturing, and resource recovery industries.

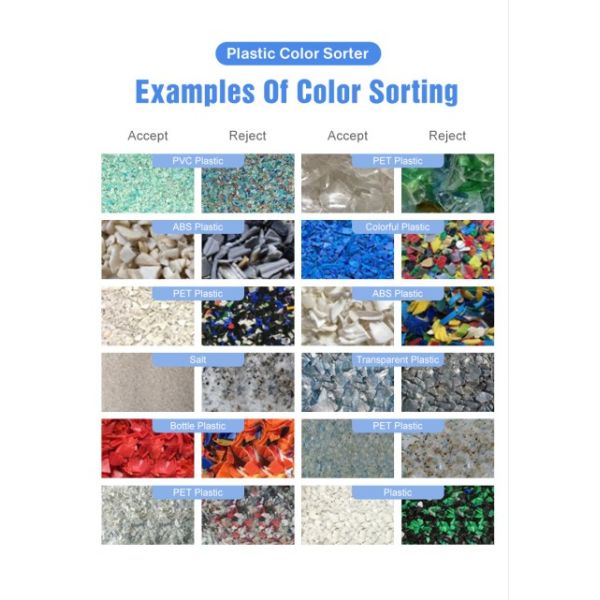

Examples of color sorting:

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical MachineWenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine

Feature :

  • Latest UHD imaging and analysis technology,high-speed processing,accurate identification.
  • High level AI self-learning function,one-key automation,user friendly interface,easy operation.
  • Multi-function,multi-purpose,widely used for all kinds of rice,grain,nut,plastic etc.
  • Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
  • Clound computing,massive dated analysis,multi-camera identification,high accuracy.
  • Simple effective-installation&start-up&commissioning services:remote teaching and guidance via live video online through interest to worldwide.
  • Ampere Altra processor from USA ,Samsung from Korea,Toshiba Camera Core From Japan,Top Specification.
  • Wide viewing angle,Wide-spectrum,can sort all kinds of impurities and tiny bad spot etc.
  • High-end machines can realize remote control, multi-screen interaction and non-contact control.

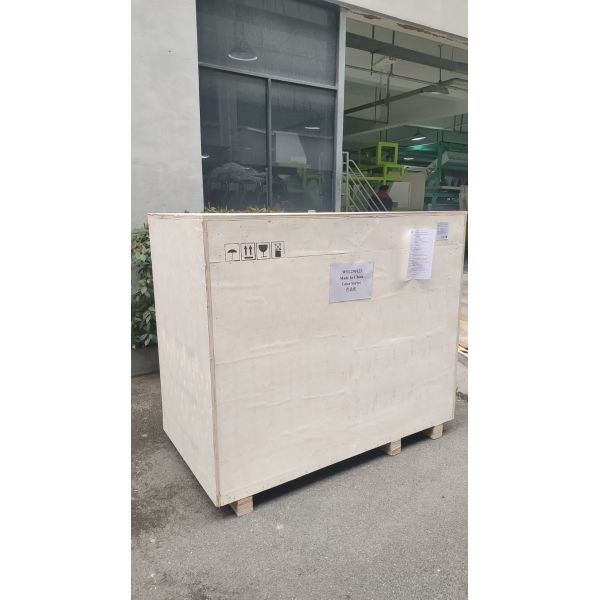

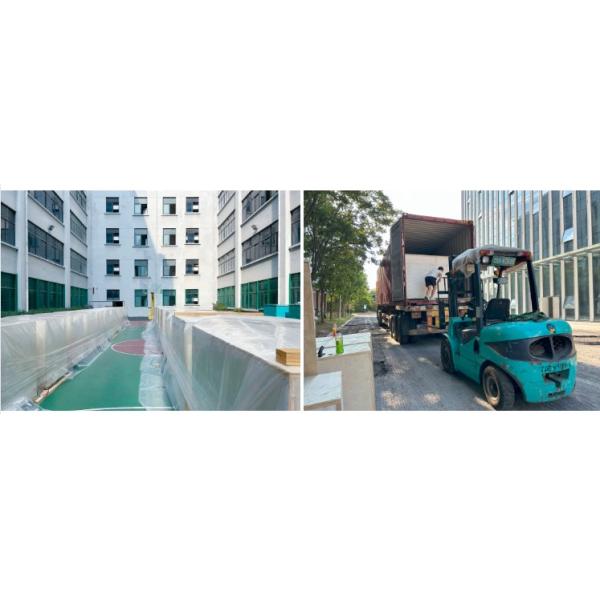

Package :

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical MachineWenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical MachineWenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine

FAQ:

1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.

2. How long about the guarantee period?

2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.

4. How about after sales service?

Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.

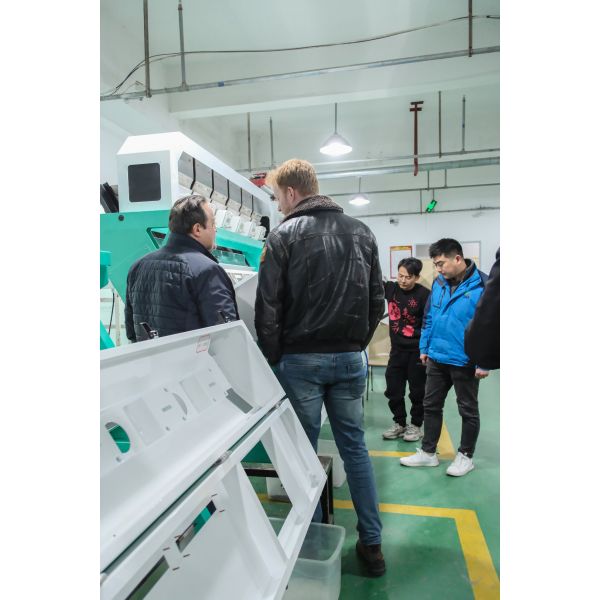

Customer's Site :

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical MachineWenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical MachineWenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical MachineWenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical MachineWenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical MachineWenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical MachineWenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical MachineWenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical MachineWenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine


Why choosing Wenyao

1. Over 20 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.

2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.

3. We have service station over Southeast Asia, co-operate re-seller in more than 100 countries.

4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.

5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.

6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.

7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.

Catalogue:

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine
