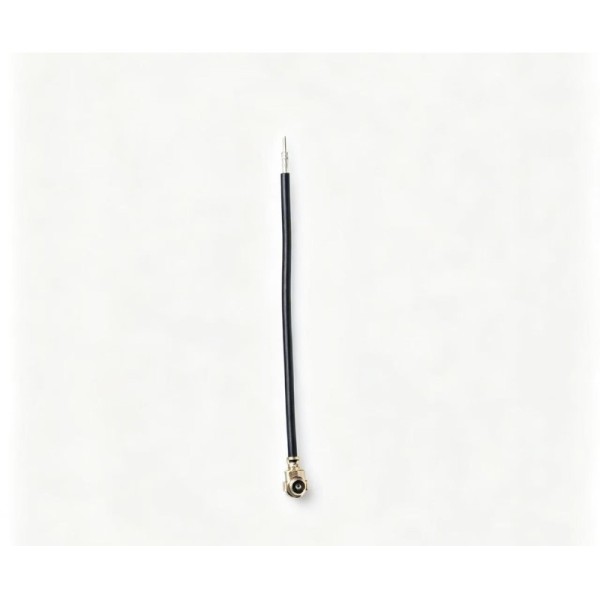

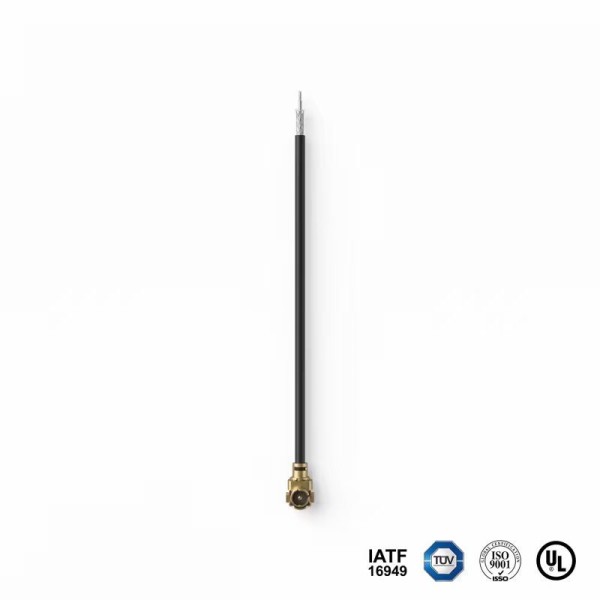

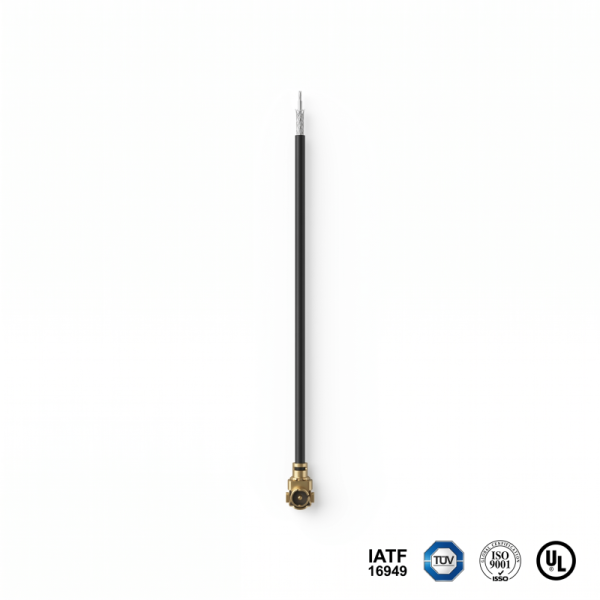

Micro‑Flex Coaxial RF Cable
Micro‑Flex Coaxial RF Cable
Micro‑Flex Coaxial RF Cable
Micro‑Flex Coaxial RF Cable
Micro‑Flex Coaxial RF Cable
Micro‑Flex Coaxial RF Cable
Micro‑Flex Coaxial RF Cable
Micro‑Flex Coaxial RF Cable
Specifications
MOQ :
1000–5000 pcs
Trade Terms :
FOB / EXW
Certification :
UL; TUV; IATF 16949
Unit Weight :
3 g
Payment Terms :
T/T
Connector Mounting Type :
wire-to-board
Insulation :
FEP
Delivery Time :
3-5 weeks
Wire Specification :
RF1.13 Ultra‑Fine Coaxial Cable, OD: 1.15 mm
Rated Voltage :
300 V
Supply Ability :
1000–5000 pcs/day
Cable Length :
150 mm
IP Rating :
none
Packaging Details :
PE bag
Conductor :
silver‑plated copper
Characteristic Impedance :
50 Ω
Model Number :
IPEX
Product Category :
high‑speed, long‑distance signal transmission cable
Operating Temperature Range :
−40 ℃ to +80 ℃
Pin Count :
2
Description

Gold‑plated phosphor‑bronze spring contacts mate with the inner conductors of coaxial cables for RF high‑frequency signal transmission.
The gold‑plating prevents oxidation and delivers low impedance, compatible with high‑frequencies up to 56 GHz.
This ultra‑fine RG1.13 cable features Teflon insulation with 7‑strand twisted conductors, foamed PE / PTFE dielectric to maintain a constant 50 Ω characteristic impedance.
It adopts double‑layer shielding: full‑coverage inner aluminum‑foil plus outer high‑density copper‑braid, which acts as the RF ground‑wire and is crimped conductive with the IPEX connector shell to suppress signal interference.

This cable is used for:
1. Built‑in FPC flexible antennas (laptops, routers and smart devices)
2. Ceramic‑GPS dielectric antennas (vehicle T‑BOX and positioning terminals)
3. External rubber‑rod antennas (gateways, DTUs and industrial‑control boxes)
