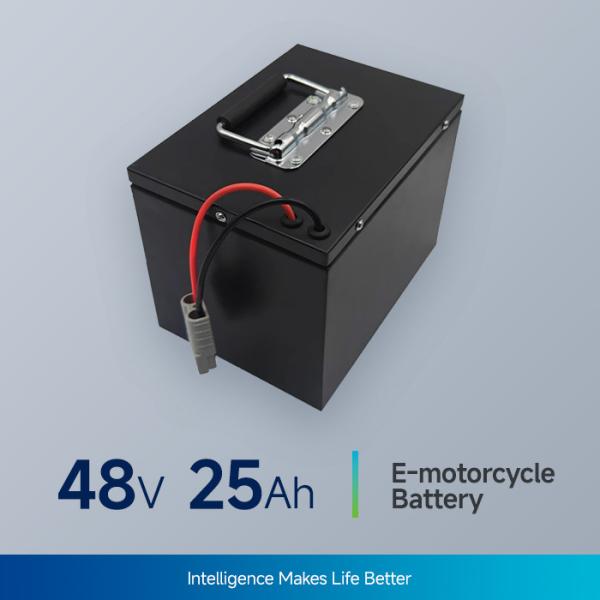

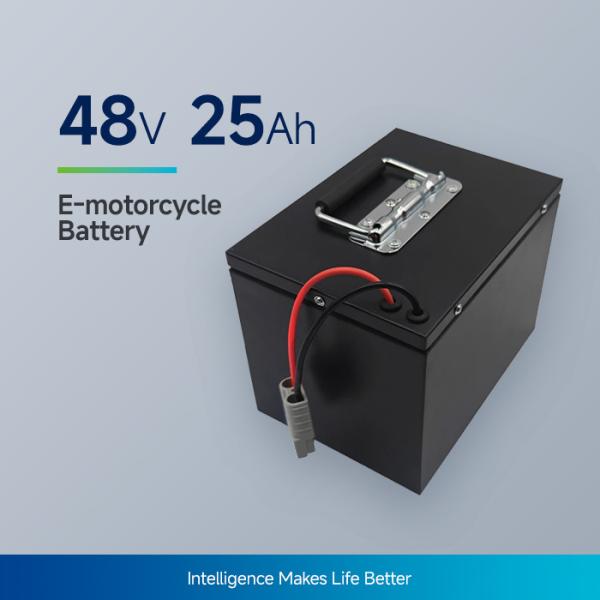

E bike E Motorcycle Battery 48V 25Ah , LiFePO4 Electric Scooter Lithium Battery
E bike E Motorcycle Battery 48V 25Ah , LiFePO4 Electric Scooter Lithium Battery
E bike E Motorcycle Battery 48V 25Ah , LiFePO4 Electric Scooter Lithium Battery
E bike E Motorcycle Battery 48V 25Ah , LiFePO4 Electric Scooter Lithium Battery
Specifications
Brand Name :
wenergy
Model Number :
48V25Ah
Certification :
Compliance with MSDS, UN38.3, CE, CB, IEC 62619
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 Set/Sets Per Month
Delivery Time :
30 working days
Packaging Details :
Wooden case
Voltage :
48V
Capacity :
25Ah
Total Energy :
1.2KWh
Application :
Motorcycle ,scoooters ,e bike ,
IP Rating :
IP65
Charging Voltage: :
54.6V
Description

48V 25Ah LiFePO4 Electric Scooter Lithium Battery Rechargeable E bike battery

Specification

The whole battery pack was assembled in one battery case which including batterycell,one set of PCB,charge and discharge wire which with andersonconnectors,collection wire harness,charger etc.
Item Parameter
Voltage Range 39V---54.6V(48V)
Battery system whole energy(KWh)23±2℃,1/3C Rated:1.2kWh
Battery system whole capacity(Ah)23±2℃,1/3C Rated:25Ah
SingelCell model SEPNi7688190-12.5Ah
battery cell configuration 2P13S
Battery system working temperature(℃) discharge-20~45℃,charge0~45℃
Battery surrounding environment relative humidity 10%~85%
Battery storage temperature -20～45℃
Battery standar charging current (23+/-2℃) 5A
Battery Max charging current(23+/-2℃) 12.5A
Battery standard discharging current(23+/-2℃) 12.5A
Battery continuous discharging current(23+/-2℃)(23+/-2℃) 20A
Battery system insulation resistance testing value ≥40mΩ
Insulation Resistance Testing ≥20MΩ
Waterproof grade of battery case IP65
Battery system waterproof grade IP65
Cooling system Air cool
