96.46kWh All In One Commercial Battery Storage Systems IP55 Protection Liquid Cooling
96.46kWh All In One Commercial Battery Storage Systems IP55 Protection Liquid Cooling
96.46kWh All In One Commercial Battery Storage Systems IP55 Protection Liquid Cooling
96.46kWh All In One Commercial Battery Storage Systems IP55 Protection Liquid Cooling
Specifications
Brand Name :
Wenergy
Model Number :
Stars 192pro-125
Certification :
UN38.3,IEC 62619,IEC/EN 62619,IEC 60730-1,IEC 63056,IEC/EN 61000,IEC 60529,IEC 62040 or 62477,RF/EMC,UKCA (IEC 62477-1),UKCA (CE-EMC Transfer),UL1973,UL9540,UL9540A
Price :
Negotiable
Payment Terms :
L/C,T/T
MOQ :
Negotiable
Rated Energy :
96.46kWh
DC Voltage Range :
240~350.4V
Rated Power :
125kW
AC Rated Voltage :
400V
Rated Output Frequency :
50Hz
IP Protection Grade :
IP55
Corrosion-proof Grade :
C4H
Description

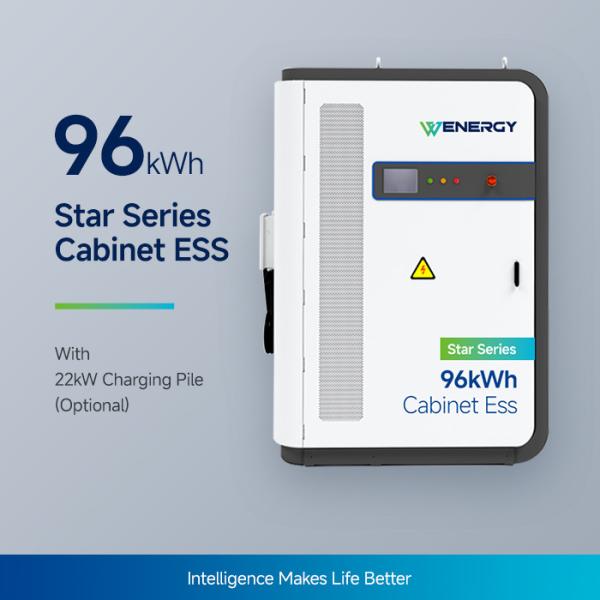

Star192 All-in-One Energy Storage System

96kWh integrated solar + storage + diesel + charging solution providing a comprehensive multi-energy hybrid system for diverse applications.

Application Scenarios
  • Residential Energy Storage: Store solar energy for home use, reducing electricity bills and providing backup power during outages.
  • Commercial Buildings: Support shopping malls, office buildings, and hospitals by ensuring uninterrupted power supply and lowering energy costs.
  • Public Facilities: Provide reliable power for schools, government buildings, and remote areas, ensuring continuous operations.
  • Industrial Applications: Integrate with solar panels and diesel generators to store excess energy, reducing grid dependency and ensuring critical equipment remains operational.
  • Electric Vehicle (EV) Charging: Directly charge electric vehicles using stored energy, enhancing energy efficiency and supporting sustainable transportation.
System Benefits
Cost Savings
Reduce electricity expenses by storing energy during low-demand periods.
Energy Independence
Minimize reliance on traditional power grids.
Uninterrupted Power
Ensure continuous operation of essential systems and equipment.
Sustainability
Support renewable energy integration and reduce carbon footprint.
Technical Specifications

Standard: PCS, DCDC | Optional: MPPT, STS, ATS, Charging Pile (22kw)

Model Star192 96.46kWh (Integrated PV, ESS, Diesel and EV Charging Capabilities)
Rated Energy 96.46kWh
Voltage Range 240~350.4V
Rated Power 125kW
Rated Output Frequency 50Hz
IP Protection Grade IP55
Corrosion-proof Grade C4H
Cooling Type Liquid Cooling
Noise <75dB (1m Away from System)
Dimension W1600*D1435*H2200mm
Communication Interface Ethernet
Communication Protocol Modbus TCP/IP

*Standard: PCS, DCDC. Optional: MPPT, STS, ATS, Charging Pile

System Configuration

The system consists of a battery system (2 to 4 packs), a power conversion system (PCS), a photovoltaic converter (MPPT), a voltage converter (DCDC), a parallel grid and off-grid switch (STS), a multi-power transfer switch (ATS), an AC charging pile, a liquid cooling unit, a fire suppression system, an EMS (Energy Management System), and a power distribution unit (PDU), among other components. The system features external communication capabilities and is designed for safe and stable operation over extended periods.

96.46kWh All In One Commercial Battery Storage Systems IP55 Protection Liquid Cooling
System Layout Components
No. Identifier Component Name
1 A Load Breaker 01 (optional)
2 B Load Breaker 02
3 C Main Breaker 01
4 D Main Breaker 02 (optional)
5 E STS (optional)
6 F Photovoltaic Converter MPPT (optional)
7 G Voltage Converter DCDC
8 H PCS
9 I Liquid Cooling Unit
10 J EMS
11 K PDU
12 L Battery System (optional 2 to 4 packs)
13 M Multi-Power Transfer Switch ATS (optional)
14 N Fire Suppression System
15 P Display Screen
16 Q Indicator Light
17 R Emergency Stop Button
18 S AC Charging Pile (optional)
Certifications & Compliance
International General Certifications
  • UN38.3
  • IEC 62619
  • IEC/EN 62619
Functional Safety and Energy Efficiency Certifications
  • IEC 60730-1
  • IEC 63056
  • IEC/EN 61000
Structural and Protection Certifications
  • IEC 60529
European Market Certifications
  • IEC 62040 or 62477
  • RF/EMC
  • UKCA (IEC 62477-1)
  • UKCA (CE-EMC Transfer)
North American Market Certifications
  • UL1973
  • UL9540
  • UL9540A
Tailored Energy Solutions for Businesses

Within our manufacturing facility, we specialize in researching and producing battery energy storage systems, offering OEM and ODM services alongside our standard product line.

Why Partner with Us
  • Origin Manufacturers: We are your direct source for top-tier products.
  • Customized Solutions: Tailored to meet your unique specifications.
  • Business-Centric Focus: Addressing customer pain points, including unstable grid quality, economic viability, safety, and stability.
ARE YOU LOOKING FOR THE RIGHT PARTNER TO TRANSFORM YOUR ENERGY STORAGE STRATEGY?

Contact us today to learn how our solutions can meet your needs.
Request a quote or schedule a consultation with our experts!
