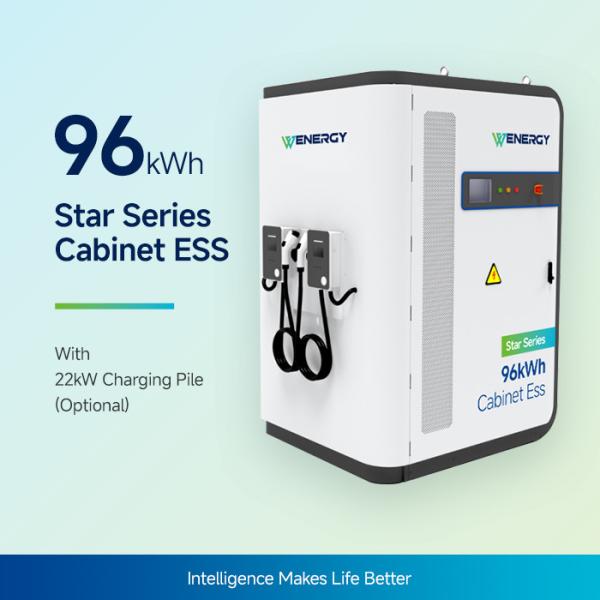

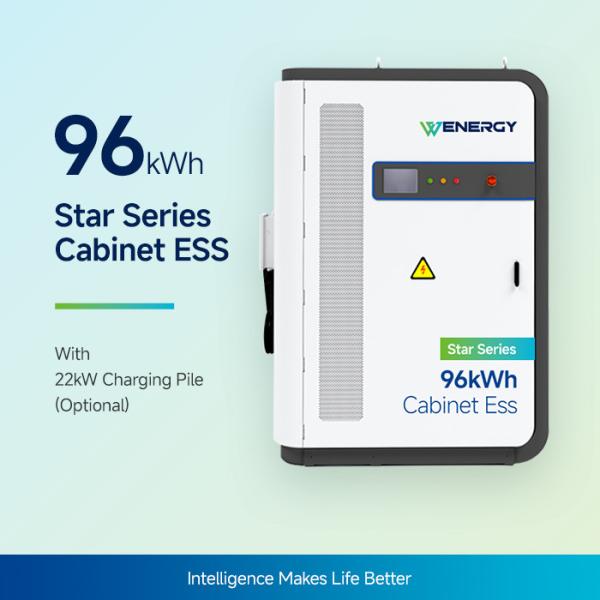

96kWh Solar Diesel Hybrid Power System ESS Cabinet with Liquid Cooling and IP55 Protection
96kWh Solar Diesel Hybrid Power System ESS Cabinet with Liquid Cooling and IP55 Protection
96kWh Solar Diesel Hybrid Power System ESS Cabinet with Liquid Cooling and IP55 Protection
96kWh Solar Diesel Hybrid Power System ESS Cabinet with Liquid Cooling and IP55 Protection
Specifications
Brand Name :
Wenergy
Model Number :
Stars 192pro-125
Certification :
UN38.3,IEC 62619,IEC/EN 62619,IEC 60730-1,IEC 63056,IEC/EN 61000,IEC 60529,IEC 62040 or 62477,RF/EMC,UKCA (IEC 62477-1),UKCA (CE-EMC Transfer),UL1973,UL9540,UL9540A
Price :
Negotiable
Payment Terms :
T/T,L/C
MOQ :
Negotiable
Rated Energy :
96.46kWh
Voltage Range :
240~350.4V
Rated Power :
125kW
IP Protection Grade :
IP55
Corrosion-proof Grade :
C4H
Cooling Type :
Liquid Cooling
Description
96kWh Lithium Ion Solar Diesel Hybrid Power System ESS Cabinet
Application Scenarios
Industry and Commerce
Product Highlights
  • Charging Flexibility: Integrates with charging guns to meet varied charging needs
  • Solar Compatibility: Compatible with MPPT for direct solar charging
  • Off-Grid Power: Works with STS for uninterrupted 24-hour off-grid power supply
  • Seamless Integration: ATS connection enables smooth integration with the grid and diesel generators
  • Energy Efficiency and Warranty: Boasts 89% energy efficiency
Product Specifications
Model Stars CL192Pro-125
Rated Energy 96.46kWh
DC Voltage Range 240~350.4V
Rated Power 125kW
AC Rated Voltage 400V
Rated Output Frequency 50Hz
IP Protection Grade IP55
Corrosion-proof Grade C4H
Cooling Type Liquid Cooling
Noise <75dB(1m Away from System)
Dimension(W*D*H) (1800±10)*(1435±10)*(2392±10)mm
Communication Interface Ethernet
Communication Protocol Modbus TCP/IP
System Certification IEC 62619, IEC 60730-1, IEC 63056, IEC/EN 62477, IEC/EN 61000, UL1973, UL 9540A, CE Marking, UN 38.3, TÜV Certification, DNV Certification
Standard: PCS, DCDC Optional: MPPT (60kW), STS, ATS, AC EV Charger (22kW*2)
System Configuration
The system consists of a battery system (2 to 4 packs), a power conversion system (PCS), a photovoltaic converter (MPPT), a voltage converter (DCDC), a parallel grid and off-grid switch (STS), a multi-power transfer switch (ATS), an AC charging pile, a liquid cooling unit, a fire suppression system, an EMS (Energy Management System), and a power distribution unit (PDU), among other components. The system features external communication capabilities and is designed for safe and stable operation over extended periods.
96kWh Solar Diesel Hybrid Power System ESS Cabinet with Liquid Cooling and IP55 Protection
System Layout
No. Number Name
1 A Load Breaker 01 (optional)
2 B Load Breaker 02
3 C Main Breaker 01
4 D Main Breaker 02 (optional)
5 E STS (optional)
6 F Photovoltaic Converter MPPT (optional)
7 G Voltage Converter DCDC
8 H PCS
9 I Liquid Cooling Unit
10 J EMS
11 K PDU
12 L Battery System (optional 2 to 4 packs)
13 M Multi-Power Transfer Switch ATS (optional)
14 N Fire Suppression System
15 P Display Screen
16 Q Indicator Light
17 R Emergency Stop Button
18 S AC Charging Pile (optional)

Tailored Energy Solutions for Businesses
Within our manufacturing facility, we specialize in researching and producing battery energy storage systems, offering OEM and ODM services alongside our standard product line.
Why Partner with Us
  • Origin Manufacturers: We are your direct source for top-tier products
  • Customized Solutions: Tailored to meet your unique specifications
  • Business-Centric Focus: Addressing customer pain points, including unstable grid quality, economic viability, safety, and stability
ARE YOU LOOKING FOR THE RIGHT PARTNER TO TRANSFORM YOUR ENERGY STORAGE STRATEGY?
Contact us today to learn how our solutions can meet your needs.
Request a quote or schedule a consultation with our experts!
