Specifications
Showroom Location :
None
machinery test report :
Not Available
After Warranty Service :
Online support
Function :
Check Weighing
Condition :
New
Brand Name :
Welly
automatic grade :
Automatic
warranty :
1 Year
Application :
food vegetable fruit seafood and others
power(w) :
1.3kw(1.74hp)
MOQ :
1
voltage :
220V 380V customized, customizable
Place of Origin :
Henan, China
dimension(l*w*h) :
1250x8800x1250mm(49.21x346.46x49.21in)
Marketing Type :
Hot Product 2019
production capacity :
180pcs/min
Price :
$5,500-13,200
Captity :
120pcs/min
Energy :
electric
Type :
weighing scales
type :
grading
Applicable Industries :
Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop
Warranty of core components :
1 Year
video outgoing-inspection :
Not Available
weight :
457 KG(1007.51lb)
core components :
Motor
Product name :
weight sorting machine
Machine material :
stainless steel
Keyword :
fish grading machine, weight sizing, automatic fish sorting machine
Description

♦ Large Scale Tomato Grading Fruit Potato Shrimp Onion Weight Checker Machinery Frozen Fish Fillet Weight Sorting Machine

Vertical Aquaculture Fish Conveyor Belt Check Weigher Sorting Fruit &Vegetable Olive Grading for Sale Tilapia Grading Machine

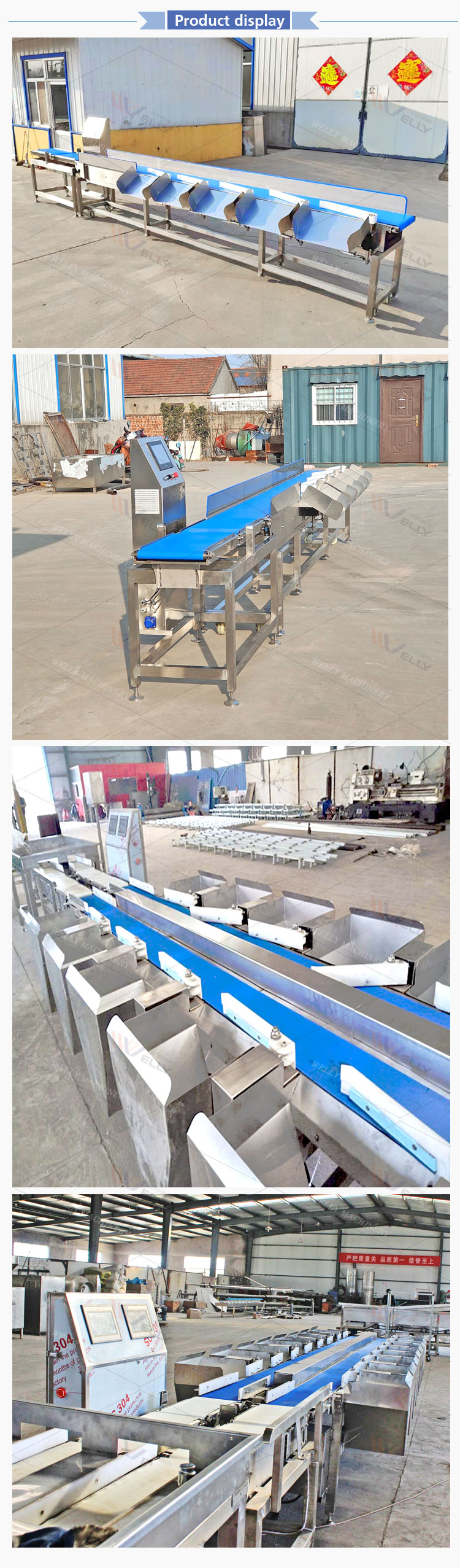

Product Description

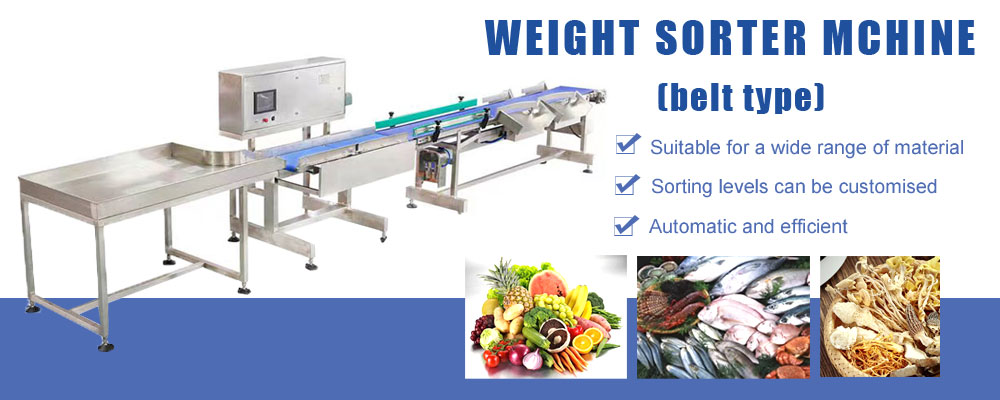

I. Product introduction

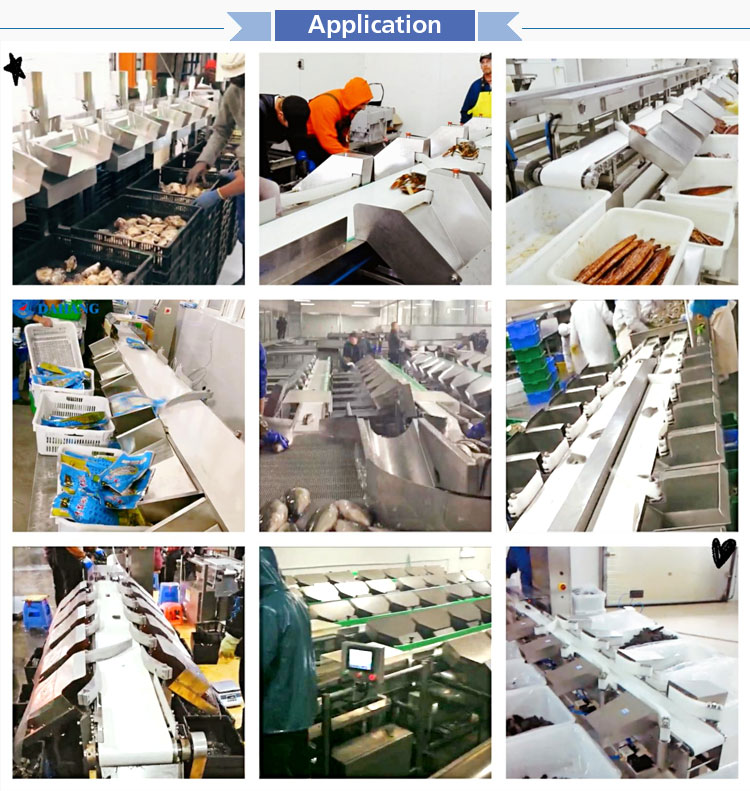

Belt weight sorting machine is mainly applied to the automatic weighing of product classification. Namely separate the weight grades according to the setting of the product specification. Each product is weighed separately and automatically reject to the specified weight grade or weight category. Efficiently replace the manual sorting, increase the product standardization and sorting speed. Reduce the error of manual operation, which is widely used in aquatic products, seafood, poultry, medicinal materials, hardware, plastic products, chemical raw materials etc.

II. Features

1.Waterproof and moisture-proof structure design. Operate well in high humidity and harsh environment.
2.100 sets of product parameters seting and stored. And can be freely switched according to the using requirements.
3. High precision weighing module and stable control system.
4. Flapper rejector sorting: 3 million life testing.
5. Quantity of sorting grades: no limit, at present we have done 26 weight stations
6. Weighing data output:RS232/485, USB interface, wireless data transmission, local area network station

management platform, cloud platform.

Model WYZF-400*150 WYZF-400*200 WYZF-600*200 WYZF-700*200 WYZF-700*300 WYZF-800*200
Weighing capacity 200g 500g 5000g 5000g 5000g 5000g
Weighing accuracy ±0.3g ±0.5g ±3g ±5g ±10g ±10g
Weighing speed 120pcs/min
Sorting grades no limit (more than 2 grades)
Weighing belt size (mm) L400*W150 L400*W200 L600*W200 L700*W200 L700*W300 L800*W200
Applicable product size(mm) L200*W120 L200*W150 L400*W150 L500*W150 L500*W250 L600*W150

Weighing direction

 Left to right or right to left depending on the customer's site.
Weighing sensor Original Germany HBM
Operation display 8 inches touch screen
Belt conveyor Food grade PU belt
Height of conveyor Customized according to the usting needs
Power supply Single phase AC220-240V,50/60HZ(Customized)
Construction SUS304,polishina Waterproof and moisture-proof structure

Vertical Aquaculture Fish Conveyor Belt Check Weigher Sorting Fruit &Vegetable Olive Grading for Sale Tilapia Grading MachineVertical Aquaculture Fish Conveyor Belt Check Weigher Sorting Fruit &Vegetable Olive Grading for Sale Tilapia Grading MachineVertical Aquaculture Fish Conveyor Belt Check Weigher Sorting Fruit &Vegetable Olive Grading for Sale Tilapia Grading MachineVertical Aquaculture Fish Conveyor Belt Check Weigher Sorting Fruit &Vegetable Olive Grading for Sale Tilapia Grading MachineVertical Aquaculture Fish Conveyor Belt Check Weigher Sorting Fruit &Vegetable Olive Grading for Sale Tilapia Grading Machine

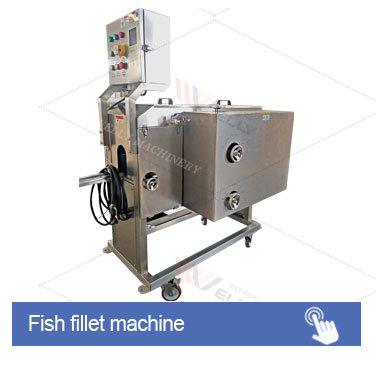

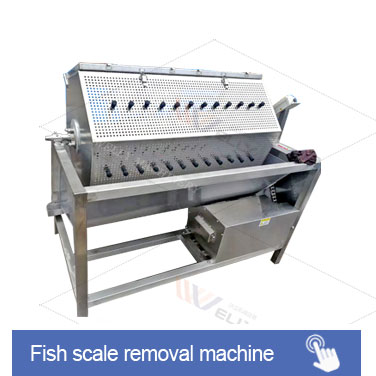

Related Products

Vertical Aquaculture Fish Conveyor Belt Check Weigher Sorting Fruit &Vegetable Olive Grading for Sale Tilapia Grading MachineVertical Aquaculture Fish Conveyor Belt Check Weigher Sorting Fruit &Vegetable Olive Grading for Sale Tilapia Grading MachineVertical Aquaculture Fish Conveyor Belt Check Weigher Sorting Fruit &Vegetable Olive Grading for Sale Tilapia Grading MachineVertical Aquaculture Fish Conveyor Belt Check Weigher Sorting Fruit &Vegetable Olive Grading for Sale Tilapia Grading Machine

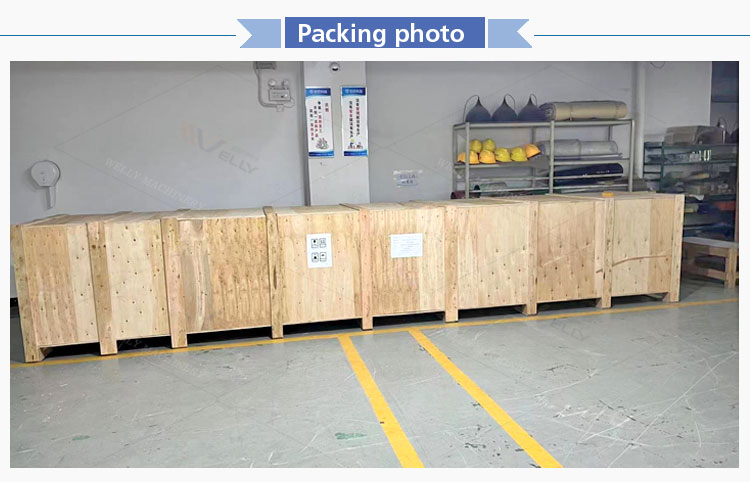

Packaging & Shipping

Vertical Aquaculture Fish Conveyor Belt Check Weigher Sorting Fruit &Vegetable Olive Grading for Sale Tilapia Grading Machine

Certification

Vertical Aquaculture Fish Conveyor Belt Check Weigher Sorting Fruit &Vegetable Olive Grading for Sale Tilapia Grading Machine

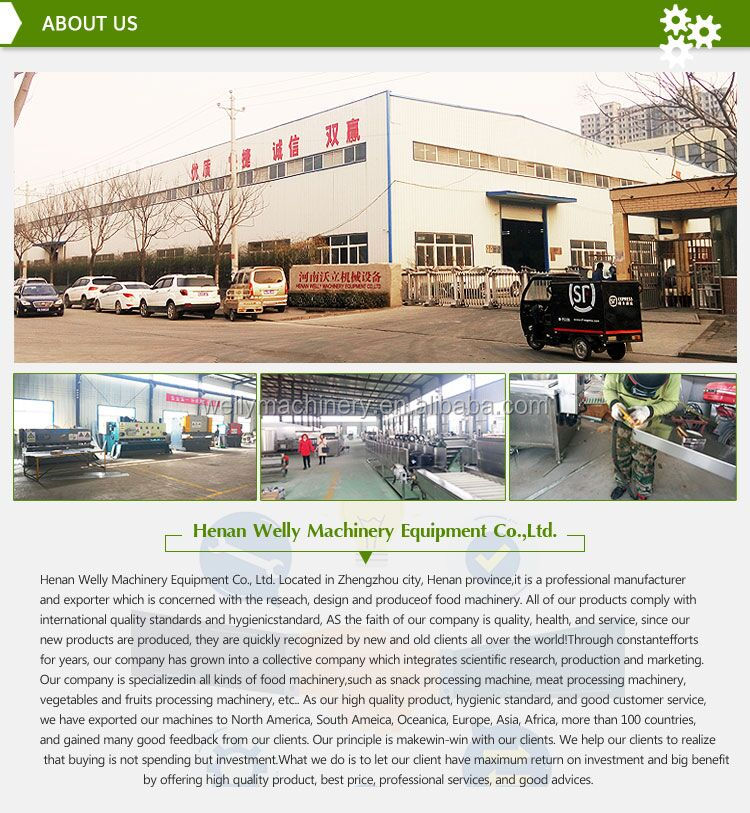

Company Information
