Retrievable Wireline Downhole Completion Products , Stainless Steel Downhole Tools
Retrievable Wireline Downhole Completion Products , Stainless Steel Downhole Tools
Specifications
Brand Name :
VCTSY
Model Number :
WPGV-100, WPGV-150
Place of Origin :
China
MOQ :
30 sets
Price :
RMB/USD
Payment Terms :
T/T
Supply Ability :
As per request
Delivery Time :
As per request
Packaging Details :
Plywood Case
Operating Type :
Tubing Pressure
Description

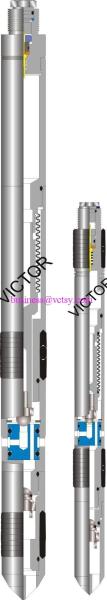

WPGV-100---WPGV-150(Wireline Retrievable Tubing-pressure-operated Gas Lift Valves), Stainless Steel

The wireline retrievable tubing-pressure-operated gas lift valve is normally operated by tubing pressure. This product can be used with side pocket mandrel to reduce the maintenance cost.

This series of valves includes 1" OD valves and 1.5" OD valves.

Features

  • Body is made of stainless steel.
  • Three-ply bellows structure
  • Bellows have mechanical limiting device.
  • Tungsten Carbide valve ball structure
  • Valve seats of various specifications are available.
  • Integral check valve included.
  • Check valve can withstand 8500psi pressure.
  • Maximum nitrogen-filling pressure is 1500psi.
  • Maximum pressure differential is 5000psi.
  • Matched with the side pocket mandrel

Technical parameters

Code

OD

(in.[mm])

Seat diameter

(in.[mm])

 Latch Mandrel
WPGV-100

1.0

[25.4]

1/8[3.2]

3/16[4.8]

 BK-2 SPM
WPGV-150

1.5

[38.1]

1/8[3.2]

3/16[4.8]

1/4[6.4]

RK

RK-1

 SPM
