High Precision SMT Auto Splicing Machine 220V 50Hz With 10s Connection Cycle
High Precision SMT Auto Splicing Machine 220V 50Hz With 10s Connection Cycle
Specifications
Brand Name :
WELLMAN
Model Number :
RS-1000
Certification :
CE/FDA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Charge power supply :
220V 50Hz
camera :
Left, right 130W pixel camera
power rating :
150W
Per pass rate :
≥97％
mechanicalness noise :
50 decibel
Description

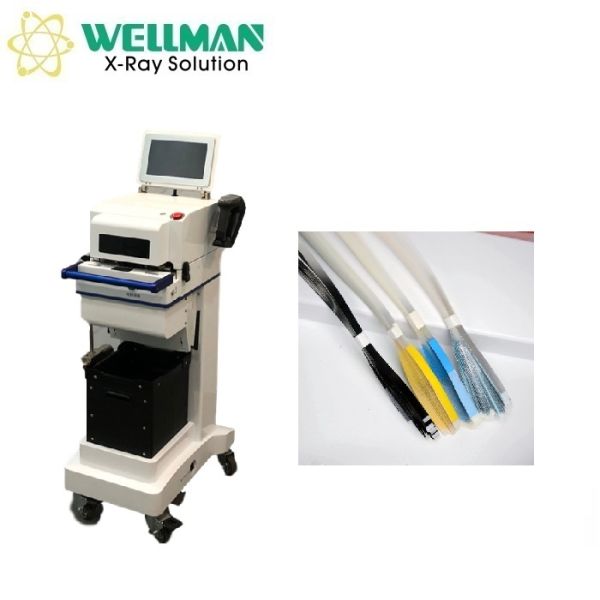

SMT Auto Reel Splicing Machine RS-1000
High connection precision and simple operation for paper and adhesive materials in SMT production lines.
Technical Specifications
Dimensions 550mm * 470mm * 1300mm (L*W*H, including scanner)
Work Height 890mm
Connection Cycle 10 seconds (including material collection and detection)
Connection Precision 0.08mm
Power Source 18650 battery pack DC 36V (12-14 hours operation)
Camera System Dual 130W pixel cameras with LED white light source
Success Rate ≥97%
Operating System Industrial PC with 10.1" touch display, Wind 10
Weight 62kg (excluding battery)
Material Compatibility
Compatible with paper and adhesive type materials, width 8mm, thickness 0.25-1.3mm. Handles 99% of market-available materials (special materials require confirmation).
Key Advantages
  • Simple Operation: New operators achieve proficiency within 10 minutes, reducing machine downtime
  • Labor Savings: One operator can manage two SMT lines simultaneously
  • Precision Detection: CCD optical system automatically detects material presence and calibrates cut positions
  • Material Recovery: Single-button operation for automatic material belt recycling
  • High Efficiency: Completes connections in 10 seconds with 98% success rate
  • Error Prevention: Integrated barcode scanning prevents material mismatches
