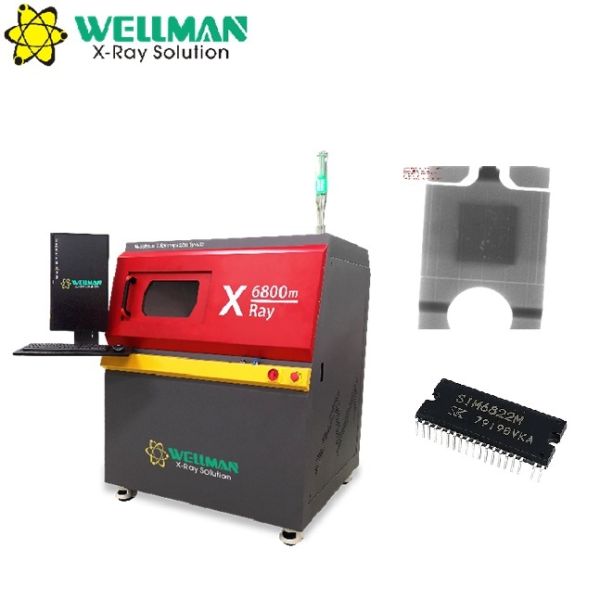

PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
Specifications
Brand Name :
WELLMAN
Model Number :
X6800
Certification :
CE,FDA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
10 days
Packaging Details :
Wooden case
Power :
Electronic,0.5KW,1500W
Warranty :
1 Year,12 Months,10000 Hours,one year
Properties :
Medical X-ray Equipments & Accessories
Application :
SMT PCB PKG LED Electronics Battery Harness Cultural Assets etc,Food Processing Industry,Flip Chip,BGA,SMT PCB BGA
Weight :
15kg,1000kg,260 KG,Aprox. 600kg,450kg
Power supply :
AC220V(Optional),110V - 220V,220V 50Hz
Tube type :
Closed X-ray tube,Closed
Name :
BGA X-ray Equipment,X-ray Inspection Machine,pcb x-ray machine
Operating system :
Windows 10
Voltage :
220V/50Hz,50-90KV
X-ray leakage amount :
≤1 u Sv/h,≤0.3 u Sv/h
Capacity :
Large,20KVA
Dimensions :
1040mm X 855mm X 1510mm,600*600*800(L*W*H),Approx.340mm(D)X400mm(W)X360mm(H)
Total power :
2.5Kw,1.7Kw
Pixel size :
85μm
Resolution :
1536*1536
Max tube current :
200μA
Description

Industrial SMT PCB X-Ray Tester WELLMAN X6800 60° Tiltable FPD 530×530mm Table 3.0s/Point Max Inspection Speed

Key Advantages
  • Closed type X-ray tube with over 10,000 hours lifetime, maintenance-free
  • New generation 5" HD digital flat panel detector (FPD)
  • Tiltable FPD (60° range) maintains magnification without compromise
  • Automatic navigation window - table moves to clicked locations
  • Table with 530×530mm size and 10KG load capacity
  • 5-axis linkage system with adjustable speed
  • Programmable inspection procedures enabling automated batch inspection
  • Intuitive operation for quick defect identification (requiring 2-hour training)
Hardware Specifications
X-ray Source
TypeClosed, microfocus
Max tube voltage90kV
Max tube current200μA
Focal spot size5μm
FunctionAuto preheat
Flat Panel Detector
Effective area130mm×130mm
Pixel size85μm
Resolution1536×1536
Frame rate20fps
Tiltable angle60°
Table Specifications
Size530mm×530mm
Detectable area500mm×500mm
Max load10kg
Equipment Specifications
MagnificationGeometry 200X | System 1500X
Inspection speedMax 3.0s/point
Dimensions1360mm (L) × 1365mm (W) × 1730mm (H)
Weight1200kg
Power supplyAC110-220V 50/60HZ
Max power1500W
Industrial PCI5 CPU, 8G RAM, 500GB SSD
Displayer24" HDMI LCD
Safety Features
  • Radiation leakage: No leakage (≤1μSv/h, international standard)
  • Electromagnetic safety switch locks when X-ray is active
  • Emergency stop button near operation position
  • Tube protection prevents leaving software without closing X-ray
  • Transparent lead glass observation window for safe internal viewing
  • Window and back door safety interlock system
Software Capabilities
Core Functions
  • Mouse/keyboard controlled X-ray tube operation with real-time voltage/current display
  • Status bar showing interlock, pre-heat, and X-ray status
  • Adjustable image brightness, contrast and gain
  • Product list for saving and recalling inspection parameters
  • Navigation window for precise table positioning
  • Real-time motion axis coordinate display
  • Inspection results display (voids rate, distance, area, etc.)
  • Adjustable axis movement speeds (slow/normal/fast)
Voids Rate Measurement
  • Automatic calculation of solder ball voids, with NG/OK indication
  • Adjustable grayscale threshold, pixel, contrast, and size filtering
  • Manual void addition through polygon/freehand drawing
  • Saving parameters for consistent product inspection
Measurement Functions
  • Distance measurement between points
  • Distance rate calculation for through-hole soldering
  • Angle measurement between points
  • Radius measurement for circular components
  • Perimeter measurement for square components
Automatic Inspection
  • Manual inspection point setting
  • Array inspection for regular patterns
  • Automatic feature recognition for distinctive inspection points
Working Principle
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
Application Examples
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
BGA Solder Bridge
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
BGA Solder Voids
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
PCB Through-Hole
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
IC Voids and Gold Wire
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
LED Solder Voids
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
LED Gold Wire Crack
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
Capacitor
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
Inductor
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
Sensor
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
Thyristor Surge Suppressors
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
Fiberglass
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
Cable
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
Diode
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
Steel Pipe Welding Gap
PCB Electronic X Ray Machine 90kV 200μA For BGA Void Inspection
Automobile Electronics
