Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
Specifications
Brand Name :
WELLMAN
Model Number :
X6800
Certification :
CE,FDA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
10 days
Packaging Details :
Wooden case
Warranty :
12 Months
Power supply :
AC220V(Optional),110V - 220V,220V 50Hz
Tube type :
Closed X-ray tube,Closed
Operating system :
Windows 10
X-ray leakage amount :
≤1 u Sv/h,≤0.3 u Sv/h
Capacity :
Large,20KVA
Max tube voltage :
90kv
Effective area :
130mm*130mm
Pixel size :
85μm
Resolution :
1536*1536
Max tube current :
200μA
Description

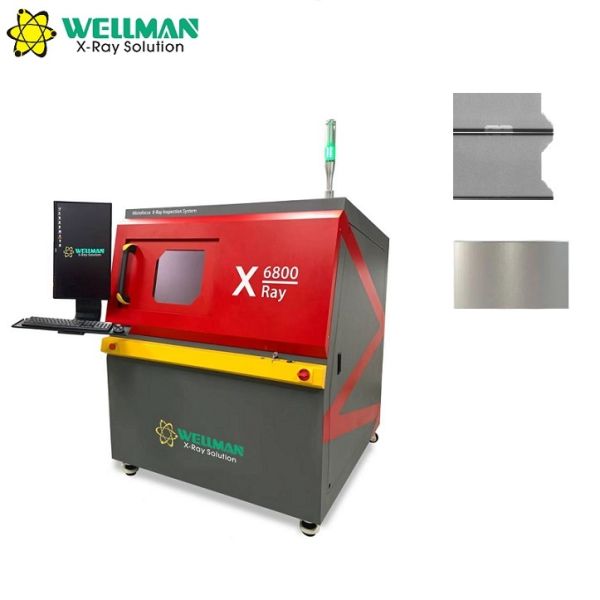

WELLMAN X6800 Industrial X-Ray Inspection Machine
SMT PCB BGA Void Detection with Auto Navigation Window

WELLMAN X6800 Industrial X-Ray Inspection Machine enables advanced SMT PCB inspection, with the capability to detect BGA voids. It features radiation safety of ≤1μSv/h and an auto navigation window, providing comprehensive inspection solutions for industrial applications

Key Advantages
  • Maintenance-free closed-type X-ray tube with a lifetime of over 10,000 hours
  • New-generation 5" HD digital flat panel detector (FPD)
  • The 60° tiltable FPD allows tilting without sacrificing magnification
  • Automatic navigation window enables precise table positioning
  • 530*530mm table with 10KG load capacity
  • 5-axis linkage system with adjustable speed
  • Programmable inspection procedures for automated batch inspection
  • Intuitive operation requiring only 2-hour training
Hardware Specifications
X-ray Source
Type Closed, microfocus
Max tube voltage 90kV
Max tube current 200μA
Focal spot size 5μm
Function Auto preheat
Flat Panel Detector
Effective area 130mm*130mm
Pixel size 85μm
Resolution 1536*1536
Frame rate 20fps
Tiltable angle 60°
Table Specifications
Size 530mm*530mm
Detectable area 500mm*500mm
Max load 10kg
Equipment Specifications
Magnification Geometry 200X | System 1500X
Inspection speed Max 3.0s/point
Dimensions 1360mm (L) * 1365mm (W) * 1730mm (H)
Weight 1200kg
Power supply AC110-220V 50/60HZ
Max power 1500W
Industrial PC I5 CPU, 8G RAM, 500GB SSD
Displayer 24" HDMI LCD
Safety Features
  • Tube protection prevents leaving software without closing X-ray
  • Transparent lead glass observation window for safe internal viewing
  • Radiation leakage: No leakage (≤1μSv/h, international standard)
  • Electromagnetic safety switch locks when X-ray is active
  • Emergency stop button near operation position
  • Window and back door safety interlock system
Software Capabilities
Core Functions
  • Product list for saving and recalling inspection parameters
  • Navigation window for precise table positioning
  • Real-time motion axis coordinate display
  • Mouse/keyboard controlled X-ray tube operation with real-time voltage/current display
  • Status bar showing interlock, pre-heat, and X-ray status
  • Adjustable image brightness, contrast and gain
  • Inspection results display (voids rate, distance, area, etc.)
  • Adjustable axis movement speeds (slow/normal/fast)
Voids Rate Measurement
  • Automatic calculation of solder ball voids, with NG/OK indication
  • Manual void addition through polygon/freehand drawing
  • Saving parameters for consistent product inspection
  • Adjustable grayscale threshold, pixel, contrast, and size filtering
Measurement Functions
  • Distance measurement between points
  • Angle measurement between points
  • Radius measurement for circular components
  • Distance rate calculation for through-hole soldering
  • Perimeter measurement for square components
Automatic Inspection
  • Manual inspection point setting
  • Array inspection for regular patterns
  • Automatic feature recognition for distinctive inspection points
Working Principle
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
X6800 PCB X-ray Inspection Machine working principle diagram
Application Examples
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
BGA Solder Bridge
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
BGA Solder Voids
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
PCB Through-Hole
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
IC Voids and Gold Wire
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
LED Solder Voids
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
LED Gold Wire Crack
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
Capacitor
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
Inductor
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
Sensor
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
Thyristor Surge Suppressors
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
Fiberglass
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
Cable
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
Diode
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
Steel Pipe Welding Gap
Industrial X-ray Inspection System with 10000+ Hours Tube Lifetime 200μA Max Tube Current and 1536*1536 Resolution for PCB Inspection
Automobile Electronics
