Specifications
Brand Name :
WELLMAN
Model Number :
X-6800
Certification :
CE, FDA, ISO9001
Place of Origin :
China
Payment Terms :
T/T
Packaging Details :
Wooden case
Description
Digital X-Ray Machine for SMT Production Lines
Advanced digital X-ray inspection system designed specifically for SMT product lines with intuitive operation and comprehensive defect detection capabilities.
Working Principle
Digital X ray machine with for SMT product line and easy to operation
Key Advantages
  • Oversized 530×530mm stage with 10KG load capacity
  • 60° tiltable FPD maintains magnification without compromise
  • Automatic navigation window with click-to-move table positioning
  • Programmable inspection procedures for automated batch inspection
  • Easy to operate and quickly find defects - only 2 hours training required
Hardware Specifications
X-Ray Source
  • Type: Closed microfocus
  • Max voltage: 90 kV
  • Max current: 200 μA
  • Focal spot: 5 μm
  • Auto preheat function
Flat Panel Detector
  • Effective area: 130×130 mm
  • Pixel size: 85 μm
  • Resolution: 1536×1536
  • Frame rate: 20 fps
  • Tilt angle: 60°
Inspection Platform
  • Platform size: 530×530 mm
  • Effective inspection area: 500×500 mm
  • Max load: 10 kg
System Performance
  • Optical magnification: Up to 200×
  • System magnification: Up to 1500×
  • Inspection speed: Max 3.0 s per point
Mechanical & Electrical
  • Dimensions: 1360(L)×1365(W)×1730(H) mm
  • Weight: 1200 kg
  • Power supply: AC 110-220 V, 50/60 Hz
  • Max power: 1500 W
  • Industrial PC: I5 CPU, 8 GB RAM, 500 GB SSD
  • Display: 24-inch HDMI LCD
Safety Features
  • Radiation leakage: ≤1 μSv/h (meets international standards)
  • Lead glass observation window for safe monitoring
  • Door/window safety interlock: X-ray cuts off when opened
  • Electromagnetic safety lock during operation

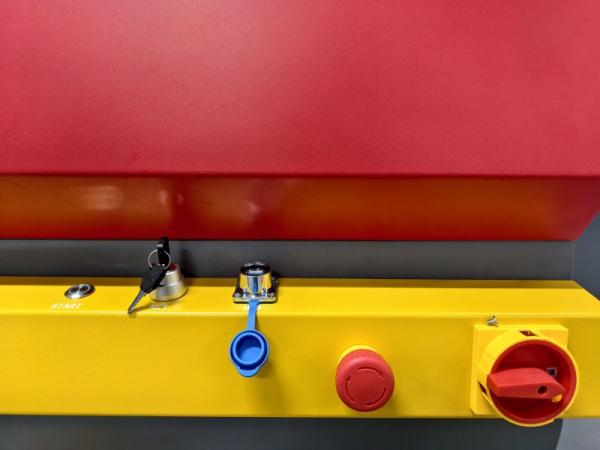

  • Emergency stop button near operation area
  • X-ray tube must be turned off before exiting software
Software Capabilities
Core Functions
Function Module Description
X-ray Tube Control Mouse-click operation with real-time voltage/current display and adjustment
Status Bar Visual indication of interlock, pre-heat, and X-ray status
Image Effect Adjustment Brightness, contrast and gain adjustment for optimal imaging
Product List Save and recall inspection parameters for efficiency
Navigation Window Click-to-move table positioning with camera guidance
Motion Axis Status Real-time coordinate display
Inspection Result Organized display of measurement results with pass/fail indication
Speed Control Adjustable axis movement speeds (slow, normal, fast)
Voids Rate Measurement
Feature Description
Automatic Calculation Rectangle-based solder ball analysis with automatic void detection and measurement
Parameters Adjustment Customizable grayscale threshold, pixel, contrast, and size filtering
Manual Void Addition Polygon or free-form drawing for custom void calculation
Parameter Saving Save and recall measurement parameters for consistent results
Additional Measurement Functions
Function Description
Distance Vertical distance measurement from point to baseline
Distance Rate Percentage ratio measurement for through-hole soldering rate
Angle Angle measurement between defined rays
Radius Circle measurement for round components with circumference and area
Perimeter Square component measurement with length, width and area
Automated Inspection Modes
Mode Description
Manual Setting Custom inspection point positioning with automatic inspection and image saving
Array Automated grid-based inspection from minimal setup parameters
Automatic Identification Feature-based automatic position detection and measurement
Application Examples
Digital X ray machine with for SMT product line and easy to operation
BGA Solder Bridge
Digital X ray machine with for SMT product line and easy to operation
BGA Solder Voids
Digital X ray machine with for SMT product line and easy to operation
PCB Through-Hole
Digital X ray machine with for SMT product line and easy to operation
IC Voids and Gold Wire
Digital X ray machine with for SMT product line and easy to operation
LED Solder Voids
Digital X ray machine with for SMT product line and easy to operation
LED Gold Wire Crack
Digital X ray machine with for SMT product line and easy to operation
Capacitor
Digital X ray machine with for SMT product line and easy to operation
Inductor
Digital X ray machine with for SMT product line and easy to operation
Sensor
Digital X ray machine with for SMT product line and easy to operation
Fiberglass
Digital X ray machine with for SMT product line and easy to operation
Cable
Digital X ray machine with for SMT product line and easy to operation
Diode
Digital X ray machine with for SMT product line and easy to operation
Steel Pipe Welding Gap
Digital X ray machine with for SMT product line and easy to operation
Automotive Electronics
