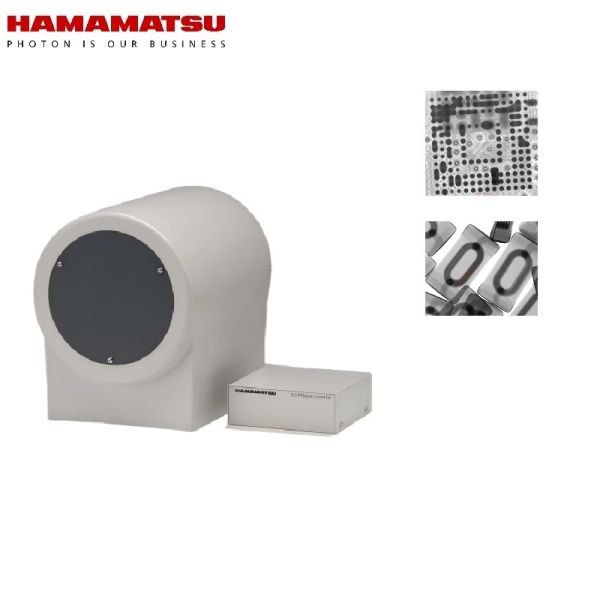

V10905P X Ray Image Intensifier For Electronics Lithium Battery Inspection
V10905P X Ray Image Intensifier For Electronics Lithium Battery Inspection
Specifications
Model Number :
V10905P
Brand Name :
HAMAMATSU
MOQ :
1
X-ray tube curent :
100μm
X-ray source :
Sealed type
X-ray tube voltage :
90 kV
Number ofmultiplicaton frames :
100 (4.2 s)
Payment Terms :
T/T
Place of Origin :
JAPAN
Camera :
1.45 megapixel digital CCD
Certification :
CE, FDA
Description
V10905P X-Ray Image Intensifier for Electronics & Lithium Battery Inspection
High-performance Hamamatsu X-ray image intensifier designed for medical fluoroscopy imaging and industrial inspection applications. Features low scatter input and high sensitivity capabilities for superior imaging performance.
Key Features
  • Low distortion imaging for accurate representation
  • Optimized for high magnification under 2-inch mode
  • Delivers high resolution and high contrast imaging
  • Compatible with multiple camera models including analog and digital types
Applications
Ideal for a wide range of industrial and medical imaging applications including:
Industrial X-ray CT
Non-destructive inspection
In-line X-ray inspection
Applicable Samples
Electronic components
Beverages
Metal components
Plastic components
Food products
Printed circuit boards
V10905P X Ray Image Intensifier For Electronics Lithium Battery Inspection
X-ray Image Intensifier Unit
Technical Specifications
X-ray I.I. Parameters
Parameter Description/Value Unit
Input window material (Thickness) Aluminum(t0.5mm) --
Input phosphor material Csl --
Output phosphor material P43 or equivalent --
Input surface field-of-view size (4 inch mode) φ99 mm
Input surface field-of-view size (2 inch mode) φ50 mm
Output image size φ20 mm
Resolution (on input surface)(Typ.) (4 inch mode) 100 Lp/cm
Resolution (on input surface)(Typ.) (2 inch mode) 110 Lp/cm
Conversion factor 3.4 cd/m²/uGy/s
Shading (Min.) 60 %
Contrast ratio 14 --
Operating ambient temperature +10 to +40 °C
Storage temperature -10 to +45 °C
Operating and storage humidity Below 85% (no condensation) --
Weight Approx. 8.0 kg
Power Supply Specifications
Parameter Description/Value Unit
Input voltage (AC) 100 to 240 V
Output voltage (DC) 24 V
Power consumption 30 VA
Weight Approx. 0.5 kg
V10905P X Ray Image Intensifier For Electronics Lithium Battery Inspection
Close-up View
V10905P X Ray Image Intensifier For Electronics Lithium Battery Inspection
Side View
V10905P X Ray Image Intensifier For Electronics Lithium Battery Inspection
Technical Diagram
V10905P X Ray Image Intensifier For Electronics Lithium Battery Inspection
In Operation
