Workshop Welding Fume Extractor 99.9% Filtration Grade Industry Fume Extractor For Welding
Workshop Welding Fume Extractor 99.9% Filtration Grade Industry Fume Extractor For Welding
Workshop Welding Fume Extractor 99.9% Filtration Grade Industry Fume Extractor For Welding
Workshop Welding Fume Extractor 99.9% Filtration Grade Industry Fume Extractor For Welding
Specifications
Brand Name :
OEM
Model Number :
SBC30 SBC45
Place of Origin :
China
Certification :
CE BAV ISO
MOQ :
1
Price :
USD427-800/set
Packaging Details :
Bubble bag plus export wooden box
Delivery Time :
7 working days
Payment Terms :
T/T, L/C
Supply Ability :
8000 per month
Control mode :
PLC
Single Arm Airflow :
2000-2500m3/h
Double Arm Airflow :
2500-3500m3/h
Filtered particles size :
≤0.3μm
Single Arm Machine Size :
L630 X W800 X H1150
Double Arm Machine Size :
L750 X W830 X H1200mm
Machine material :
Steel Stainless Steel
Noise Level :
65dB
Filter Type :
Cartridge Filter
Application :
Areas with a large amount of smoke
Description

Product Description:

Workshop Welding Fume Extractor 99.9% Filtration Grade Industry Fume Extractor For Welding

The Weld Fume Extraction Unit is a powerful solution designed to effectively remove welding fumes and smoke from the air, providing a safe and clean working environment for welders. This Weld Fume Extractor is equipped with a single arm airflow system that can efficiently handle airflow ranging from 2000 to 2500m3/h, ensuring the capture and extraction of fumes at the source.

When it comes to filtration efficiency, this Weld Fume Extractor boasts an impressive 99.9% efficiency rate, ensuring that even the smallest particles and contaminants are effectively captured and filtered out, promoting a healthier work environment.

Features:

1. Advanced Motor

We use CE certified motor for all model (motor CE certificate is available, please request from sales), it's the top-level motors on the international market.

2. Overload Protection

The machine is adopted overload protection circuit, can effectively prevent overload and short circuit, which can make the machine has high security and stable performance.

For high-end users, we could use Schneider electrical components (such as Breaker, AC contactor), to guarantee user's absolute safety.

3. High Temperature Resistant Suction Hose

A suction hose with a high temperature resistance of 400℃ is available, which provides better fire resistance and safety.

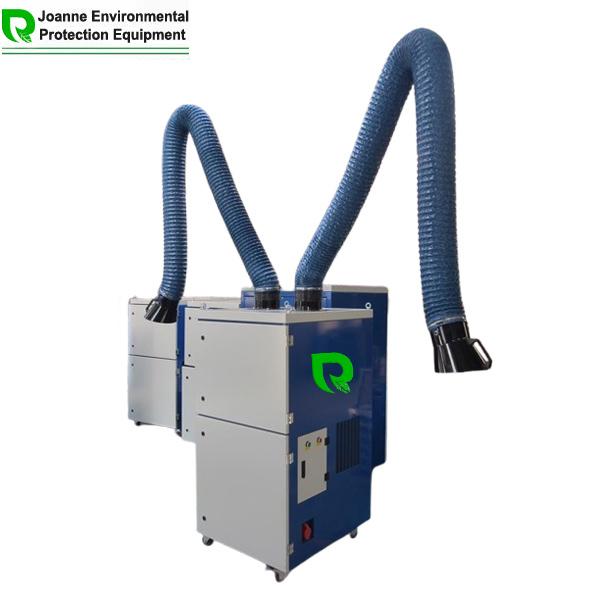

4. Advanced External Articulated Arm

The external articulated arm can hover at any position in the space and rotate freely, bring very small resistance during suction.

5. A Variety of Suction Arm Designs Accept Customization

1) Optional 2.5m and 3m telescopic suction arms can be equipped according to needs.

2) 3 stage Nederman style arm could be installed on our machine.

6. Extraction Hood Customizable

The Extraction Hood shape can be customized, such as U shaped, Hat shape, Taper shape, or other special shape.

7. Function Extension Available

Flame screen, Working spotlight, Smoke sensor and Temperature sensor.

8. Polyester Fiber Cartridge Filter

Membrane-covered filter material is adopted to block large particles of smoke and dust. The filtration density is greater than 99%.

Workshop Welding Fume Extractor 99.9% Filtration Grade Industry Fume Extractor For Welding

Technical Parameters:

Model Structure Air Flow Filter Area Power Cartridge Filter size &
quantity		 Selfcleaning Mode Overall Size
(L*W*H)
WFP-QD-SOS25 Single Extraction Arm 480m³/h 4m³ 0.25KW Φ325*300*1 set Manual operation 380*405*507mm
WFP-QD-SSC220 Single Extraction Arm 1500m³/h 12m³ 1.1KW Φ325*300*1 set Manual operation 460*480*890mm
WFP-QD-SBC11 Single Extraction Arm(Big Body) 1500-2000m³/h 12m³ 1.1KW φ325*500*1 set Fully automatic cleaning
(Compressed air pulse jet)		 500*700*1000mm
WFP-QD-SFB20 Single Extraction Arm 2000-2500m³/h 16m³ 2.2KW φ325*300*1 set Manual operation 530*670*1040mm
WFP-QD-SBC30 Single Extraction Arm(Big Body) 2000-2500m³/h 16m³ 2.2KW Φ325*500*1 set Fully automatic cleaning
(Compressed air pulse jet)		 500*700*1000mm
WFP-QD-WSC12 Double Extraction Ams 2500m²/h 24m² 2.2KW φ325*300*2 sets Manual operation 530*670*1040mm
WFP-QD-WBC22 Double Extraction
Arms(Big Body)		 2500m²/h 24m³ 2.2KW Φ325*500*2 sets Fully automatic cleaning
(Compressed air pulse jet)		 750*800*1200mm
WFP-QD-WFB30 Double Extraction
Arms(Big Airflow)		 3000m²/h 32m³ 3KW φ325*300*2 sets Manual operation 530*670*1040mm
WFP-QD-WFB45 Double Extraction
Arms(Big Airflow,
Big body)		 3000m³/h 32m³ 3KW Φ325*500*2 sets Fully automatic cleaning
(Compressed air pulse jet)		 750*800*1200mm

Applications:

  • Mining
  • Printing
  • All metal welding
  • Laser cutting and engraving
  • Heavy equipment manufacturing
  • Maintenance and repair operations
  • Other smog-producing industries

We provide permanent after-sales service! Use our workshop welding fume extractor to create a healthy and safe working environment for your workers now!
