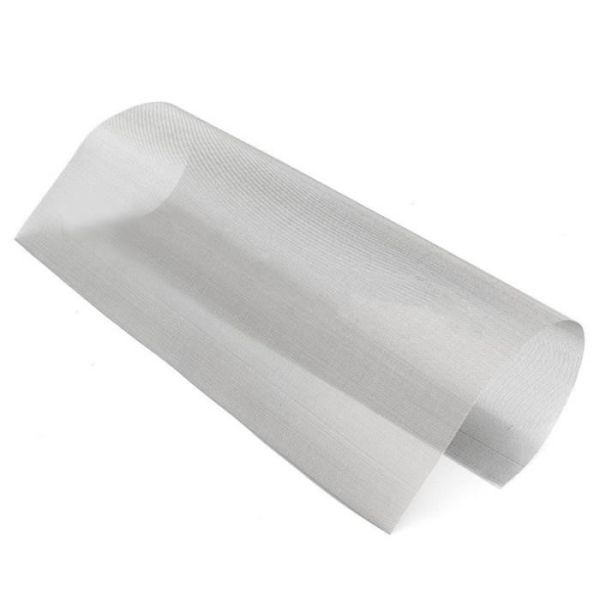

304 316L Stainless Steel Wire Mesh Screen with 60 80 Micron Plain Woven Filter Mesh
304 316L Stainless Steel Wire Mesh Screen with 60 80 Micron Plain Woven Filter Mesh
304 316L Stainless Steel Wire Mesh Screen with 60 80 Micron Plain Woven Filter Mesh
304 316L Stainless Steel Wire Mesh Screen with 60 80 Micron Plain Woven Filter Mesh
304 316L Stainless Steel Wire Mesh Screen with 60 80 Micron Plain Woven Filter Mesh
304 316L Stainless Steel Wire Mesh Screen with 60 80 Micron Plain Woven Filter Mesh
Specifications
Wire Diameter :
0.015-2.8mm
Width :
40 mm ---210 mm
Length :
30m/roll
Mesh Counts :
2-635 mesh
Weave Type :
Plain weave, Plain dutch weave, Twill weave, Dutch twilled weave, Reversed Dutch Weave
Brand Name :
Bingze
Model Number :
SS20230920
MOQ :
1roll
Price :
30dollars-50dollars
Delivery Time :
12-15days
Packaging Details :
1.There are waterproof paper and carton pipe inside for support. 2.Then use wooden case / wooden pallets outside. 3.It also can be packaged according to your request.
Certification :
ISO9001-2015
Place of Origin :
AnPing,China
Payment Terms :
T/T,L/C
Supply Ability :
8000rolls per month
Material :
SUS201, 304, 304L, 316, 316L, 431, 321 stainless steel wire
Description
304 316L Stainless Steel Wire Screen Mesh Metal Plain Woven Net 60 80 Micron Weave Filter Mesh
Product Description
Material:
  • Common materials: SUS201, 304, 304L, 316, 316L, 431, 321 stainless steel wire
  • Special materials: 410/430, 310S, 904L stainless steel wire
  • UNS S31803(S32205) duplex stainless steel wire
  • UNS S32750 Super duplex stainless steel wire
Wire Diameter: 0.015-2.8mm
Mesh Counts:
  • Plain/Twill weave: 2-635 mesh
  • Dutch weave: 12×64-500×3200 mesh
Product Application
304 316L Stainless Steel Wire Mesh Screen with 60 80 Micron Plain Woven Filter Mesh
What industries are stainless steel wire mesh used in?
Stainless steel woven wire mesh is widely used in daily applications, petroleum, chemical, food, pharmaceutical, classification, screening and filtration of solid, liquid and gas in the fields of mining, metallurgy, aerospace, and mechanical manufacturing.
  • Sieving and filtering in acid and alkali environment conditions
  • Petroleum industry as mud mesh
  • Chemical fiber industry as screen mesh
  • Plating industry as acid cleaning mesh
Product Specifications
Product Name Reverse Ultra Fine Plain Weave Stainless Steel Wire Mesh
Wire Material SU302, 304, 316, 304L, 316L, 310S, 321 etc
Technique Plain Woven
Weave Type Plain weave, Plain dutch weave, Twill weave, Dutch twilled weave, Reversed Dutch Weave etc
Mesh Count 1 mesh - 650 mesh
Wire Diameter 0.025 mm - 3 mm or custom
Width 40 mm - 210 mm
Packing Water-Proof, Plastic Paper, Wooden Case, Pallet
Length 30m/roll
Performance Acid resistance, alkali resistance, temperature resistance, wear resistance and other properties
Stainless steel woven wire mesh is made by stainless steel wire woven together to form square or oblong openings. Due to the inherent characteristics of stainless steel, the processed wire mesh has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti-static, and anti-acid/alkali corrosion resistance.
Weave Types
Plain Weave: The most commonly used weaving type. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
304 316L Stainless Steel Wire Mesh Screen with 60 80 Micron Plain Woven Filter Mesh
Twill Weave: The wires of the weft and the warp inter cross two above and two below, inverting the intersections of the warp wire at an established distance and obtaining a rigid, stable and robust type of wire mesh fabric.
304 316L Stainless Steel Wire Mesh Screen with 60 80 Micron Plain Woven Filter Mesh
Dutch Weave: The wires of the weft and the warp inter cross two above with a larger weft wire than the warp. This type of wire mesh allows a greater difference between the diameter and the number of weft and warp wire.
304 316L Stainless Steel Wire Mesh Screen with 60 80 Micron Plain Woven Filter Mesh
Product Details
304 316L Stainless Steel Wire Mesh Screen with 60 80 Micron Plain Woven Filter Mesh 304 316L Stainless Steel Wire Mesh Screen with 60 80 Micron Plain Woven Filter Mesh 304 316L Stainless Steel Wire Mesh Screen with 60 80 Micron Plain Woven Filter Mesh
Packing & Delivery
304 316L Stainless Steel Wire Mesh Screen with 60 80 Micron Plain Woven Filter Mesh 304 316L Stainless Steel Wire Mesh Screen with 60 80 Micron Plain Woven Filter Mesh
Company Profile
Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. We are a manufacturer integrating production, processing, distribution and wholesale. Our main products include galvanized welded wire mesh, stainless steel welded wire mesh, PVC welded wire mesh, crimped wire mesh, galvanized woven wire mesh, stainless steel woven wire mesh, chain link fence, steel fence, welded wire mesh fence panels, PVC euro fence, 358 anti-climb fence, razor wire and more.
Since our beginning, we have been committed to four key principles: High Quality, Quick Delivery, Better Price and Thorough Service. Relying on product quality and our credit standing, we have received favorable comments from customers worldwide.
Our company utilizes precise manufacturing machines and techniques, combining scientific internal management methods and quality control systems. Since establishment, we have developed our reputation and credit standing, earning the trust of customers both domestically and internationally. Our products are manufactured to the highest standards and are exported throughout the country and to various international markets including Southeast Asia, Middle East, America, Japan, and African countries.
Frequently Asked Questions
Q: Are you trader or manufacturer?
A: We are a professional wire mesh manufacturer.
Q: Can I get the free sample?
A: Yes, we can provide you free sample for testing.
Q: What is your payment term?
A: TT, LC, DP, Western Union, Paypal, etc. Note: you can apply for OA payment.
Q: Can I customize the products?
A: Yes, as long as you provide specifications or drawings, we can produce products according to your requirements.
Q: How long is the delivery time?
A: For more than 500 kinds of stock products, the fastest delivery is 24 hours. For customized products, the fastest delivery is 15-20 days.
For more questions, please contact our sales team.
