SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh with Square Hole for Industrial Filtration
SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh with Square Hole for Industrial Filtration
SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh with Square Hole for Industrial Filtration
SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh with Square Hole for Industrial Filtration
SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh with Square Hole for Industrial Filtration
SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh with Square Hole for Industrial Filtration
Specifications
Delivery Time :
12-15days
Supply Ability :
8000rolls per month
Wire Diameter :
0.015-2.8mm
Width :
40 mm - 210 mm
Length :
30m/roll
Certification :
ISO9001-2015
Model Number :
SS20230920
Mesh Counts :
Plain/Twill weave: 2-635 mesh, Dutch weave: 12*64-500*3200 mesh
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Material :
SUS201, 304, 304L, 316, 316L, 431, 321, 410/430, 310S, 904L, UNS S31803(S32205), UNS S32750
Brand Name :
Bingze
MOQ :
1roll
Price :
30dollars-50dollars
Weave Type :
Plain weave, Plain dutch weave, Twill weave, Dutch twilled weave, Reversed Dutch Weave
Place of Origin :
AnPing,China
Packaging Details :
1.There are waterproof paper and carton pipe inside for support. 2.Then use wooden case / wooden pallets outside. 3.It also can be packaged according to your request.
Description
SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh
Product Description
Material:
  • Common material: SUS201, 304, 304L, 316, 316L, 431, 321 stainless steel wire
  • Special material: 410/430, 310S, 904L stainless steel wire
  • UNS S31803(S32205) duplex stainless steel wire
  • UNS S32750 Super duplex stainless steel wire
Wire Diameter: 0.015-2.8mm
Mesh counts:
  • Plain/Twill weave: 2-635 mesh
  • Dutch weave: 12*64-500*3200 mesh
Product Application
SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh with Square Hole for Industrial Filtration
Stainless steel woven wire mesh is widely used in daily use, petroleum, chemical, food, pharmaceutical, and classification, screening and filtering of solid, liquid and gas in the fields of mining, metallurgy, aerospace, and mechanical manufacturing.
Applications include:
  • Sieving and filtering in acid and alkali environment conditions
  • Petroleum industry as mud mesh
  • Chemical fiber industry as screen mesh
  • Plating industry as acid cleaning mesh
Product Specifications
Product Name Reverse Ultra Fine Plain Weave Stainless Steel Wire Mesh
Wire Material SU302, 304, 316, 304L, 316L, 310S, 321 etc
Technique Plain Woven
Weave Type Plain weave, Plain dutch weave, Twill weave, Dutch twilled weave, Reversed Dutch Weave etc
Mesh Count 1 mesh - 650 mesh
Wire Diameter 0.025 mm - 3 mm or custom
Width 40 mm - 210 mm
Packing Water-Proof, Plastic Paper, Wooden Case, Pallet
Length 30m/roll
Performance Acid resistance, alkali resistance, temperature resistance, wear resistance and other properties
Product Features

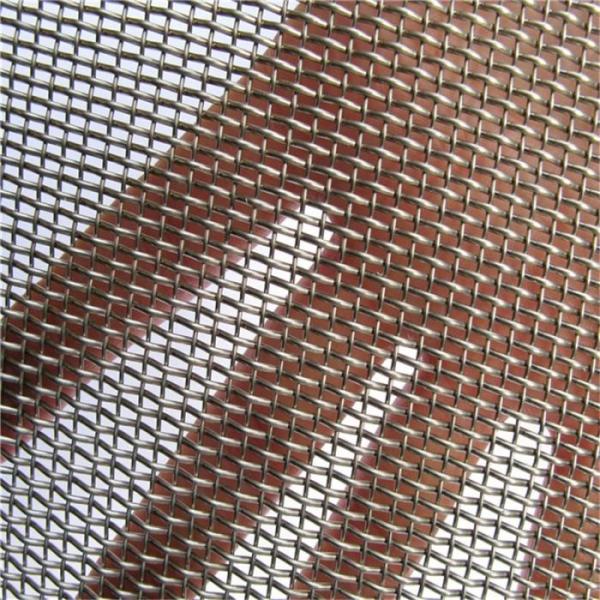

Stainless steel woven wire mesh is made by stainless steel wire woven together to form square or oblong openings. Due to the characteristics of stainless steel, the mesh features high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti-static, and resistance to acid and alkali corrosion.
Plain Weave: SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh with Square Hole for Industrial Filtration The most commonly used weaving type where each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Twill Weave: SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh with Square Hole for Industrial Filtration The wires of the weft and the warp inter cross two above and two below, inverting the intersections of the warp wire at an established distance, obtaining a rigid, stable and robust wire mesh fabric.
Dutch Weave: SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh with Square Hole for Industrial Filtration The wires of the weft and the warp inter cross two above with a larger weft wire than the warp. This allows a greater difference between the diameter and the number of weft and warp wire.
Product Details
SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh with Square Hole for Industrial Filtration SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh with Square Hole for Industrial Filtration SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh with Square Hole for Industrial Filtration
Packing & Delivery
SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh with Square Hole for Industrial Filtration SUS 304 316 316L Fine Mesh Stainless Steel Woven Wire Mesh with Square Hole for Industrial Filtration
Company Profile
Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. We are a manufacturer integrating production, processing, distribution and wholesale. Our main products include galvanized welded wire mesh, stainless steel welded wire mesh, PVC welded wire mesh, crimped wire mesh, galvanized woven wire mesh, stainless steel woven wire mesh, chain link fence, steel fence, welded wire mesh fence panels, PVC euro fence, 358 anti-climb fence, and razor wire.
Since our beginning, we have been committed to four key principles: High Quality, Quick Delivery, Better Price and Thorough Service. Relying on product quality and our credit standing, we have received favorable comments from customers worldwide.
Our company utilizes precise manufacturing machines and techniques, combining scientific management methods with quality control systems. Since establishment, we have developed our reputation and earned the trust of customers both domestically and internationally. Our products are manufactured to high standards and are exported to countries throughout Southeast Asia, Middle East, America, Japan, and Africa.
Frequently Asked Questions
Q: Are you trader or manufacturer?
A: We are a professional wire mesh manufacturer.
Q: Can I get the free sample?
A: Yes, we can provide you free sample for testing.
Q: What is your payment term?
A: TT, LC, DP, Western Union, Paypal, etc. Note: you can apply for OA payment.
Q: Can I customize the products?
A: Yes, as long as you provide specification or drawing, we can produce products what you want.
Q: How long is the delivery time?
A: More than 500 kinds of stock products, the fastest delivery is 24 hours. Customized products, the fastest delivery is 15-20 days.
For more questions, please contact our sales team.
