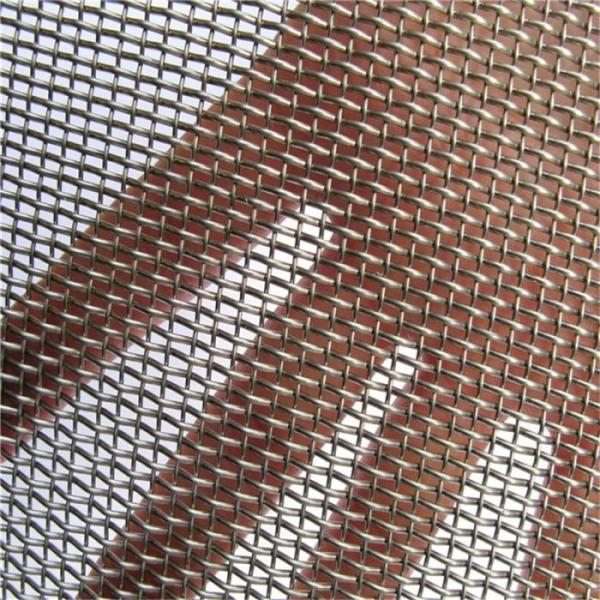

20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve
20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve
20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve
20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve
20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve
20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve
Specifications
Wire diameter :
0.0008″-0.08″
Weight :
2.53 to 41.1 LB/100 Square Foot
Absolute Filtration :
318-340 to 43-48 μm
Nominal Filtration :
250-255 to 35-40 μm
Open Area :
25 to 84.6
Mesh/Inch :
1 × 1-635 × 635
Brand Name :
Bingze
Model Number :
SS20230920
Certification :
ISO9001-2015
Place of Origin :
AnPing,China
MOQ :
1roll
Price :
30dollars-50dollars
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
8000rolls per month
Delivery Time :
12-15days
Packaging Details :
1.There are waterproof paper and carton pipe inside for support. 2.Then use wooden case / wooden pallets outside. 3.It also can be packaged according to your request.
Description
20/40/60/80Mesh Stainless Steel Woven Wire Mesh High Standard For Sieve
20/40/60/80 Mesh Woven Steel Net High Standard Stainless Steel Wire Mesh For Sieve
20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve
Product Specifications
Type Mesh/Inch Wire diameter (inch) Open Area Weight (LB) /100 Square Foot
Plain, Twill Weave Wire Mesh 1 × 1-635 × 635 0.0008″-0.08″ 25 to 84.6 2.53 to 41.1
Type Mesh/Inch Wire diameter (inch) Absolute Filtration Finess μm Nominal Filtration Finess μm
Plain Dutch Weave Wire Mesh 8 × 85-80 × 400 0.014'' × 0.0126" - 0.0049" × 0.0028" 318-340 to 43-48 250-255 to 35-40
Twill Dutch Weave Wire Mesh 20 × 250 - 500 × 3200 0.0098" × 0.0079" - 0.0015" × 0.0010" 110-120 to 8-9 98-105 to 2-3
Product Images
20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve 20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve 20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve 20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve
Applications
Stainless steel woven wire mesh is widely used in daily use, petroleum, chemical, food, pharmaceutical, and classification, screening and filtration of solid, liquid and gas in the fields of mining, metallurgy, aerospace, and mechanical manufacturing.
Product Features
Stainless steel woven wire mesh is made from stainless steel wire woven together to form square or oblong openings. Due to the characteristics of stainless steel, the mesh offers:
  • High wear resistance and long service life
  • Accurate mesh with uniform structure
  • No curling and easy to use
  • Uniform screen thickness
  • Anti-static properties
  • Acid and alkali resistance
  • Temperature resistance
  • Corrosion resistance
Weaving Types
20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve
Plain Weave: This is the most commonly used weaving type. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve
Twill Weave: The wires of the weft and the warp inter cross two above and two below, inverting the intersections of the warp wire at an established distance and obtaining a rigid, stable and robust type of wire mesh fabric.
20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve
Dutch Weave: The wires of the weft and the warp inter cross two above with a larger weft wire than the warp. This type of wire mesh allows a greater difference between the diameter and the number of weft and warp wire.
Product Details
20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve 20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve 20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve
Packing & Delivery
20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve 20/40/60/80Mesh Stainless Steel Woven Wire Mesh with Corrosion Resistance and Custom Specification for Sieve
Company Profile
Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. We are a manufacturer integrating production, processing, distribution and wholesale.
Main Products: Galvanized welded wire mesh, stainless steel welded wire mesh, PVC welded wire mesh, crimped wire mesh, galvanized woven wire mesh, stainless steel woven wire mesh, chain link fence, steel fence, welded wire mesh fence panels, PVC euro fence, 358 anti-climb fence, razor wire and more.
Our Commitment: Since our beginning, we have been committed to High Quality, Quick Delivery, Better Price and Thorough Service. Relying on product quality and our credit standing, we have earned favorable comments from customers worldwide.
Quality Assurance: Our company introduces precise manufacturing machines and technics, combining scientific inner management methods and quality control systems. Our products are checked by very high standards, and qualified products are shipped to customers throughout the country and abroad, including Southeast Asia, Middle East, America, Japan, and African countries.
Frequently Asked Questions
Are you a manufacturer?
Yes, we have been providing products in this field for 10 years.
Is customization available?
Of course, we will manufacture according to your requirements.
Can you provide samples before placing an order?
Sure, we can send samples to you free of charge for quality inspection.
What payment terms do you accept?
Usually 30% as a deposit and the balance paid before shipment. We will send pictures and videos during production for your review.
