2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction
2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction
2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction
2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction
2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction
2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction
Specifications
Supply Ability :
8000 rolls per month
Weight :
1.8-28.26 kg/m²
Model Number :
SSFD20230922
Technique :
Perforated
MOQ :
1 roll
Delivery Time :
12-15 days
Thickness :
3-8mm
Payment Terms :
L/C,T/T
SWD :
1mm-50mm
Price :
30-50 dollars per piece
Width :
0.5-2m
Certification :
ISO9001-2015
Size :
1250*2500mm
Brand Name :
Bingze
Material :
Low Carbon Steel
Place of Origin :
China
LWD :
20mm-150mm
Packaging Details :
1.There are waterproof paper and carton pipe inside for support. 2.Then use wooden case / wooden pallets outside. 3.It also can be packaged according to your request
Description
Direct Factory 2mm Black Steel Expanded Metal Mesh 20×40mm 1200×2400mm for Fence and Construction

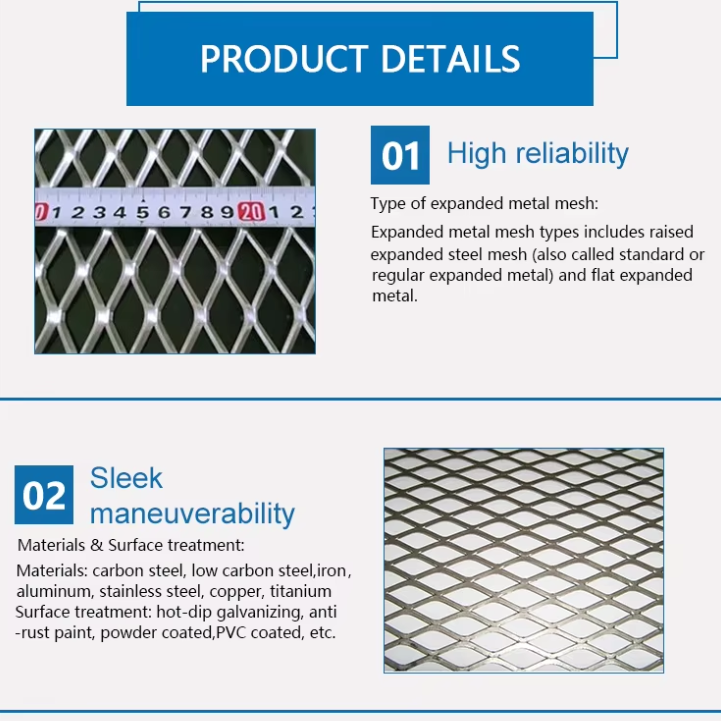

Expanded Metal Mesh is a practical and economical metal mesh solution designed for applications where strength, open area, ventilation, and protection are required. It features a regularly expanded mesh pattern with interconnected strands and bonds, creating a rigid surface that maintains its shape well during installation and long-term use.
The product can be manufactured with diamond, hexagonal, or other customized opening patterns, allowing customers to select the appropriate balance between open area and structural strength. By adjusting the SWD, LWD, strand width, material thickness, and overall sheet dimensions, Expanded Metal Mesh can be produced for applications ranging from lightweight decorative panels to heavy-duty industrial protection.
Depending on the working environment, customers can choose carbon steel, galvanized steel, stainless steel, or aluminum. Carbon steel provides good strength and cost efficiency, galvanized steel offers improved protection against rust, stainless steel is suitable for applications requiring enhanced corrosion resistance, while aluminum provides a lightweight solution for architectural and decorative projects.

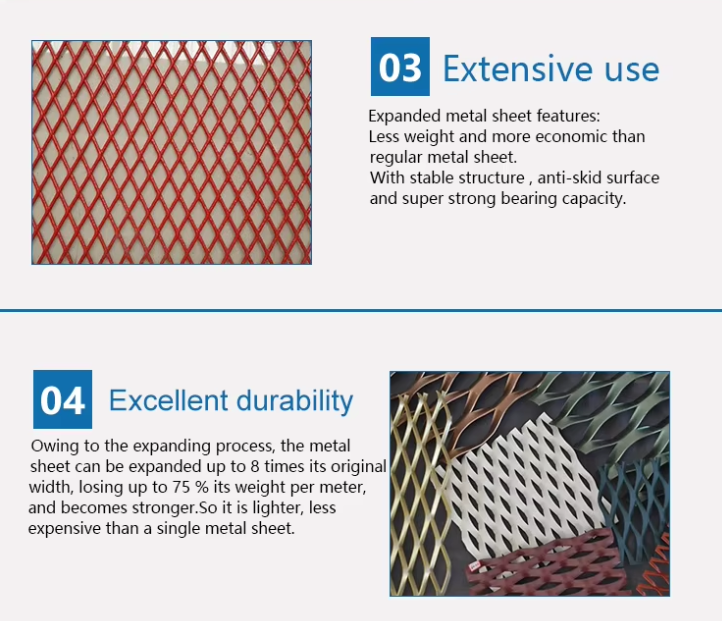

One of the key advantages of Expanded Metal Mesh is its combination of strength and efficient material utilization. Its open structure allows air, light, heat, and liquids to pass through while still providing effective separation and protection. It can also be easily cut, formed, framed, or fabricated according to specific project requirements.

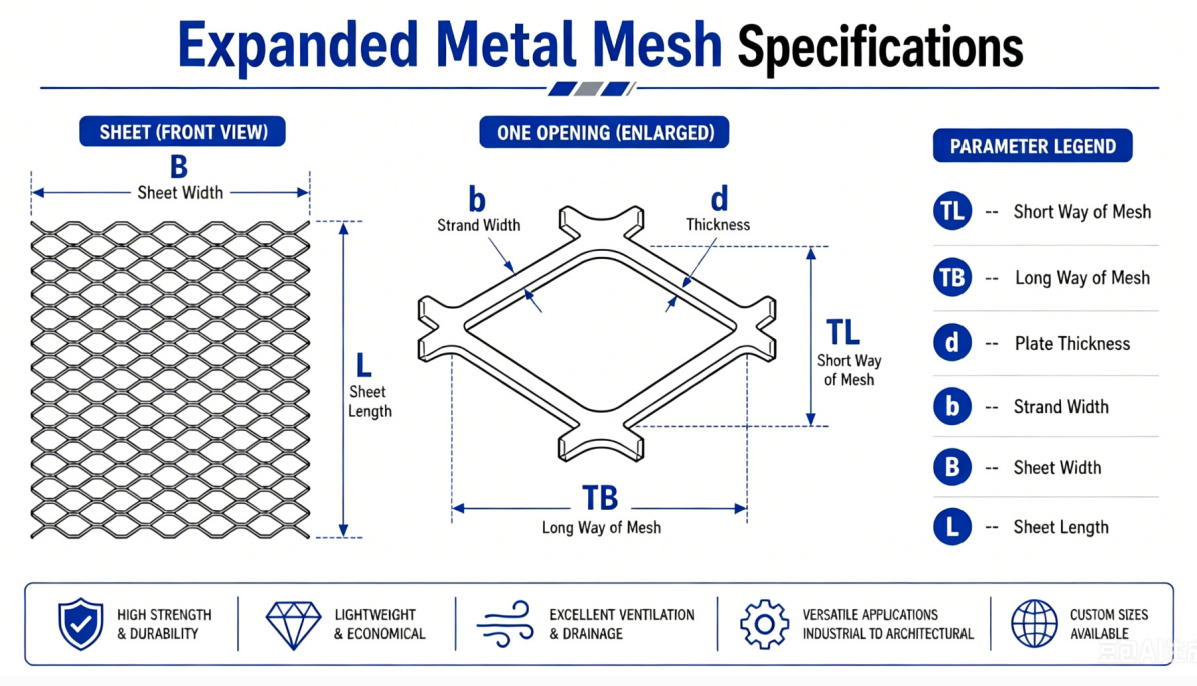

Technical Specifications
Plate Thickness (mm) Aperture Width (mm) Aperture Length (mm) Mesh Terrier (mm) Mesh Width (m) Length (mm) Weight (kg/m²)
0.52.54.50.50.511.8
0.510250.50.620.73
0.6102510.620
0.8102510.621.25
110251.10.621.77
115401.5241.85
1.210251.1242.21
1.215401.5242.3
1.515401.51.842.77
1.523602.623.62.77
218502.1243.69
222602.6243.69
340803.8245.00
45010042211.15
460120427.54.0
48018042103.0
410020042122.5
4.550100522.711.15
55010051.42.612.39
57515052103.0
650100622.517.35
5010022.128.26
Special sizes and specifications can be customized according to your requirements.
2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction 2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction 2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction 2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction 2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction 2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction
Product Advantages
  • High Structural Strength - Expanded Metal Mesh features an interconnected strand and bond structure that provides excellent rigidity and load-bearing performance. The one-piece construction helps maintain mesh stability during installation and long-term use.
  • No Welding Joints - The mesh is expanded directly from a solid metal sheet without welding or weaving. This continuous construction eliminates weak welded joints and provides reliable structural integrity.
  • Excellent Ventilation & Open Area - The uniform openings allow air, light, heat, and liquids to pass through freely, making the mesh suitable for ventilation, screening, drainage, and protective applications.
  • Wide Material Selection - Available in carbon steel, galvanized steel, stainless steel, and aluminum to meet different requirements for strength, corrosion resistance, weight, appearance, and working environment.
  • Good Corrosion Resistance - Galvanizing, powder coating, PVC coating, and other surface treatments are available to enhance rust and weather resistance, especially for outdoor applications.
  • Flexible Specification Customization - Mesh opening, SWD, LWD, strand width, sheet thickness, width, length, and surface treatment can be customized according to drawings, samples, or project requirements.
  • Lightweight with Reliable Strength - The expanded structure removes unnecessary material while retaining good mechanical strength, helping reduce overall weight compared with solid metal sheets used for similar protective purposes.
  • Easy Fabrication & Installation - Expanded Metal Mesh can be cut, bent, framed, welded, and fabricated into different shapes, making it convenient for installation and integration into various industrial or construction projects.
  • Wide Range of Applications - Suitable for security fencing, machine guards, industrial platforms, stair treads, walkways, ventilation screens, architectural decoration, warehouse partitions, and agricultural protection.
  • Cost-Effective for Bulk Projects - With durable construction, efficient material utilization, and flexible production sizes, Expanded Metal Mesh provides a practical solution for distributors, contractors, and large-scale industrial or construction projects.
Product Applications
  1. Security Fencing & Protection: Widely used for security fencing, perimeter barriers, window guards, warehouse partitions, and protective enclosures. Its rigid one-piece structure provides reliable protection while maintaining good visibility and airflow.
  2. Machine & Equipment Guarding: Suitable for machine guards, equipment covers, safety screens, and workshop protection. The open mesh design allows ventilation and easy visual inspection while helping prevent accidental contact with moving equipment.
  3. Walkways, Platforms & Stair Treads: Heavy-duty mesh can be used for industrial walkways, working platforms, stair treads, ramps, and maintenance access areas. Its raised surface provides good grip and drainage, making it suitable for many industrial environments.
  4. Construction & Architectural Applications: Commonly used for building facades, ceilings, wall cladding, partitions, sunshades, decorative panels, and architectural screens. Different opening patterns, materials, and surface finishes can be selected to meet functional and decorative requirements.
  5. Industrial Screening & Separation: Can be used for screening, separation, ventilation, filtration support, and material protection in industrial facilities. Various mesh openings and sheet thicknesses are available for different operating requirements.
  6. Agricultural & Livestock Applications: Suitable for farm fencing, animal enclosures, poultry protection, machinery guards, ventilation panels, and agricultural equipment. Galvanized finishes can provide improved corrosion resistance for outdoor applications.
  7. Transportation & Automotive Applications: Used for vehicle grilles, trailer ramps, truck protection panels, ventilation covers, safety barriers, and transportation equipment. Its combination of strength and open area makes it suitable for applications requiring both protection and airflow.
  8. Shelving & Storage Systems: Also suitable for industrial shelving, storage racks, warehouse cages, baskets, and material handling systems. The open structure reduces unnecessary weight while providing reliable support and visibility.
2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction
About Our Company
Anping Bingze Wire Mesh Products Co., Ltd. has specialized in the production and research and development of stainless steel wire mesh for 25 years. We are a comprehensive manufacturer integrating production, processing, distribution, and wholesale operations.
Main Products Include:
  • Galvanized welded wire mesh
  • Stainless steel welded wire mesh
  • PVC welded wire mesh
  • Crimped wire mesh
  • Galvanized woven wire mesh
  • Stainless steel woven wire mesh
  • Chain link fence
  • Steel fence
  • Welded wire mesh fence panels
  • PVC euro fence
  • 358 anti-climb fence
  • Razor wire
Since our establishment, we have maintained four core principles: High Quality, Quick Delivery, Competitive Pricing, and Thorough Service. Our commitment to product quality and business integrity has earned us favorable recognition from customers worldwide.
The company utilizes precision manufacturing equipment and advanced techniques, combined with scientific management methods and rigorous quality control systems. Our products meet the highest standards and are exported to numerous countries including Southeast Asia, Middle East, America, Japan, and various African nations.
2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction 2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction
Shipping and Payment
2mm Thickness Low Carbon Steel Expanded Metal Mesh with 20×40mm Openings for Fence and Construction
Frequently Asked Questions
Q1. Are you a manufacturer or trading company?
We are a factory, ensuring first-hand competitive pricing and high-quality products.
Q2. Are samples acceptable and what is the MOQ?
Yes, we accept custom sample requests. Please consult with our sales team for detailed information as requirements vary by product.
Q3. Can I get a better price?
We consistently strive to provide the most competitive prices to our valued customers.
Q4. What is the lead time?
Sample orders: 3-5 days after full payment receipt. Final orders: 5-20 days after deposit receipt, depending on actual production progress.
Q5. How can I get samples?
Please confirm size and specifications with our sales representative, then place your sample order for production.
