Specifications
Model Number :
SGS202309255555
Market :
America,Europe,Asia,Australia,Afirca etc
Payment Terms :
L/C,T/T,Western Union
Technique :
Woven
Mesh :
1-3500mesh
Price :
18$-25$
Material :
304,316,316L,310S,410,430,904L,2205,2507,etc
Advantage :
Superior wire,standard mesh,Acid-resisting,alkali-resisting
MOQ :
100 rolls
Delivery Time :
10-15 days
Roll size :
1mx30m, 1.22mx30m, 1.5mx30m
Supply Ability :
10000 rolls per month
Product Name :
Stainless steel woven wire mesh
Certification :
ISO9001-2015
Place of Origin :
China
Deep-processing products :
Available
Packaging Details :
1.Plastic wrapping,wooden pallet 2.Customized according to customer requirements
Brand Name :
Bingze
Usage :
Printing,filter,space flight,oil,chemical industry
Length :
30m per roll or as required
Description

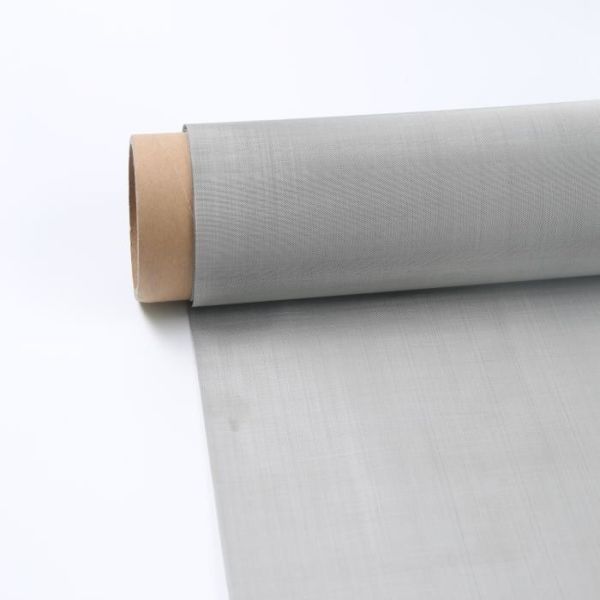

Insect-Proof Durable Stainless Steel Woven Mesh

32 Mesh Window Screen Rust Resistant for Door Window Mosquito Prevention & Ventilation Protection

This multi-functional stainless steel woven mesh integrates four core functions including protection & isolation, fine filtration, architectural decoration and electromagnetic shielding. The sturdy stainless steel structure remains stable without bending or deforming under external extrusion, with excellent anti-oxidation and anti-aging performance.

It maintains intact appearance and service performance after years of outdoor exposure. Cutting edges are finely polished without sharp burrs to ensure operator safety during installation and use.

Product Features
  • Premium Stainless Steel Material - Made of SUS304/316/316L stainless steel wire with excellent resistance to acid, alkali, salt spray and seawater corrosion. Service life over 10 years.
  • Precision Weaving, Uniform Mesh Opening - Plain weave, twill weave and crimped weave available with consistent aperture size and stable permeability.
  • High Tensile Strength & Wear Resistance - Tightly interlaced woven structure delivers strong tensile force, good toughness, and anti-abrasion performance.
  • Excellent High Temperature Resistance - 304 mesh withstands up to 800°C, 310S grade can resist 1150°C high temperature.
  • Easy to Clean & Reusable - Smooth surface prevents residue adhesion. Washable, ultrasonic cleanable and high-temperature sterilizable.
  • Food & Pharmaceutical Grade Hygienic Performance - Food-grade safe stainless steel with no harmful substance precipitation.
  • Full Customization Service - Customizable mesh count (2-635 mesh), wire diameter, width, length, and various processing options.
  • Wide Application Versatility - Suitable for industrial liquid & powder filtration, particle sieving, safety guards, and more.
Applications
  • Filtration & Separation Industry - Liquid filtration, solid-liquid separation, powder grading, oil filters, wastewater treatment
  • Food & Beverage Industry - Sieving flour, sugar, starch; beverage impurity filtering, food grade filtering screens
  • Pharmaceutical & Medical Industry - Raw medicine powder screening, liquid filtration, high-temperature sterilization trays
  • High Temperature & Heat Treatment Field - Furnace isolation mesh, high-temperature conveyor belts, heat treatment quenching baskets
  • Construction & Decoration - Architectural decorative curtain walls, facade cladding, stair anti-fall guards
  • Safety Protection & Mechanical Guarding - Machine equipment protective covers, anti-splash baffles, workshop isolation fences
  • Daily & Agricultural Use - Window and door insect screens, breeding cage nets, aquaculture isolation mesh
  • Electronics & Electromagnetic Shielding - EMI shielding mesh for electronic cabinets, signal shielding nets
  • Other General Uses - Rubber & plastic reinforcement mesh, battery electrode nets, oil well sand control screens
Insect-Proof Rust Resistant 32 Mesh Stainless Steel Woven Mesh for Window Screen Protection
Industrial mining vibrating screen application
Product Specifications
Product Name Woven Stainless Steel Wire Mesh
Mesh Count Range 1 - 3500 mesh
Wire Material 302, 304, 316, 304L, 316L, 310S, 321 etc.
Wire Diameter Range 0.02 - 6.30 mm
Weave Type Plain weave, Plain Dutch weave, Twill weave, Dutch twilled weave, Reverse Dutch weave etc.
Mesh Width Standard width up to 2000 mm
Mesh Length Standard 10m/30m rolls, custom cut lengths, minimum 2m
Available Forms Rolls and sheets are available
Packing Waterproof plastic paper, wooden case, pallet
Application Filtering, screening, separation, construction, chemical industry etc.
Product Construction Types
Insect-Proof Rust Resistant 32 Mesh Stainless Steel Woven Mesh for Window Screen Protection
Plain weave stainless steel wire mesh
Insect-Proof Rust Resistant 32 Mesh Stainless Steel Woven Mesh for Window Screen Protection
Twill weave stainless steel wire mesh
Insect-Proof Rust Resistant 32 Mesh Stainless Steel Woven Mesh for Window Screen Protection
Dutch weave stainless steel wire mesh
Insect-Proof Rust Resistant 32 Mesh Stainless Steel Woven Mesh for Window Screen Protection
Technical specifications diagram
Insect-Proof Rust Resistant 32 Mesh Stainless Steel Woven Mesh for Window Screen Protection
Close-up view of precise weaving
Insect-Proof Rust Resistant 32 Mesh Stainless Steel Woven Mesh for Window Screen Protection
Industrial filtration system application
Packing & Delivery
Insect-Proof Rust Resistant 32 Mesh Stainless Steel Woven Mesh for Window Screen Protection
Secure packaging on wooden pallets
Insect-Proof Rust Resistant 32 Mesh Stainless Steel Woven Mesh for Window Screen Protection
Prepared for international delivery
Frequently Asked Questions
  • Are you trader or manufacturer?
    We are a professional wire mesh manufacturer.
  • Can I get the free sample?
    Yes, we can provide you free sample for testing.
  • What is your payment term?
    TT, LC, DP, Western Union, Paypal, etc. Note: you can apply for OA payment.
  • Can I customize the products?
    Yes, as long as provide specification or drawing, we can produce products what you want.
  • How long is the delivery time?
    More than 500 kinds of stock products, the fastest delivery is 24 hours. Customized products, the fastest delivery is 15-20 days.
