Customizable High Temperature Resistant Stainless Steel Spiral Wire Mesh Conveyor Belt for Bakery Ovens
Customizable High Temperature Resistant Stainless Steel Spiral Wire Mesh Conveyor Belt for Bakery Ovens
Customizable High Temperature Resistant Stainless Steel Spiral Wire Mesh Conveyor Belt for Bakery Ovens
Customizable High Temperature Resistant Stainless Steel Spiral Wire Mesh Conveyor Belt for Bakery Ovens
Customizable High Temperature Resistant Stainless Steel Spiral Wire Mesh Conveyor Belt for Bakery Ovens
Customizable High Temperature Resistant Stainless Steel Spiral Wire Mesh Conveyor Belt for Bakery Ovens
Customizable High Temperature Resistant Stainless Steel Spiral Wire Mesh Conveyor Belt for Bakery Ovens
Customizable High Temperature Resistant Stainless Steel Spiral Wire Mesh Conveyor Belt for Bakery Ovens
Specifications
Belt width :
200-3500mm
Spiral wire diameter :
1.2 mm
Cross wire diameter :
1.5 mm
Support rod diameter :
5 mm
Spiral pitch :
8 mm
Brand Name :
Bingze
Model Number :
SSCB20230921
Certification :
ISO9001-2015
Place of Origin :
Anping,China
MOQ :
1meter
Price :
20-30 dollars
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
10000meters per week
Delivery Time :
10-15days
Packaging Details :
waterproof paper packing inside, then in the pallet or wooden case
Belt Material :
stainless steel,galvanized steel,carbon steel
Description
Customized Stainless Steel Spiral Wire Mesh Conveyor Belt For Bakery Tunnel Oven
Product Description

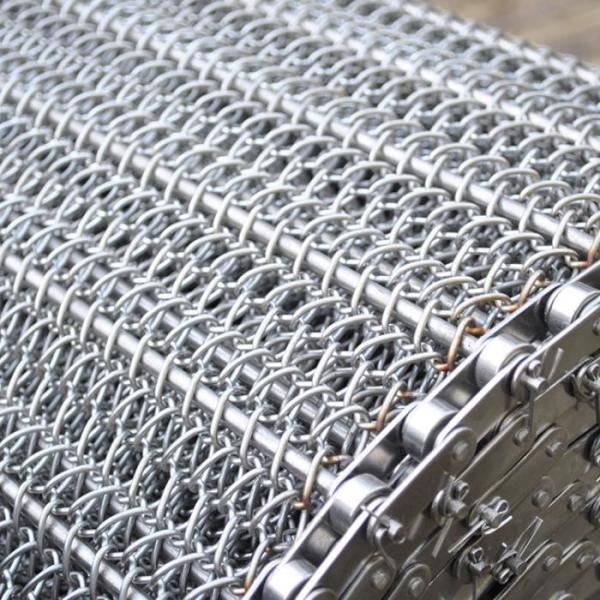

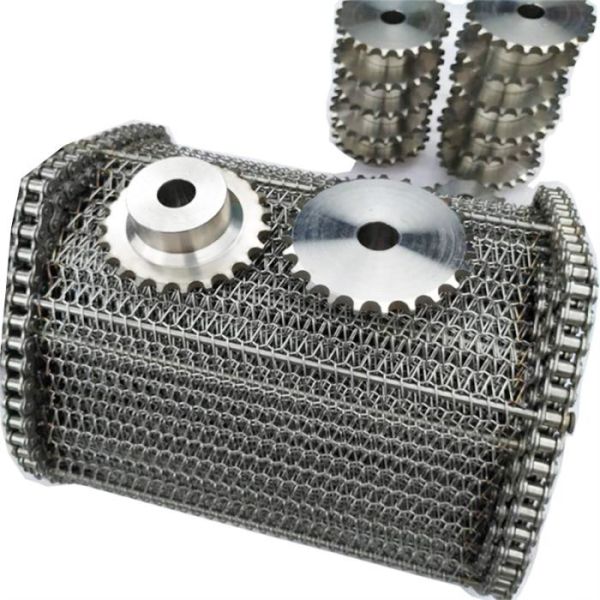

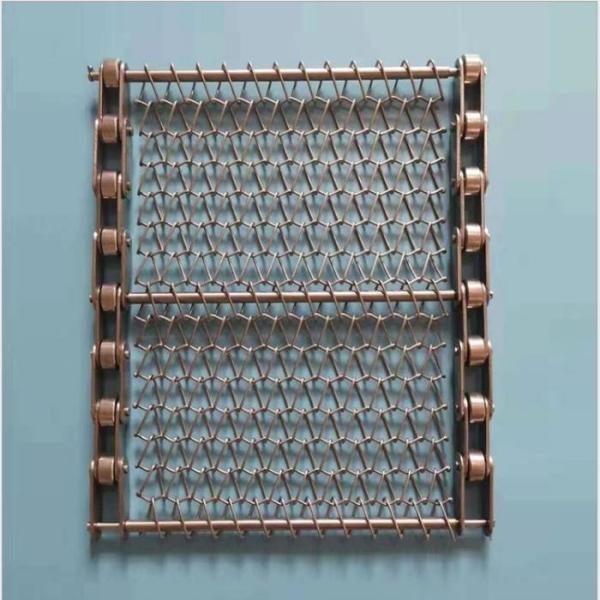

The stainless steel conveyor belt consists of left-handed and right-handed meshes in turn to form a very tight and flat mesh surface, with a straight shaft and a crank shaft respectively.
Straight rod: It is made up of alternating left and right mesh strips connected by a straight string. This series of mesh belts have relatively dense meshes and even mesh spacing, which makes the mesh belt walk smoothly, so it is very suitable for conveying small products, such as screws, nails, bolts and other products with small volume but relatively heavy weight.
Product Specification
Item name wire mesh conveyor belt / chain link mesh conveyor belt / stainless steel conveyor belt
Material stainless steel 304
Width 156 cm
Length 5 m per roll, or customized as per your requirement
Spiral wire diameter 1.2 mm
Cross wire diameter 1.5 mm
Support rod diameter 5 mm
Spiral pitch 8 mm
Cross wire pitch 15 mm
Chain pitch 31.75 mm
The stainless steel conveyor belt can be customized as per your requirement. Please advise the details in the following drawing before making the best offer. If you cannot confirm the details, please send us the loading weight and working temperature, and we will provide you with the available specifications.
Product Features
  • Never rust
  • No or little maintenance
  • Easy to keep clean
  • Beautiful appearance and various color options
  • High durability and flexibility
  • Excellent aesthetic appeal and functionality
  • Color never fading and paint never dropping
  • Gorgeous and chic elegant appearance
Product Applications
  • Fast frozen machine, baking machine, plane conveyor, screw conveyor
  • Cleaning, sterilization, drying, cooking, cooling for food machines
  • Glass machine applications: bottle annealing, roast flower, etc.
  • Various types of pipeline transport
  • Metal processes: powder metallurgy, heat treatment, hardening, sintering, brazing, roasting, brightening, blacking, bearing, carburizing high-temperature
  • Washing machine, winding machine, drying machine, etc.
Product Packaging
PP bag inside, and wooden case outside. Or customized as per your requirement.
Company Profile
Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. It is a manufacturer integrating production, processing, distribution and wholesale. The main products include galvanized welded wire mesh, stainless steel welded wire mesh, PVC welded wire mesh, crimped wire mesh, galvanized woven wire mesh, stainless steel conveyor belt, stainless steel woven wire mesh, chain link fence, steel fence, welded wire mesh fence panels, PVC euro fence, 358 anti-climb fence, razor wire, Hesco Barrier and more.
Since its beginning, we have been working at four points: High Quality, Quick Delivery, Better Price and Thorough Service. Relying on product quality and our credit standing, we have received favorable comments from customers.
The company introduces precise making machines and technics, combining scientific inner managing methods and quality control systems. Since establishment, we have developed our power and credit standing and gained reliance from customers at home and abroad. Our products are checked by very high standards, and qualified ones leave the factory to the whole country and some abroad countries, such as Southeast Asia, Middle East, America, Japan, and some African countries.
Certifications
Customizable High Temperature Resistant Stainless Steel Spiral Wire Mesh Conveyor Belt for Bakery Ovens
Frequently Asked Questions
Q: How long is your delivery time?
Generally it is 3-7 days if the goods are in stock, or 15-20 days if the goods are not in stock, depending on quantity.
Q: Do you provide samples?
Yes, we can provide product samples for your test. Samples are free but freight should be collected by your side.
Q: How can I know the completion of my order?
Deposit payment → start production → transfer info to logistic → book shipment → inform customer ETD & ETA → load container → balance payment → send documents.
Q: How can I know whether you are a reliable company?
We have been in this business line since 1987, with extensive exporting experience. Above listed our certifications.
